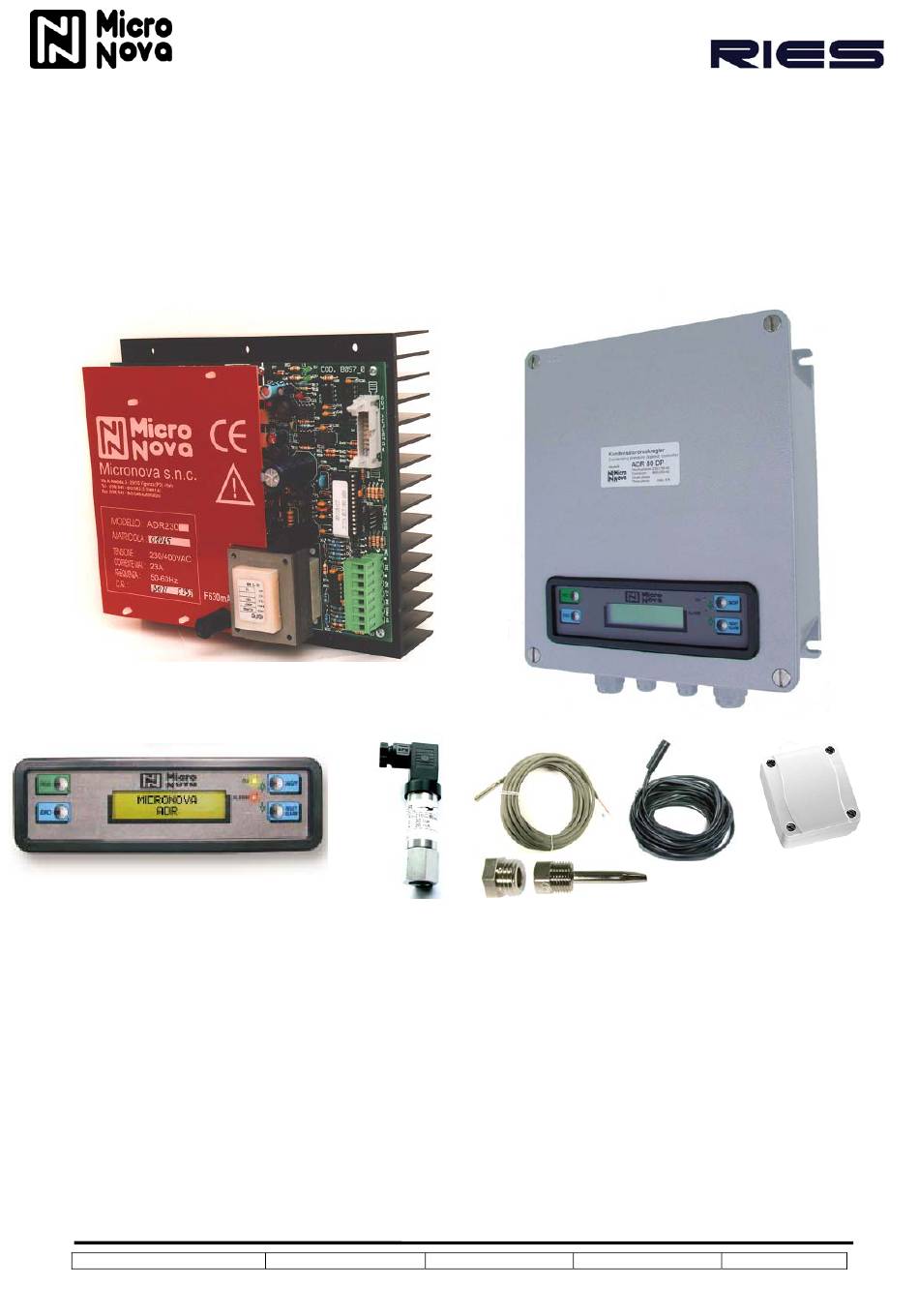

FAN SPEED CONTROL ADR 80 - 230
CONDENSATION
ADJUSTMENT
ADR 230
Display (D-LCD)
FAN SPEED CONTROLLER
Pressure-, Temperature or externally controlled
for three phase and single phase
Induction motors
ADR 80 - 230
SERIES
ADR80230_5.05_eng
SPEED
PMK Transducer
Project: ADR Controller

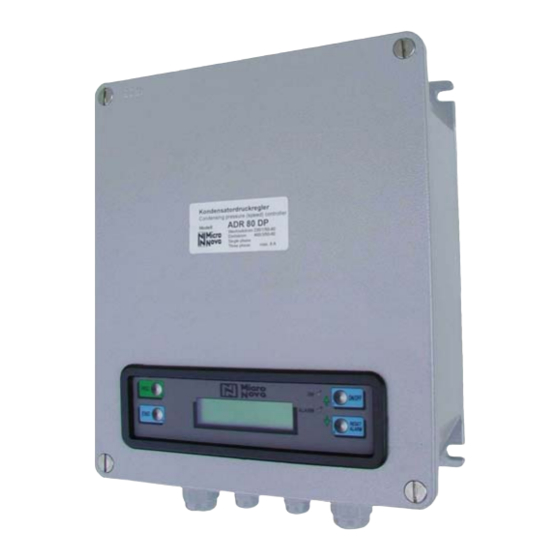

ADR 80 DP
NTC-Sensor
Revision Doc.: 5,0
Date: 29.05.2012
Room/outdoor
Sensor
Page. 1
Advertisement
Table of Contents
Summary of Contents for Ries MicroNova ADR 230 Series
- Page 1 FAN SPEED CONTROL ADR 80 - 230 CONDENSATION SPEED ADJUSTMENT ADR 230 ADR 80 DP Display (D-LCD) PMK Transducer NTC-Sensor Room/outdoor Sensor FAN SPEED CONTROLLER Pressure-, Temperature or externally controlled for three phase and single phase Induction motors ADR 80 - 230 SERIES Revision Doc.: 5,0 ADR80230_5.05_eng...
- Page 2 FAN SPEED CONTROL ADR 80 - 230 INDEX Ref.number Description Page 1. 0 Working specifications 2. 0 Operation and display windows 3. 0 Function of control panel keys Key 1 - ON/OFF Key 2 - Reset of alarms Key 2 – Manual function Key 3 –...
- Page 3 FAN SPEED CONTROL ADR 80 - 230 1.0 ADR REGULATOR – WORKING SPECIFICATIONS The regulator controls one fan, or a group of fans, driven by a 50/60 Hz three-/single-phase motor, via an algo- rithm that adjusts the fan speed in accordance with a set of adjustable parameters and pressure or temperature measurements made in real time by the card.
- Page 4 FAN SPEED CONTROL ADR 80 - 230 Key 3 Function description Remarks and state of the adjustment 1° - only if adjustment is OFF PROG 1° Access at programming of SET parameters Key3 2° - also during the operation of the regulator 2°...
- Page 5 FAN SPEED CONTROL ADR 80 - 230 WORKING IN PRESSURE (window visible only with this selection) Working in PRESSURE allows the control of the condensation, evaporation pressure circuit. Working in the pressure mode requires the input of other SETUP parameters, for a correct match with the characteristics of the plant, from the equipment manufacturer.
- Page 6 FAN SPEED CONTROL ADR 80 - 230 R A N G E R E G U L A T . Defines the proportional range in which the adjust- P R O P B A R ment is made – range between the MIN and MAX regulated voltage.
- Page 7 FAN SPEED CONTROL ADR 80 - 230 Setup Start Prop.- in ADR 10 % 85 % at 12.5 bar at 20.0 Bar 17 bar band 2.5 bar Note: Do not use a small proportional band otherwise you may expect hunting Based on the setup above following control will be in function Band in which you find a definite speed regulation Start...
- Page 8 FAN SPEED CONTROL ADR 80 - 230 6.4.4 Connections and Setup of ADR 80 and 230 with 1 or 2 Sensors ADR 80 / 230 with 1 Sensor • For one circuit • Single or three phase motors • By use of pressure transmitter after setting to a refrigerant Control and Display in bar or °C.
- Page 9 FAN SPEED CONTROL ADR 80 - 230 6.5.1 ADR 80/230 with external Control and 0-10 Volt signal ADR 80/230 0-10 V Externe Ansteuerung SPS • Both jumpers placed to V (Voltage) External Control • Setting in mode”SETUP” “REGULATION” to VOLTAGE by using remote control D-LCD JP1 (IN1) Externe •...
- Page 10 FAN SPEED CONTROL ADR 80 - 230 If the maximum current of a system exceeds the current of ADR 80 or ADR 230 a Master and Slave system can be used as extension to the current required. Here one or two pressure or temperature signals can be connected to the Master and car- ried to the necessary Slaves.
- Page 11 FAN SPEED CONTROL ADR 80 - 230 8.0 Wiring Diagram ADR 80/230 with pressure Transducer PMK 9.0 Display 9.1 Display if ADR is in OFF – position R E G U L A T O R A D R R E A D Y 9.2 Display if ADR is working P 1 >...
- Page 12 FAN SPEED CONTROL ADR 80 - 230 10.0 SCHEMATIC WORKING DIAGRAM OF ADR REGULATOR Working principle of the device (in pressure or temperature) In hand of the temperatures or the pressures and the supply voltage of fan, the graph can be divided into 5 sectors. Sector 1: Temperature or Pressure before Start =>...
- Page 13 FAN SPEED CONTROL ADR 80 - 230 11.1 ADR 80 – Wiring diagram 11.2 ADR 230 Wiring diagram 230 VAC 400 VAC Max. 8 A ADR 230 230VAC 400VAC ADR 80 Max. 23A Max. 23A T 400 VAC ADR 230 230 VAC ADR 80 12.0 Dimensions of ADR in Aluminium Box IP 55 (mm)
- Page 14 FAN SPEED CONTROL ADR 80 - 230 13.1 What you should know by rating and designing a speed controller To be watched Reason To do Higher current in part load operation In part load operation in relation to Ask Motor Manufuturer for current when used with TRIAC control. the used fan motor higher currents If not possible calculate about 20 % as security on top of the current written on the will be measured.
- Page 15 FAN SPEED CONTROL ADR 80 - 230 15.1 ADR EX Remote Control (Accessories) When using the additional ADR EX board CONFIGURATION SERIAL PORT: I/O O or of the serial port in the set up of the ADR board I/O C from 2400 or 9600 Baud to I/O O or I/O C The ADREX-board (order no.
- Page 16 FAN SPEED CONTROL ADR 80 - 230 Revision Doc.:5,0 ADR80230_5.04_eng Project: ADR Regulator Date: 29.05.2009 Page. 16...
- Page 17 FAN SPEED CONTROL ADR 80 - 230 Revision Doc.:5,0 ADR80230_5.04_eng Project: ADR Regulator Date: 29.05.2009 Page. 17...
