1. INTRODUCTION
Module Kits 1933668–[ ], 1933671–[ ] (shown in
Figure 1) and 1933674–[ ] are designed to house and
protect connections for copper and fiber optic
applications. The module kits accept any combination
of AMP–TWIST* modular jacks, SL series modular
jacks, copper and fiber optic multi–media inserts, and
LC and MT–RJ outlet jacks.
Refer to AMP NETCONNECT Catalog 82164 for
NOTE
a list of specific compatible jacks and inserts.
i
All numerical values in this instruction sheet are
NOTE
in metric units [with U.S. customary units in
brackets]. Dimensions are in millimeters [and
i
inches]. Figures are not drawn to scale.
AMP NETCONNECT logo is a trademark of Tyco Electronics.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
AMP NETCONNECT* Surface Mount
Module Kits 1933668-[ ] (2-Port),
1933671-[ ] (4-Port), and 1933674-[ ] (6-Port)
Cover
Mounting Screw
Cover
Port (4 Places,
Ref)
Cover Lock
(4 Places)

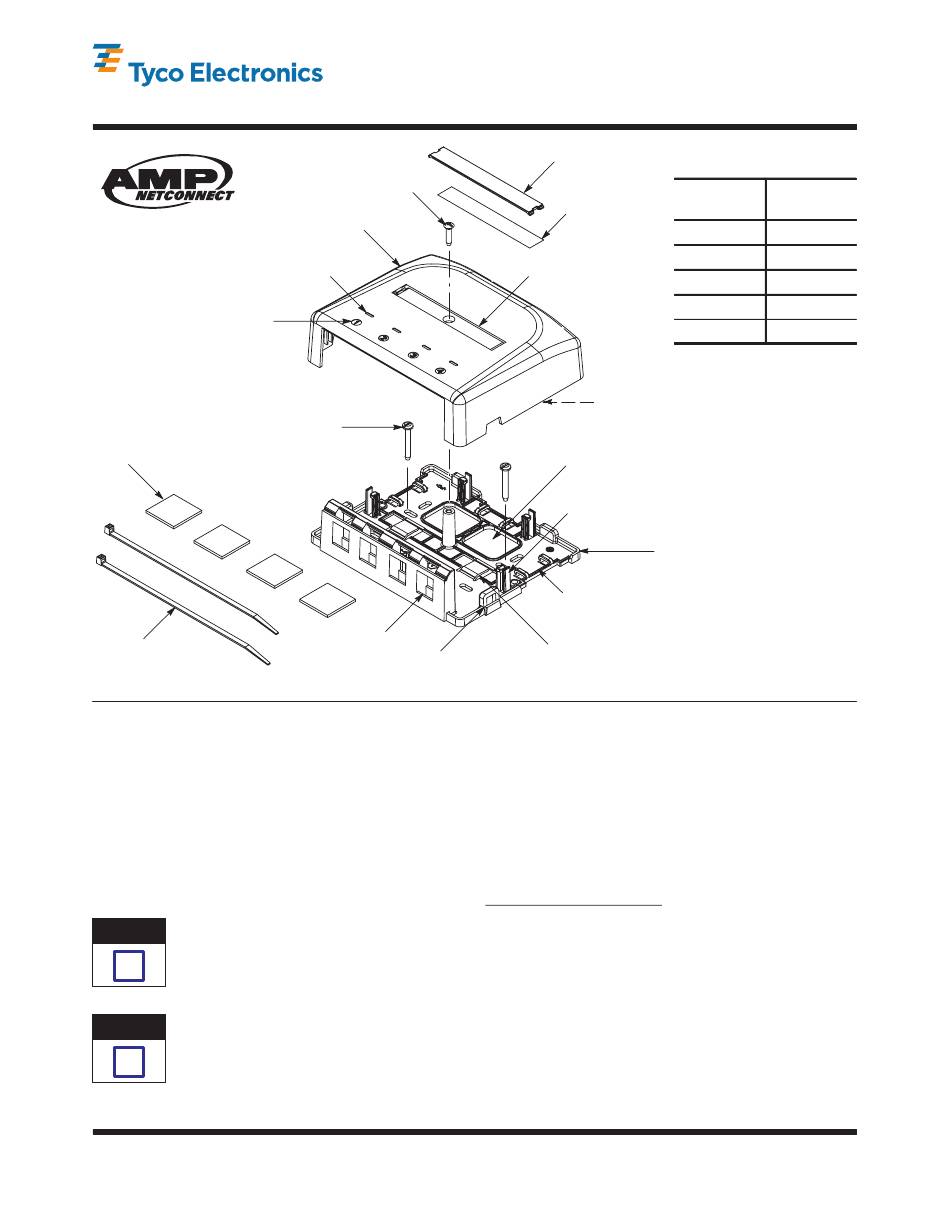

Figure 1
All module kits can be mounted to a flat surface; the
4– and 6–port module kits will also fit standard single–
and double–gang NEMA electrical boxes and face
plates having a hole spacing of 120.6 [4.75].
To obtain information on AMP NETCONNECT
products, call PRODUCT INFORMATION at the
number at the bottom of this page, or visit the
AMP NETCONNECT website at
www.ampnetconnect.com.
2. DESCRIPTION
Each module kit consists of a module base with
2 self–tapping mounting screws, a cover with a
mounting screw, adhesive foam tape, an identification
label and label cover, and cable ties.
The module base features a through–wall cable
entrance, raceway cable entrances with cable tie
downs, and fiber optic cable guides to facilitate cable
NEMA is a trademark of National Electrical Manufacturers Association Corporation.
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
4-Port Module Kit Shown
Label Cover
Identification
KIT DASH
NUMBER
Label
1-
1-
Label Holder
1-
1-
1-
Break-Out (3 Places)
Through-Wall
Cable Entrance
Fiber Optic Cable Guide
(5 Places)
Module Base
Raceway Cable Entrance with
Cable Tie Downs (3 Places)
Magnet Holder
(2 Places, Ref)
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-10289
01 APR 09
Rev A
MODULE
COLOR
-1
Light Almond
-2
Black
-3
White
-4
Grey
-1
Electric Ivory
1 of 4
LOC B
