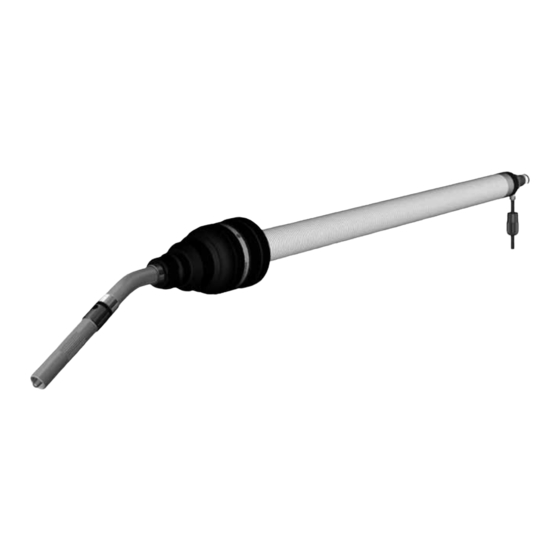

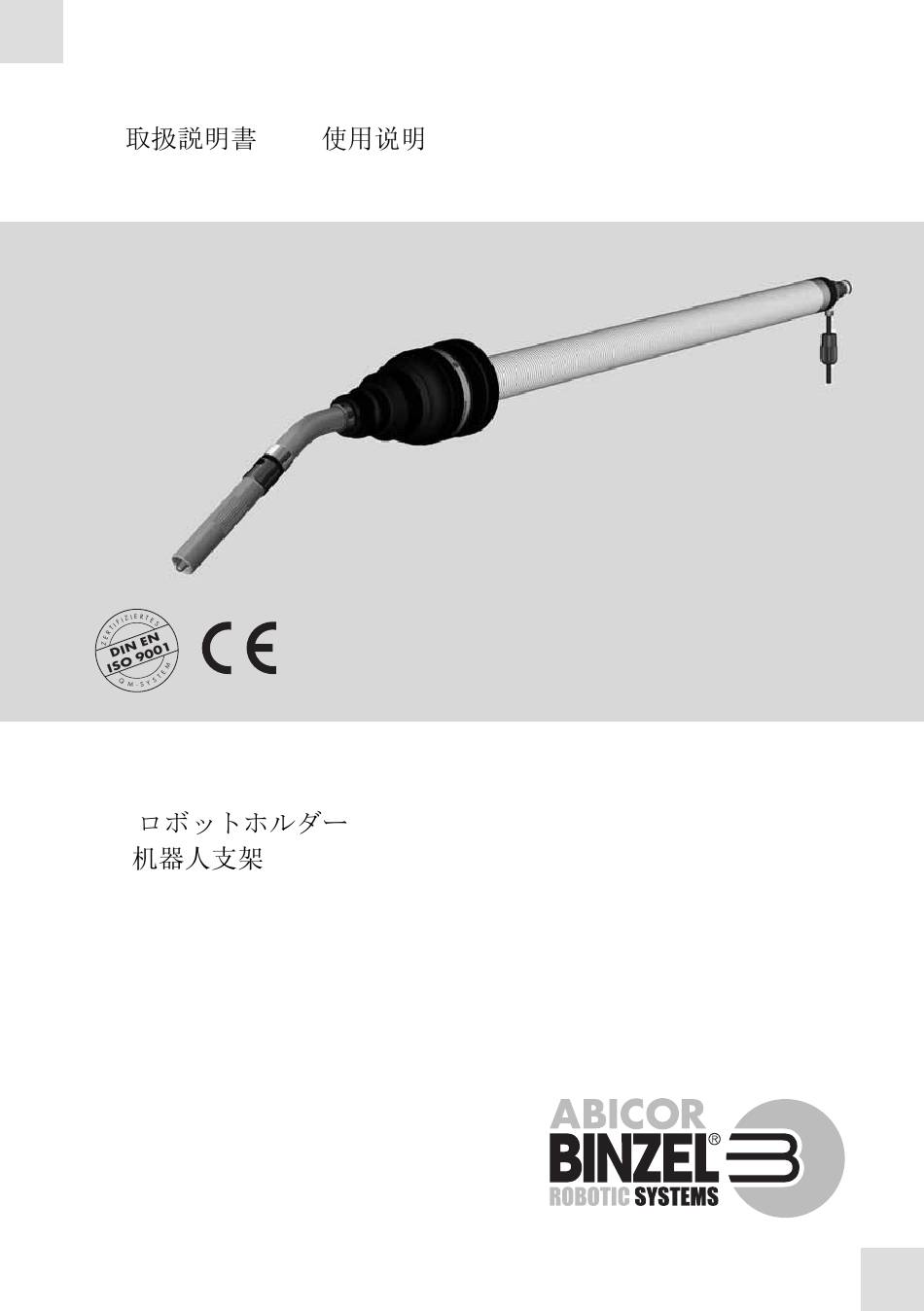

T E C H N O L O G Y F O R T H E W E L D E R ´ S W O R L D . DE Betriebsanleitung / EN Operating instructions / ZH DE Roboterhalterung iCAT mini ABIROB G EN iCAT mini ABIROB G robot mount iCAT mini ABIROB G iCAT mini ABIROB G www.binzel-abicor.com...
1 Identifikation 1 Identifikation Die Roboterhalterung iCAT mini wird in der Industrie und im Gewerbe zur Verbindung zwischen Brennerhals und Roboter mit zentraler Medien- durchführung eingesetzt. Diese Betriebsanleitung beschreibt nur die Roboterhalterung iCAT mini. Die Roboterhalterung darf nur mit Original ABICOR BINZEL Ersatzteilen betrieben werden.
2 Sicherheit Beachten Sie das beiliegende Dokument Sicherheitshinweise. 2.1 Bestimmungsgemäße Verwendung Die iCAT mini ist ein Kollisionsschutz- und Abschaltvorrichtung für das Roboter-Lichtbogenschweißen. Sie darf nur mit einem für das Lichtbogenschweißen zugelassenen Schweißroboter betrieben werden. Eine andere Verwendung ist ohne Zustimmung des Herstellers nicht zulässig.
2 Sicherheit iCAT mini • Sorgen Sie für eine gute Beleuchtung des Arbeitsbereiches und halten Sie den Arbeitsbereich sauber. Beachten Sie insbesondere folgende Normen und Richtlinien: • 89/391/EWG: Durchführung von Maßnahmen zur Verbesserung der Sicherheit und des Gesundheitsschutzes der Arbeitnehmer bei der Arbeit.
4 - 8 mm Max. Auslenkung Z Achse ± 0,1 mm Rückstellgenauigkeit Allgemeine Daten Tab. 1 ohne Brenner 1,2 kg iCAT mini Gewicht iCAT mini Tab. 2 Spannungsart 24 V Scheitelwert Spannungsbemessung max. 100 mA Belastung Mikroschalter Tab. 3 ca. 1,5°...
Page 8
0,8 - 1,2 ca. 20 ABIROB G350 Produktspezifische Brennerdaten (EN 60 974-7) in Verbindung mit iCAT mini Tab. 7 1Die Belastungsdaten reduzieren sich bei Impulslichtbogen bis zu 35% Belastungsdaten wurden unter normalen Bedingungen, bei geringer bis mittlerer Rückstrahlwärme, freier Luftzirkulation und ca. 28°C Umgebungstemperatur ermittelt.
Lieferumfang iCAT mini Tab. 9 Ausrüst- und Verschleißteile separat bestellen. Bestelldaten und Identnummern der Ausrüst- und Verschleißteile entnehmen Sie den aktuellen ABICOR BINZEL Ersatz- und Verschleißteillisten. Kontakt für Beratung und Bestellung finden Sie im Internet unter www.binzel-abicor.com. 3.1 Transport Der Lieferumfang wird vor dem Versand sorgfältig geprüft und verpackt, jedoch sind Beschädigungen während des Transportes nicht auszuschließen.
Schweißbrennern. Die Halterung wird mit Zylinderkopfschrauben und einem Roboterflansch am Roboter befestigt. Im Falle einer Kollision kann die iCAT mini bis zu 11° in Richtung X und Y ausgelenkt werden. Dadurch können Schäden an Brenner, Peripherie und Roboter vermindert werden.
• Der Zylinderstift (6) gibt die Referenzposition zum Roboter vor. 2 Den Dichtring der iCAT mini montieren. Dichtring montieren Abb. 7 3 iCAT mini (1) mit acht Zylinderschrauben DIN 912 M4 x 12 (2) max. Anzugsdrehmoment M = 4 Nm an Roboterflansch (5) schrauben. DE - 12...
1 Steckverschraubung (5) demontieren, falls bereits montiert. 2 Schlauchpaket in Montagerichtung montieren. 3 Schlauchpaket mit sieben Schrauben DIN912 M4 x 20 (1) an der iCAT mini montieren. Max. Anzugsmoment 4 Nm. 4 Steckverschraubung ø 6 mit Hilfe der Einschraubhilfe SW 11 (6) festschrauben.
5 Inbetriebnahme iCAT mini 5 Schutzgasschlauch (7) einstecken und mit der Schutzgasversorgung verbinden. HINWEIS • Der Schweißstromanschluss muss mit dem Drahtvorschub verbunden sein. Betriebsanleitung Drahtvorschub. ® 5.4 ABIROB G350 Brennerhals befestigen Brennerschutzkappe Schweißbrenner Schnittstelle Zylinderkopfschraube DIN 912 ® G350 Brennerhals...
5 Drahtführung bis Anschlag in das Schlauchpaket einführen und mit Gewindestift ISO 4027 M4 x 5 (3) sichern. 6 Betrieb Da die iCAT mini im Schweißprozess des Schweißbrenners eingebunden ist, erfolgen die Bedienschritte nach der Inbetriebnahme des jeweiligen Brenners und der verwendeten Schweißstromquelle. Beachten Sie hierzu die Betriebsanleitungen des entsprechenden Schweißbrenners.
8 Wartung und Reinigung iCAT mini 8 Wartung und Reinigung Regelmäßige und dauerhafte Wartung und Reinigung sind Voraussetzung für eine lange Lebensdauer und eine einwandfreie Funktion. GEFAHR Verletzungsgefahr durch unerwarteten Anlauf Für die gesamte Dauer von Wartungs-, Instandhaltungs-, Demontage- und Reparaturarbeiten ist folgendes zu beachten: •...
Schutzkappe Faltenbalg iCAT mini ohne Faltenbalg und Schutzkappe Reinigung Abb. 11 Wir empfehlen, die iCAT mini vierteljährlich zu reinigen. 1 Schutzkappe abziehen. 2 Faltenbalg über den Brennerhals abziehen. 3 Freiliegende Teile mit Druckluft ausblasen. 4 Faltenbalg und Gummikappe wieder montieren.
Page 18
• Steckverbinder brennerseitig und Drahtvorschubseite prüfen Schlauchpaket lässt sich • Steckanschluss und Gasschlauch • Steckanschluss und Gasschlauch noch montiert demontieren nicht in iCAT mini einführen • Schlauchpaketflansch nicht korrekt • Auf Ausrichtung achten auf Auslöseflansch montiert () Ungenaue • Schmutzablagerungen im Gehäuse •...
10 Demontage 10 Demontage Die Demontage darf nur vom Fachhändler durchgeführt werden. Achten Sie darauf, dass vor Beginn der Demontagearbeiten die Abschaltprozeduren unbedingt eingehalten werden. Beachten Sie dabei auch die im Schweißsystem eingebundenen Komponenten. GEFAHR Verletzungsgefahr durch unerwarteten Anlauf Für die gesamte Dauer von Wartungs-, Instandhaltungs-, Demontage- und...
3 Brennerhals lösen und entfernen. 6 Betrieb auf Seite DE-15 4 iCAT mini (1) von Roboter (4) demontieren. 5.2 iCAT mini am Roboter befestigen auf Seite DE-12 11 Entsorgung Bei der Entsorgung sind die örtlichen Bestimmungen, Gesetze, Vorschriften, Normen und Richtlinien zu beachten.
Page 22
EN-10 Storage EN-11 EN-11 Functional description EN-11 Putting into operation Maintenance position of the robot EN-11 Mounting the iCAT mini on the robot EN-12 Mounting the welding torch system on the robot EN-13 ® Fastening the ABIROB G350 torch neck...
1 Identification 1 Identification The iCAT mini robot mount is used in industry and the trade for connecting the torch neck to the robot equipped with central media guidance. These operating instructions describe the robot support iCAT mini only. The robot mount is only allowed to be operated with original ABICOR BINZEL replacement parts.
Observe the attached safety instructions. 2.1 Designated use The iCAT mini is a collision protection and switch-off device for robot arc welding. It may only be operated together with a welding robot authorized for arc welding. Any other use is not allowed without the approval of the manufacturer.
2 Safety iCAT mini • Ensure good lighting of the work area and keep the work area clean. Observe in particular the following standards and guidelines: • 89/391/EEC: Implementation of measures for improving safety and health requirements for workers at work.
Max. deflection Z axis ± 0.1 mm Reset precision General data Tab. 1 without torch 1.2 kg iCAT mini Weight iCAT mini Tab. 2 Type of voltage Peak value of 24 V Voltage rating max. 100 mA Load Micro switch Tab.
Page 28
20 ABIROB G350 Product-specific torch data (EN 60 974-7) in connection with iCAT mini Tab. 7 1For pulse arcs, the load data are reduced by up to 35%. The load data were determined under standard conditions, at low to medium heat of reflection, free air circulation and an ambient temperature of approx.
2 Safety 2.6 Abbreviations ® ABIROB G350 Automatic welding torch, air-cooled Abbreviations Tab. 8 2.7 Nameplate Type of device Bellows Serial number Article number Nameplate Fig. 3 When making any inquiries, note the following information: • Device type, serial number, production date, certificate of conformity 2.8 Signs and symbols used...
Order the equipment parts and wear parts separately. Order data and ID numbers for the equipment parts and wear parts can be found in the ABICOR BINZEL spare and wear parts lists. The contact for consulting and ordering can be found in the Internet at www.binzel-abicor.com.
The mount is fastened to the robot by means of cylinder head screws and a robot flange. In case of a collision, the iCAT mini can be deflected by up to 11° in X and Y direction. This reduces the risk of damaging the torch, the peripheral equipment or the robot.
Mounting the iCAT mini on the robot Fig. 6 NOTICE • For mounting the iCAT mini to the robot, you need a robot flange (5). The flange version depends on the welding robot used. On demand you will receive more information on the available robot flanges.
5 Putting into operation 3 Mount the iCAT mini (1) to the robot flange (2) using eight cylinder head screws DIN 912 M4 x 12 (5), max. tightening torque M = 4 Nm. NOTICE • The cylinder bolt (6) specifies the reference position, relative to the robot.
5 Putting into operation iCAT mini 5 Insert the shielding gas hose (7) and connect it to the shielding gas supply. NOTICE • The welding current connection must be connected to the wire feeder. Operating instructions of wire feeder.
ISO 4027 M4 x 5(3). 6 Operation Since the iCAT mini are included in the welding process of the welding torch, the operating steps are performed after the respective torch and the welding power source has been put into operation. Please observe the operating instructions of the respective welding torch.
8 Maintenance and cleaning iCAT mini 8 Maintenance and cleaning Scheduled maintenance and cleaning is a prerequisite for a long life and a trouble-free operation. DANGER Risk of injury due to unexpected start-up For the entire duration of maintenance, servicing, dismounting and repair work, the following instructions must be adhered to: •...
Cleaning Fig. 11 We recommend to clean the iCAT mini every three months. 1 Remove the protection cap. 2 Remove the bellows by pulling it over the torch neck. 3 Clean the accessible parts using compressed air.
Page 38
() Inexact torch reset • Dirt deposits in the housing • Remove dirt deposits, clean housing • iCAT mini damaged • Verification by qualified personnel Gas loss • O-ring seal on the liner nipple • Replace the O-ring seal damaged •...
Page 39
10 Disassembly 10 Disassembly Dismounting may only be carried out by specialized personnel. Please make sure that the shut-down procedures are strictly observed before the dismounting is started. Make sure to include also the components integrated into the welding system.
Page 40
3 Disconnect the torch neck and remove it. 6 Operation on page EN-15 4 Remove iCAT mini (1) from robot(4). 5.2 Mounting the iCAT mini on the robot on page EN-12 11 Disposal For disposal, observe the local regulations, laws, provisions, standards and guidelines.
Page 70
M4 x 12 M4 x 20 • • iCAT mini • • 16 M4 x 12 • • 7 M4 x 20 iCAT mini ABICOR BINZEL www.binzel-abicor.com. ZH-7 ZH - 10...
Page 71
11° • • • iCAT mini (A4) (A6) (A5) iCAT mini u • 4. • 5. • 6. ZH - 11...
Page 72
5.2 iCAT mini iCAT mini DIN 912 M4 DIN 912 M4 iCAT mini • iCAT mini DINDIN 912 M4 x 12 (4) M = 4 Nm Nm • iCAT mini DIN 912 M4 x 12 (2) iCAT mini (1)
Page 73
• • • DIN 912 M4 x 20 SW 11 ø 6 ø 6 / G1/8“ iCAT mini DIN912 M4 x 20 (1) iCAT mini 4 Nm. ø 6 SW 1 (6) • ZH - 13...
Page 74
® 5.4 ABIROB G350 DIN 912 M 5x 16 ® iCAT mini G350 ABIROB ® ABIROB ® G350 ABIROB BEI.0073 ® G350 ABIROB (SW4) M 6Nm • ZH - 14...
Page 75
ISO 4027 - M4 x 5 • • • a (2) ISO 4027 M4 x 5 (3) iCAT mini ZH - 15...
Page 76
• • • • • • • TRBS 1203 • iCAT mini iCAT mini ZH - 16...
Page 80
T E C H N O L O G Y F O R T H E W E L D E R ´ S W O R L D . Alexander Binzel Schweisstechnik GmbH & Co. KG Postfach 10 01 53 • D–35331 Giessen Tel.: ++49 (0) 64 08 / 59–0 Fax:...
