Ritter Camplifier Series Operation Manual

Mains voltage selector switch

Hide thumbs

Operation manual for the Camplifier`s mains voltage selector switch

Thank you for purchasing your Camplifier add on amplifier module for the Kemper Profiling

Amplifier.

Your Camplifier comes with a mains voltage selector switch which will enable you to use

the Camplifier world wide.

Different countries have different mains voltage standards.

For example, all European countries will have a mains supply of 220-240V @ 50Hz,

whereas the United States of America will provide 120V @ 60Hz.

To use your Camplifier in a 120V country, for example, you need to select the appropriate

mains input voltage at the Camplifier`s voltage selector switch.

power switch

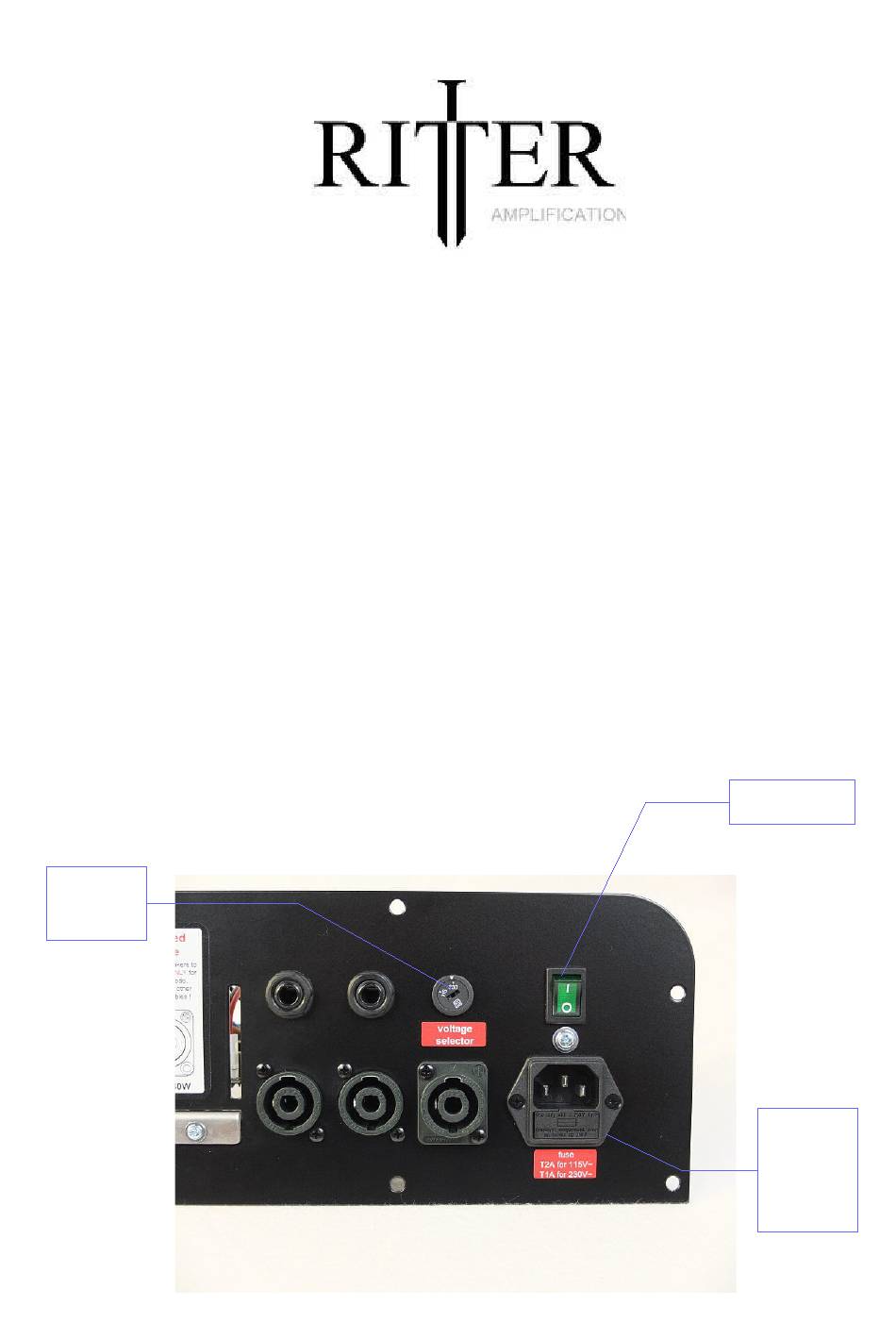

Overview :

voltage

selector

switch

mains

input

socket

with fuse

holder

Table of Contents

Need help?

Do you have a question about the Camplifier Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ritter Camplifier Series

Page 1 Operation manual for the Camplifier`s mains voltage selector switch Thank you for purchasing your Camplifier add on amplifier module for the Kemper Profiling Amplifier. Your Camplifier comes with a mains voltage selector switch which will enable you to use the Camplifier world wide. Different countries have different mains voltage standards.
Page 2 Mains voltage selection procedure 1. Please inform yourself about the mains voltage standard of the country your are in before connecting the Camplifier with a power cord to a mains supply socket. There are basically two groups of mains supply standards in the world. One group could be named “115V”...
Page 3 2. Disconnect the power cord from the Camplifiers mains input socket ! 3. Switch OFF the power switch to its “0” position. 4. Turn the voltage selector switch to the required mains input voltage. Use a flat screw driver for that. 5.
Page 4 You will then see two 5x20mm fuses. The fuse closer to the socket is the active fuse. The fuse at the outside of the fuse holder is a spare fuse. active fuse ! spare fuse The Camplifier will come with the correct fuse inserted in the active position according to the mains input voltage selection your Camplifier comes with.
Page 5 The 2AT fuse will be marked with a red dot on both sides of the fuse body : This makes it easy for you to identify the 2AT fuse. Put the appropriate fuse into the active position !!! Mains voltage Fuse value 115V 2AT (slow blow)
Page 6 ATTENTION : Switching the mains input voltage switch to the wrong position (to 115V in 230V Germany, for example) will DAMAGE or even DESTROY the Camplifier ! Choosing the wrong fuse value will lead to blown fuses or will damage the Camplifier. If you have any questions about voltage selection or fuse value selection, please contact our support at : info@ritteramps.de...
