Summary of Contents for Eurotronic 700087

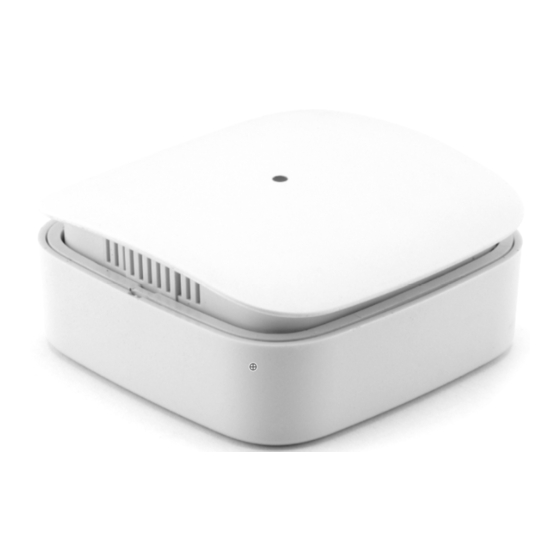

- Page 1 Temperature & Humidity Sensor Z-Wave Plus Installation & Operation Guide Made in Germany www.eurotronic.org...
-
Page 2: Table Of Contents
Content Included in delivery Association Safety Instructions Battery Intended Use Configuration Product description Multilevel Sensor Operating the device Wake Up Button LEDs Troubleshooting Network behavior Cleaning Commissioning Technical specifications Recommended mounting locations Mounting Disposal Inserting batteries Add to a Z-Wave network (Inclusion) Warranty Remove from a Z-Wave network (Exclusion) 10 Factory reset... -
Page 3: Included In Delivery
1. Included in delivery 1 x Temperature & Humidity Sensor Z-Wave Plus 2 x Sticky tape 2 x AAA Batteries 1 x Quick Start Manual NOTE! The following figures are for illustration purposes only and may differ from the actual product. Temperature &... -
Page 4: Safety Instructions
2. Safety Instructions Avoid potential dangers by reading the following safety instructions carefully. SAFETY INSTRUCTIONS - Temperature & Humidity Sensor Z-Wave Plus is designed for use in buildings. - Operate Temperature & Humidity Sensor Z-Wave Plus only as described in the user manual. - Temperature &... -
Page 5: Intended Use
3. Intended use The product is suitable for the measurement of temperature and humidity changes and can be used for the evaluation of the dew point (as a mold detector in apartments). For reasons of safety and approval (CE), you must not modify and/or alter the product. If you use the prod- uct for purposes other than those described, the product may be damaged. -
Page 6: Operating The Device
5. Operating the device Button Button Interaction Result / Behavior Network Press once Temperature & Humidity Sensor Z-Wave Plus will send a Wake Up Notification to the Z-Wave Controller. Network press three times within Temperature & Humidity Sensor Z-Wave Plus will react to inclusion or exclusion 1 second commands. -
Page 7: Network Behavior
6. Network behavior On factory default the device does not belong Communication to a Sleeping device (Wakeup) to any Z-Wave network Temperature & Humidity This device is battery operated and turned into Sensor Z-Wave Plus needs to be added to an deep sleep state most of the time to save battery existing wireless network to communicate with life time. -
Page 8: Commissioning
7. Commissioning Recommended mounting locations Attach your Temperature & Humidity Sensor Z-Wave Plus to the wall. The optimum installation height is 1.50 m above the ground. Do not install the Temperature & Humidity Sensor Z-Wave Plus: • on exterior walls. •... -
Page 9: Inserting Batteries
Inserting batteries 1. Open the device. 2. Insert the batteries. Pay attention to the correct polarity! 3. Close the device again. – 9 –... -
Page 10: Add To A Z-Wave Network (Inclusion)
Add Temperature & Humidity Sensor Z-Wave Plus to a Z-Wave network (Inclusion) Start inclusion mode of your primary Z-Wave Controller. Press the network button three times within 1 second. While the inclusion is active, the LED is blinking green. If the inclusion was successful the green LED will light up for 5 seconds. -
Page 11: Z-Wave
8. Z-Wave Command Class Description Version Control (C) Security * Support (S) Association Allows to associate with other Z-Wave devices. U, S0, S2 Association Allows to group associations. U, S0, S2 Group Information Battery Provides information about battery status. U, S0, S2 Configuration Allows to configure the device settings. -
Page 12: Association
9. Association Temperature & Humidity Sensor Z-Wave Plus can be associated with other devices. Group No. Description Commands Max supported Nodes Lifeline DEVICE_RESET_LOCALLY_NOTIFICATION, BATTERY_REPORT, SENSOR_MULTILEVEL_REPORT, Temperature SENSOR_MULTILEVEL_REPORT 10. Battery Temperature & Humidity Sensor Z-Wave Plus battery level can be requested. Max value 100% Max value... -
Page 13: Multilevel Sensor
12. Multilevel Sensor Temperature & Humidity Sensor Z-Wave Plus measures the room temperature and automatically reports sen- sor readings to associated devices. Per default the reporting threshold is ±0.5°C. This parameter can be altered via configuration command class. Sensor type: „Air Temperature“... -
Page 14: Troubleshooting
Sensor Z-Wave Plus Dimensions (W x H x D) 56 x 56 x 24 mm 42 600 127 112 57 Weight 53,3g (incl. batteries) Article Number 700087 Degree of protection IP20 Supply Voltage 2 x 1,5V LR03/Micro/AAA Degree of pollution Radio Frequency... -
Page 15: Disposal
Declaration of conformity: Hereby, Eurotronic Technology GmbH declares that the Temperature & Humidity Sensor Z-Wave Plus is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://eurotronic.org/service/downloads/.
