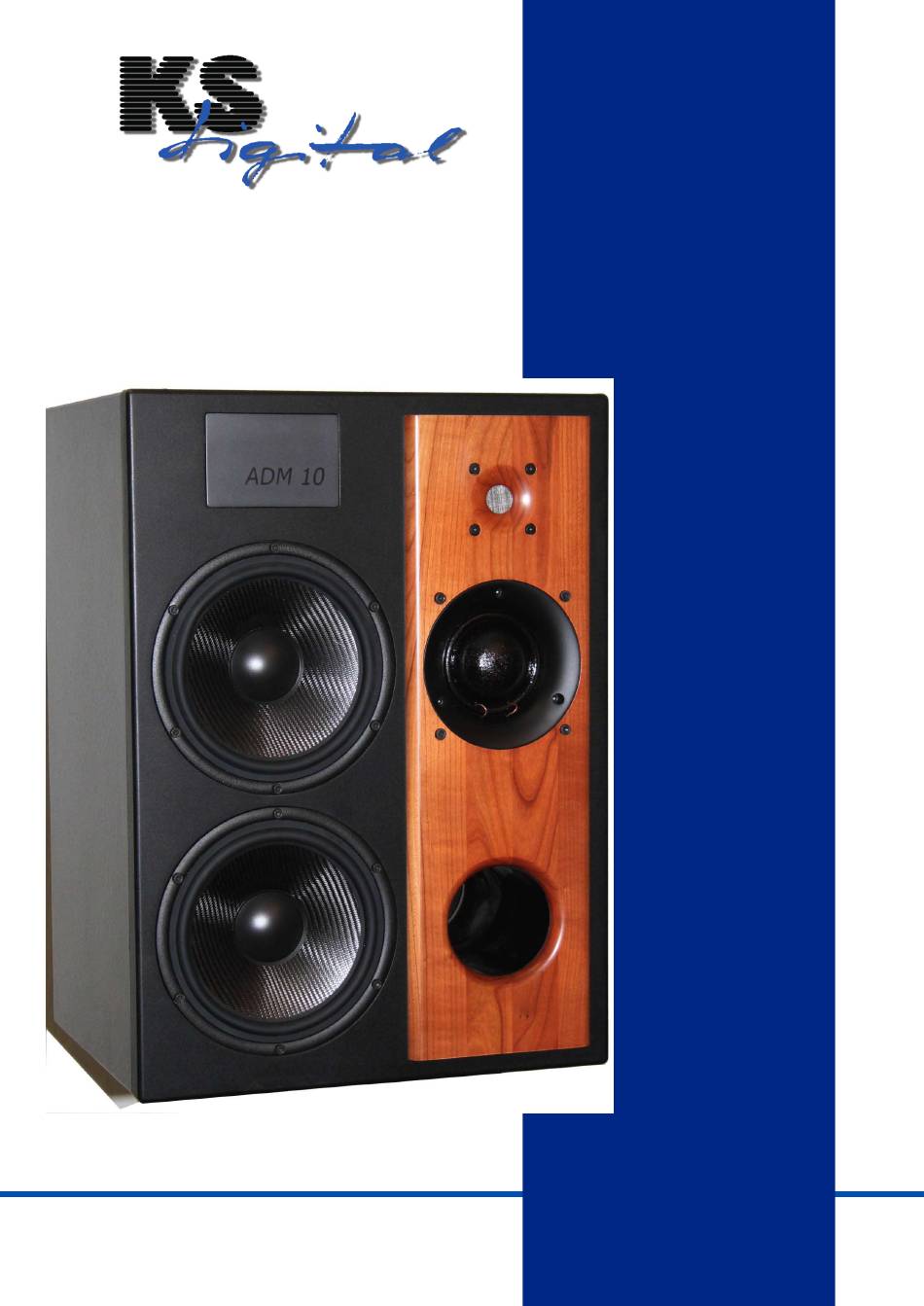

- Page 1 Manual KSdigital active Reference Monitor with FIRTEC(TM) control ADM 10 KSdigital GmbH | Kossmannstr. 38a | 66571 Eppelborn fon: +49 6881 9364000 | fax: +49 6881 8808527 info@ksdigital.de | www.ksdigital.de...
- Page 2 KSdigital Referencemonitor Safety Instructions 1. Important, read all instructions – You should read all information concerning safety and operation before you use these speakers. 2.Please keep this manual – You may need it in the future. 3. Important, observe the warnings – All warnings on these speakers and in this manual should be observed by you in the interests of your own safety.
- Page 3 KEY FEATURES OF THE ADM PRODUCT FAMILY All products of the ADM family are compatible with each other. In this way it is possible to combine the ADM 20 or ADM 30 with the ADM 10 or operate them together in a 5.1 Surround setup.

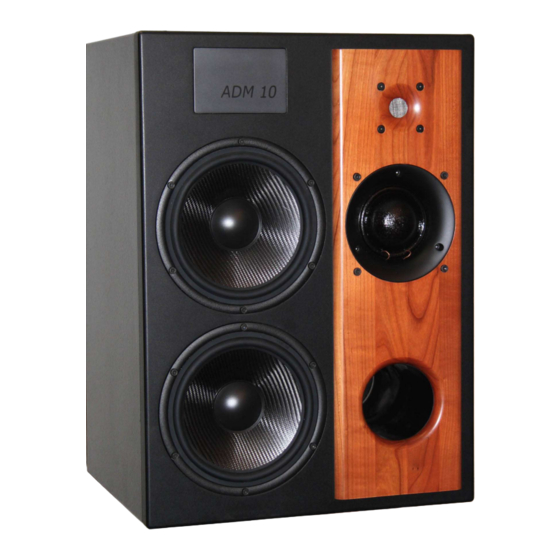

- Page 4 ADM 10 THE REFERENCE CREATED BY DIGITAL PRECISION The ADM 10 is an active, two-way studio monitor for medium to high volume levels. The signal processing, including equalization, crossover and correction of the transient behaviour of the components, is completely done at the digital level.
-
Page 5: Digital Connections
KSdigital Referencemonitor DIGITAL CONNECTIONS The ADM10 utilizes different left and right loudspeaker cabinets. The differentiation is simple choice in menu. The different geometry is due to the optimisation of base-length. For digital connection first you have to choise in speaker menu : "DIGITAL IN R" on "ACTIVE"... - Page 6 KSdigital Referencemonitor technical details: analog IN, OUT: XLR-balanced, active DSP-controlled analogue Output +4dbV digital IN, OUT: AES3 format , 32 –'96 110 KHz, AD / DA: 27 Bit Gainstaging SigmaDelta, 64fach Oversampling XLR-balanced, active AES-Out thrupass DSP: HD-SharcProcessor-32 Bit floating point with 1500 dB dynamic...
- Page 7 KSdigital Referencemonitor Function range of values in paramter menu: Volume: Total volume 0dB … -31dB Filter 1: Frequency X/26 Frequency band of Filter 1 27 frequency bands Gain Relative level of the correction filter +6dB …'85 -6dB Q-Factor Frequency bandwidth 0.1,…'85, 5.0...
- Page 8 KSdigital Referencemonitor Amplitue Response ADM10 Phasenresponse ADM10...
- Page 9 KSdigital Referencemonitor FIR-Control: optionale software for remote control: volume, filter parameter, delay a.so. can be adjust by software control for easy room correction...
- Page 10 KSdigital Referencemonitor The best speaker setup – guidelines for best setup For perfect stereo presentation, speaker setups should observe the following: 1. Setup of an isosceles triangle by speaker and listener, the stereo triangle. 2. Symmetrical acoustic ratio for the first reflection 3.
- Page 11 KSdigital Referencemonitor Ad 4. If the rear and side walls (behind or at the side of the speaker) are not indefinitely far away (over 5m), their effect must be considered. The physical basis of these considerations is wavelength. If 2 waves of the same wavelength are added with the same phase, the result will be louder by 6 dB;...
