Deltronic Labs DL-480 Owner's Manual

Adjusting ticket dispenser
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

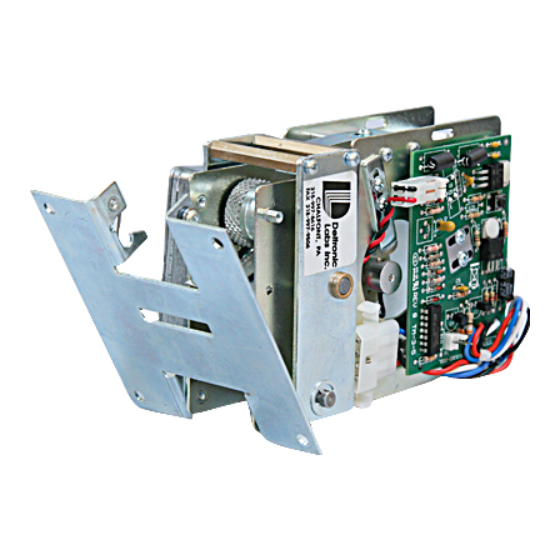

The DL-480 is a versatile ticket dispenser. It has both a 4 wire DL-1275 style input and a 6 pin DL-4 style
input. Each input can be independently configured to adjust the ticket payout. The inputs can be
configured to either multiply or divide the payout by a set factor, or to give a fixed quantity of tickets
instead of the normal payout.
Pins 3 and 4 of the DL-4 input can be connected to a coin switch to dispense "mercy tickets" while also
using the DL-1275 input to dispense earned tickets.
The DL-480 inputs and outputs can also be individually configured to use standard or inverted polarity.

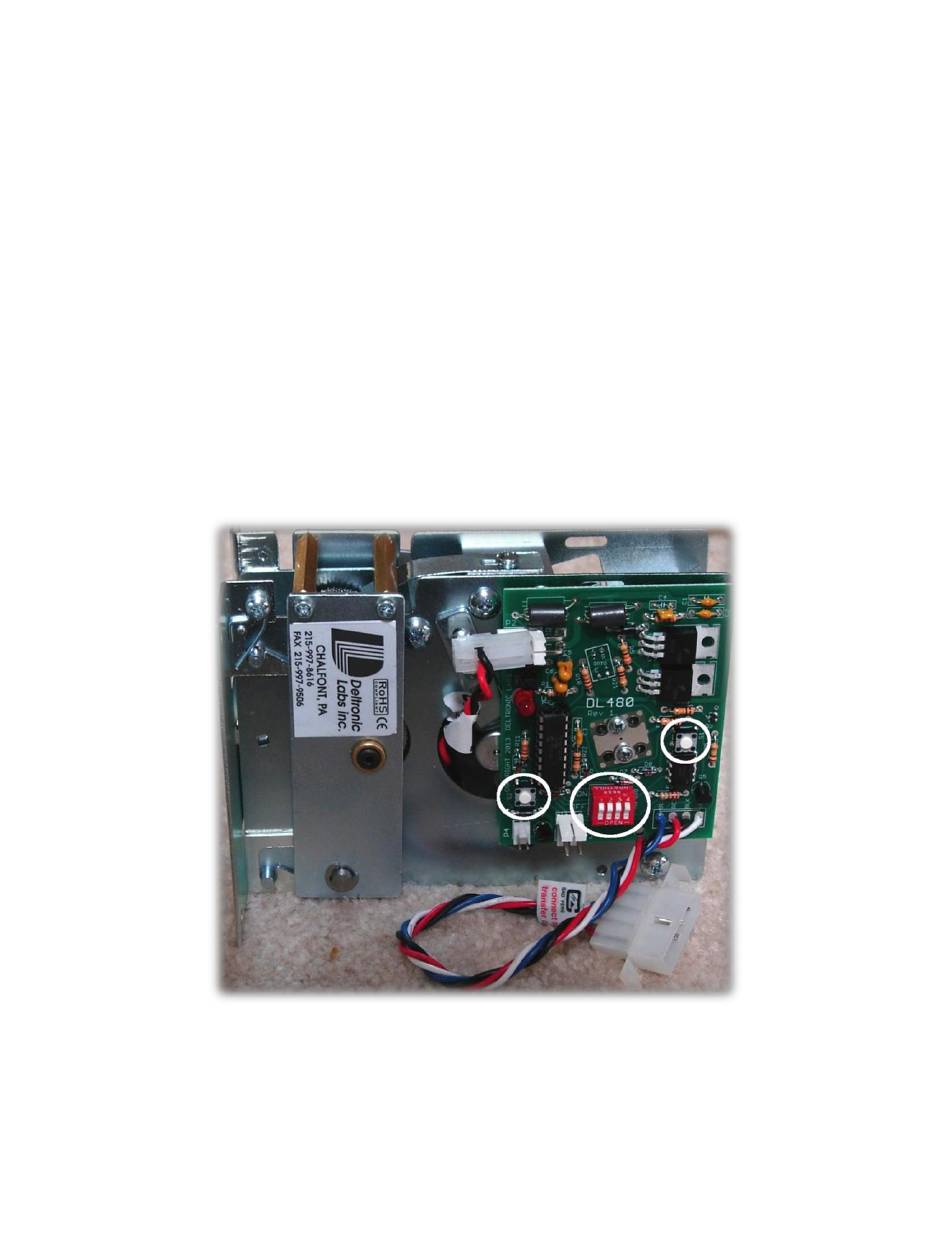

The DL-480 has 2 push buttons and a set of 4 DIP switches that are used to configure it. Configuration
settings are not changed until the entire procedure is completed. If you make a mistake, remove and
reapply power, and then start over.
1. Connect the DL-480 to the game. Then apply power.
2. To enter programming mode. Press both buttons the same time. The LED will come on.
3. Set the DIP switches for the motor speed as seen by the game and the adjustment mode for the DL-
1275 style input (see Table 1). Most games can use high speed, but some older games may require
standard speed.
DL-480
Adjusting Ticket Dispenser
Owners Manual

Configuration

1
July 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-480 and is the answer not in the manual?

Questions and answers

Summary of Contents for Deltronic Labs DL-480

  • Page 1 Owners Manual The DL-480 is a versatile ticket dispenser. It has both a 4 wire DL-1275 style input and a 6 pin DL-4 style input. Each input can be independently configured to adjust the ticket payout. The inputs can be configured to either multiply or divide the payout by a set factor, or to give a fixed quantity of tickets instead of the normal payout.
  • Page 2 Table 1: Adjustment Mode for DL-1275 Input Mode Motor Speed MULTIPLY High DIVIDE – round down (drop remainder) High DIVIDE – keeps remainder High DIVIDE – round up High FIXED High MULTIPLY Standard DIVIDE – round down (drop remainder) Standard DIVIDE –...
  • Page 3 While in Help mode the DL-480 returns signals to the game so that the game does not enter an error mode. If the game does detect an error then the DL-480 is hooked up incorrectly.
  • Page 4 July 2013...
