Summary of Contents for Logik LONBT13

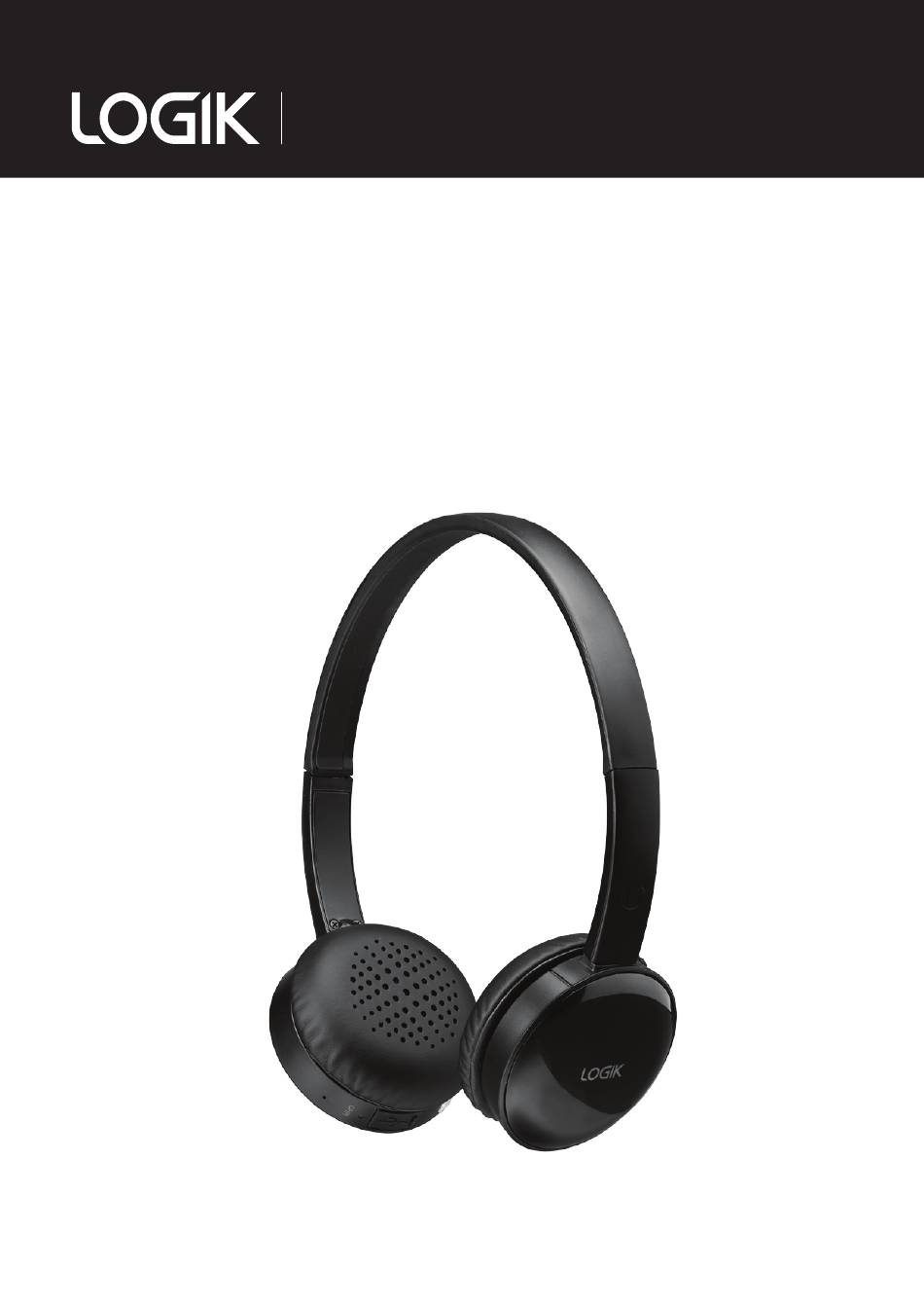

- Page 1 Quick Start Guide Bluetooth Wireless Headphones LONBT13...
-
Page 3: Table Of Contents
Contents Safety Warnings ............................4 Unpacking ..............................5 Product Overview ............................6 Charging the Battery ..........................6 Pairing for the 1st Time ..........................7 Switching On .............................. 7 Switching Off .............................. 8 Adjusting the Volume ..........................8 Making Calls ............................... 8 Listening to Music ............................. -
Page 4: Safety Warnings
Safety Warnings • For traffic safety, do not use earphones while driving or cycling. • Avoid listening to sound at high levels for prolonged periods of time. This may be harmful to you and may cause hearing loss. • The socket outlet that is installed near equipment must be easily accessible. • Do not use that device in the environment at too high or too low temperature, never expose the device under strong sunshine or too wet environment. The suitable temperature for the device and accessories is 0°C - 45°C. • This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods. -
Page 5: Unpacking
Unpacking Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: Main Unit USB Cable Pouch If items are missing, or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance. -
Page 6: Product Overview
Product Overview 1. Increase Volume / Previous Track 4. StandBy/ Multifunction Button Button USB Connector 2. Decrease Volume /Next Track 6. Battery Power Indicator (Red) Button 7. Mic 3. Bluetooth & Pairing Indicator (Blue) Charging the Battery USB Cable 1. On first use, and whenever the battery power indicator flashes slowly continually, you need to charge the headphones. Indicator colour dependent upon individual item 2. Use the USB cable to connect the headphones to your computer. The red indicator light will stay on. 3. When the battery is fully charged, the red indicator light will wink out. It takes approximately 4 hours to fully charge the battery. -
Page 7: Pairing For The 1St Time
The fully charged battery has power for up to 12 hours continuous music playback, up to 500 hours of standby time. • Attention should be given to the environmental aspects of battery disposal. • Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, fire or the like. Pairing for the 1st Time To pair headphones that have never been paired with a Bluetooth device before, please follow the steps below: 1. Activate the Bluetooth feature on the mobile phone or music player, and set it search for new Bluetooth devices. 2. Press the button, until the blue indicator light flashes rapidly. The headphones are now in pairing mode. 3. Select “LONBT13” from the list of found devices on the mobile phone or music player. Some mobile phones list an option to “play through headset”. Select to use the headphones. 4. If necessary, enter the password, “0000”, to pair and connect the headphones. Some device also ask for confirmation of the headset connection after paring. 5. The blue indicator will flash at approximately 5 second intervals after you have successfully paired the headphones. Switching On For headphones already paired with a Bluetooth device. 1. To switch on, press and hold the button till the blue indicator lights up. 2. When the headphones are turned on, the blue indicator light will blink slowly. The headphones will automatically search for the last paired... -
Page 8: Switching Off
Switching Off 1. To switch off, press and hold the button for about 2 seconds. 2. The red indicator light will flash for a short while then wink out. Adjusting the Volume To adjust the headphones volume, press and hold the buttons during a call or while listening to music. Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using headphones, especially for extended periods. Making Calls To make a call, use your mobile phone in the normal way when the headphones are connected to it. Headphones controls while on a call: Press Button Answer call Short time End call Short time Reject call 2 secs (the unit will beep) -
Page 9: Listening To Music
Listening to Music 1. To listen to music, connect the headphones to a compatible music player or mobile phone that supports Bluetooth headphones. 2. The available music functions depend on your music player. 3. If you receive or make a call while listening to music, the music is paused until you end the call. 4. To play a song, select it in the music player, then press the button on the music player. Headphones controls while playing music: Press Button Pause Short time Play Short time Previous track Short time Next track Short time Resetting the Unit To reset your unit, pleas follow the steps below: Reset Pairing • Press and hold and and together for about 10 seconds to clear all paired devices. -
Page 10: Specifications
Specifications Headset Total RMS power: 9 mW Working current: 25 mA Signal-to-noise ratio: ≥ 83 dB Frequency response: 40 Hz - 20 kHz Bluetooth working range: 10m, 360° Drivers: 30mm x 2 neodymium drivers Headset dimension (W x D x H): 167 x 60 x 175 mm Microphone Φ 6mm Omni-directional microphone Battery Operating current/ voltage: 25 mA @ 3.7V Li-ion battery capacity: 320 mAh Battery life: 12 hrs (continuously operating) Charging time: 4 hrs... - Page 12 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate. This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK QSG-LONBT13-130201V3...
