Summary of Contents for DirekTronik SUMC08L

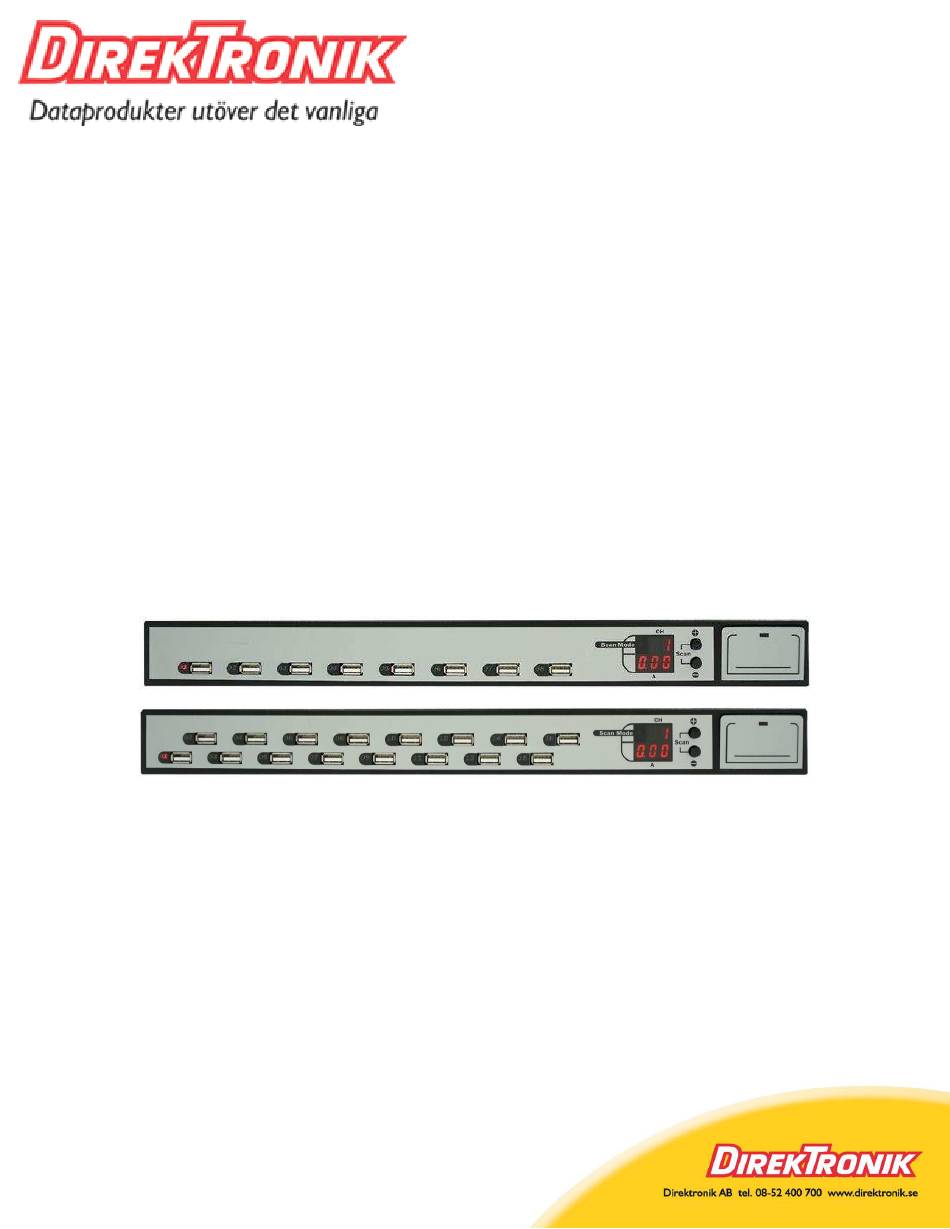

- Page 1 Best.nr: 121-8050, 121-8052, 121-8054 User Manual 21-8050, 21-8052, 21-8054 8-Port / 16-Port Smart USB Multi-Charger w/ LAN Rev. 0.3 Copyright©2014 KING-ON www.king-on.com.tw...
-
Page 2: Table Of Contents
Contents 1. Introduction 2. Safety Information 3. Installation 4. Panel Information 5. Basic Operation 6. Network Control 7. iOS Operation 8. Android Operation 9. Specification 10. Technical Support... -
Page 3: Introduction
A single Smart USB Multi-Charger SUMC08L / SUMC16L can charge and sync up to 8 or 16 smart devices. Up to 2 additional units can be daisy chained to together so that 24 or 48 smart devices can be manage as a group. -
Page 4: Installation
Do not overload the AC power. Each socket should not exceed 80% of the power rating. 2.4 Cleaning Turn the product off and unplug it before cleaning. Use only a dry, soft cloth to wipe the outside of the product. 2.5 Smart Devices Please properly place your smart devices or power pack on a surface so that it will not fall or drop with proper airflow between each device. -
Page 5: Panel Information
4. PANEL INFORMATION The front and back panel to the Smart USB MulltiCharger provides basic understanding of the indications and function of the unit. Please refer to below content when operating or greater clarification on its usage. The charging of the smart device will go from Quick Charging to Slow Charging to Finish Charging Mode depending on your battery status. - Page 6 4.2 Back View 1. RS485 Port 2. Computer Data Sync Port 3. Slide Switch Settings 1. Autoscan Mode Off: All On: Active Only 2. Standby Mode Off: Maintain low current charging On: Turn off power to port 3. Authorize Use Only Requires special tools 4.
-
Page 7: Basic Operation
20mA~90mA 8. Station ID Off: Default 4. Power Socket 5. Power On/Off 6. LAN Plug – SUML series 5. BASIC OPERATION The section explains the Basic Daily Operation of using the Smart USB MultiChartger for the electrical power charging . It does not contain information on syncing or backup which is specific the operating system of the smart devices. - Page 8 Once finish, you should see an icon at the desktop and your installation is complete. The network configuration uses DHCP and the application automatically search for Smart USB MultiCharger w/ LAN on the local network. To access specific unit once the program is running, go to the system tray and right click and select the System Setting, then it would show the selected IP address unit being manage.
- Page 9 6.3 Station Setting Submenu Clicking the Station Setting Submenu will display detail information on the select Smart USB MultiCharger w/ LAN. Any change made need to be saved on the connected unit. For reference on setting, please see 4.2.3 Slide Switch Settings...
- Page 10 6.4 Accessing the Data Log To access the data log on the port, double click on the Station’s port and it will present the log setting for the port. The log file can be display in List format or Diagram format.
- Page 11 Only the Diagram format has the option for 3D viewing. You have a choice of viewing 3D in Line or Bar format. To save the log data for future reference, go the location of the store program is stored and copy the log folder’s files to another destination.
-
Page 12: Ios Operation
7. iOS OPERATION The iOS operation is based on Apple’s Configurator for syncing of data and application. For specific detail operation of Apple’s Configurator, it is recommended that you consult their user guide. If you have not already download it, please go to the Mac’s App Store to search for “configurator”... - Page 13 a. Prepare devices In using the Prepare mode for replicating the iDevices, one thing to consider is if it is just a fresh updated state without data or with data. Without data, you can create a profile which will get the latest system update along with the types of apps and setting that is needed.
-
Page 14: Android Operation
On the connected iDevice, press Install. Make sure you have the authorization code to the iDevice and key it when requested. After display of consent message, press Next on the iDevice. Finally, press Install and the iDevice will display its completion. Close the Apple Configurator on the MAC and you have finish syncing the setting for all the connected similar iDevices. -
Page 15: Specification
http://www.maas360.com/ https://www.mobileiron.com/en http://www.sophos.com/en-us/products/mobile-control.aspx http://www.symantec.com/mobility/implement.jsp 9. SPECIFICATION Model No. SUMC L SUMC L ectors USB T pe A Fe ale USB T pe A Fe ale USB T pe B Fe ale DB Fe ale Fe ale IEC C Male Displa s digits seg e t LEDs Cha digits seg e t LEDs Curre t Red/Gree LEDs Port... -
Page 16: Technical Support
9. TECHNICAL SUPPORT Please contact your local dealer for technical support issue. DISCLAIMER Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
