Summary of Contents for Echomaster MON-7022

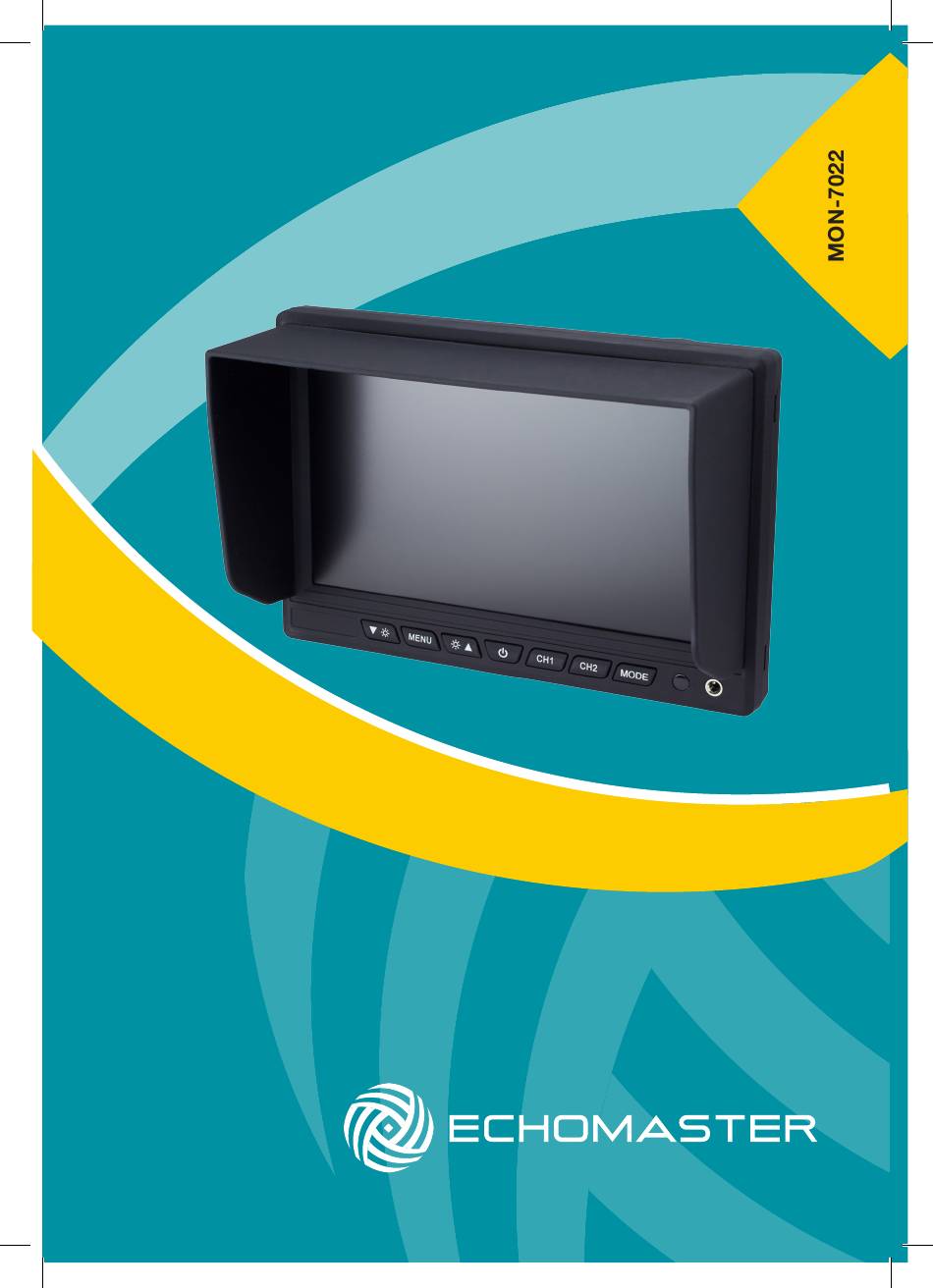

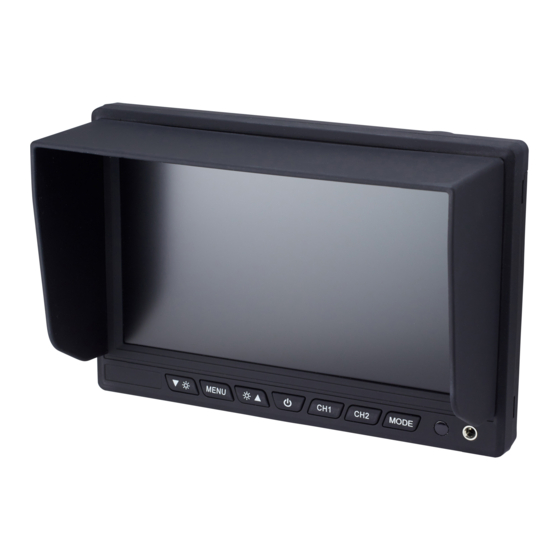

- Page 1 7” Dash Mount Dual Input Monitor User Manual...
- Page 2 Choose a mounting location that will not obscure the driver’s view. Also please ensure that the unit is not mounted in a location that will obstruct the EchoMaster monitors are designed to improve safety by providing operation of any airbags.
- Page 3 Installation Guide Installation Guide MON-7022 MON-7022 7” Dash Mount Dual Input Monitor 7” Dash Mount Dual Input Monitor Operating Instructions Wiring Diagram All of these functions are replicated on the supplied remote control. When a 12V input is detected on either trigger wire the unit will automatically switch to the corresponding input.
- Page 4 Installation Guide Installation Guide MON-7022 MON-7022 7” Dash Mount Dual Input Monitor 7” Dash Mount Dual Input Monitor Specifications MON-7022 Screen Size 7.0” Aspect Ratio 16:9 Power Supply 12V DC Resolution 800x480 Luminance Contrast 500:1 TV Format AUTO OSD Languages...
- Page 5 15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760 Woolmer Way, Bordon, Hampshire, United Kingdom email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe) EchoMaster is a Power Brand of AAMP Global. EchoMaster.com...
