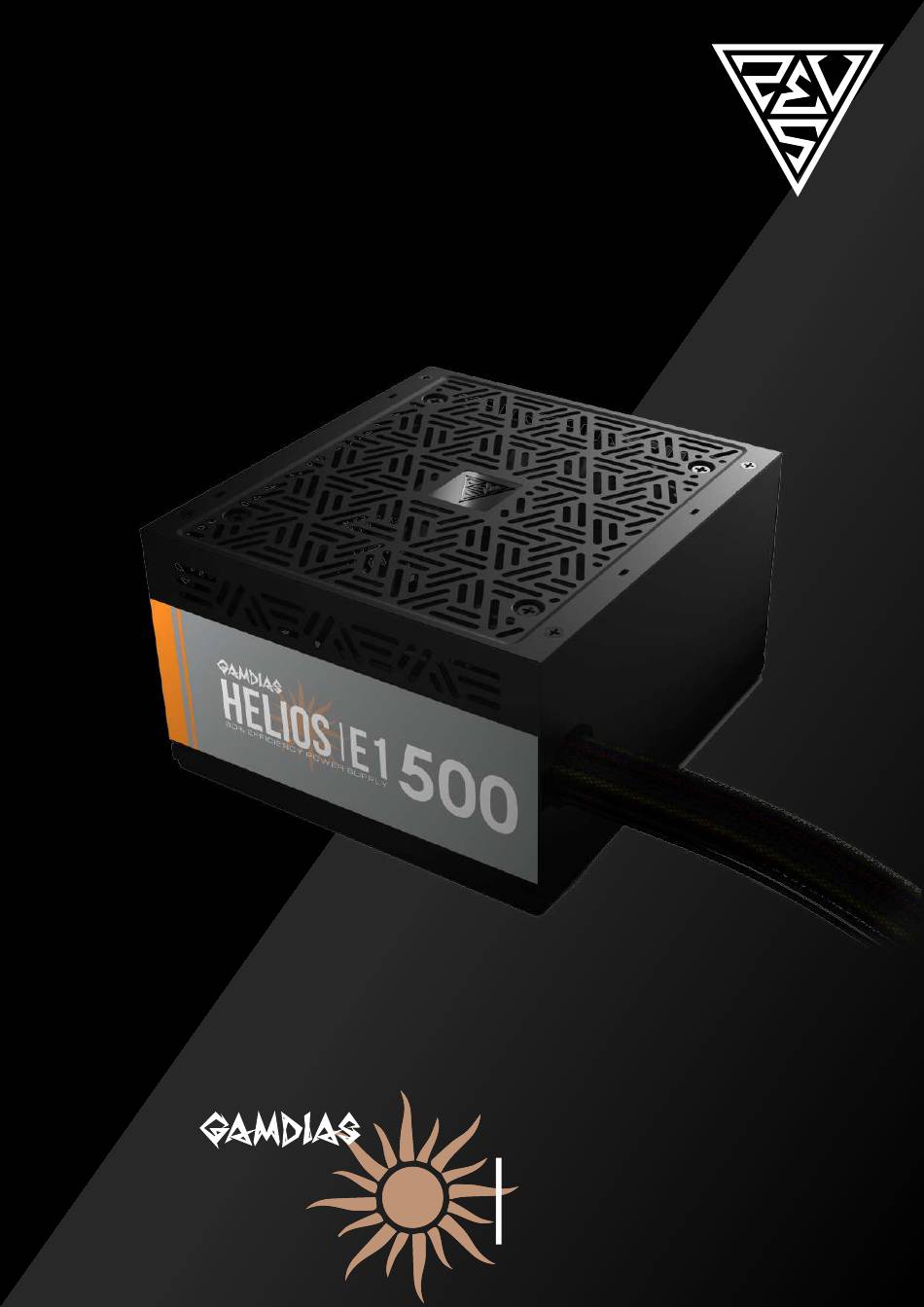

- Page 1 STEP by STEP INSTALLATION GUIDE HELIOS E1-500W 8 0 % E F F I C I E N C Y P O W E R S U P P L Y...
- Page 2 Model Name HELIOS E1-500 AC Input 100-130V/200-240V , 3.5-7.5A , 47-63Hz DC Output +3.3V +12V -12V +5Vsb Max. Output Current 0.3A 2.5A Max. Output Power 100W 384W 3.6W 12.5W Total Power 500W The power supply should be powered by the source indicated on the rating label...
- Page 4 Turn off the PSU before installing by pushing I/O switch to “O" position.
- Page 5 ▼ If AC voltage of your region is 100~130V, the voltage switch must 115V be set to this position ▼ For example, if you live in the United States, the voltage switch must be set to this position ▼ If AC voltage of your region is 220~240V, voltage switch must be set to this position For example, if you live in France, the voltage switch must be set to ▼...
- Page 7 Motherboard...
- Page 8 PCIE SATA...
- Page 9 Molex...
- Page 10 Plug in the AC power cord. Turn on the PSU after installing by pushing I/O switch to "I" position.
