- Page 1 3 1 8 6 2 - w i r e t r a n s m i t t e r i s o l a t o r M o d e l n o . 3 1 8 6 N o .
- Page 2 PR electronics A/S tilbyder et bredt program af analoge og digitale signalbehandlingsmoduler til industriel automation. Programmet består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere, Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv barske miljøer med elektrisk støj, vibrationer og temperaturud- sving, og alle produkter opfylder de strengeste internationale stan- darder.
-
Page 3: Table Of Contents
EC declaration of conformity ............Applications ..................Technical characteristics ..............Mounting / installation ..............Order codes for 3186 ..............Specifications ................. Connections ................... NB.: Click on the entries in the table of contents to go to the desired section. 31 8 6 V 1 0 0 - I N... -
Page 4: Warning
Until the device is fixed, do not connect hazardous voltages to the device. Repair of the device must be done by PR electronics A/S only. In applications where hazardous voltage is connected to in-/ outputs of the device, sufficient spacing or isolation from wires, terminals and enclosure - to surroundings (incl. -
Page 5: Safety Instructions
SAFETy INSTRUcTIoNS REcEIPT AND UNPAcKING Unpack the device without damaging it. The packing should always follow the device until this has been permanently mounted. Check at the receipt of the device whether the type corresponds to the one ordered. ENVIRoNmENT Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock, as well as rain and heavy moisture. - Page 6 warning: Substitution of components may impair suitability for zone 2 / division 2. warning: To prevent ignition of the explosive atmospheres, disconnect power before servicing and do not separate connectors when energised and an explosive gas mixture is present. warning: Do not mount or remove devices from the power rail when an explosive gas mixture is present.
-
Page 7: Mounting And Demounting Of System 3100

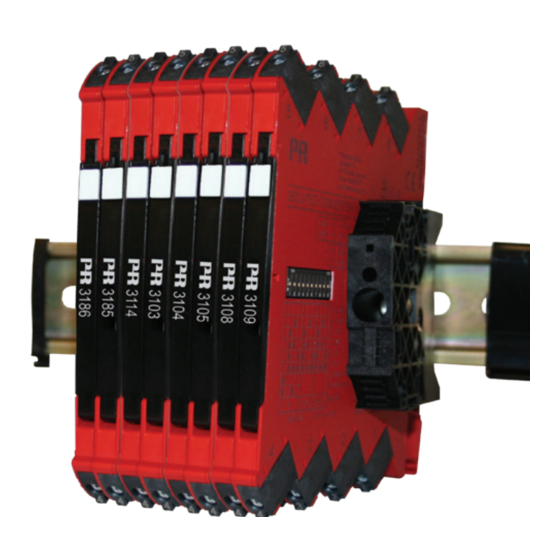

moUNTING AND DEmoUNTING oF SySTEm 3100 Picture 1: Mounting on DIN rail. Click the device onto the rail Picture 2: Demounting from DIN rail First, remember to demount the connectors with hazardous voltages. Detach the device from the DIN rail by lifting the bottom lock. -
Page 8: Installation On Din Rail
INSTALLATIoN oN DIN RAIL Module stop 3186 must be supported by a module stop for marine applications. (PR part number 9404). mARKING The front cover of the 3100 series has been designed with an area for affixation of a click-on marker. -
Page 9: Side Label
SIDE LABEL Terminal numbers connections Approvals Type no. 31 8 6 V 1 0 0 - I N... -
Page 10: Ec Declaration Of Conformity
Ec DEcLARATIoN oF coNFoRmITy As manufacturer PR electronics A/S Lerbakken 10 DK-8410 Rønde hereby declares that the following product: Type: 3186 is in conformity with the following directives and standards: The EMC Directive 2004/108/EC and later amendments EN 61326-1 : 2006 For specification of the acceptable EMC performance level, refer to the electrical specifications for the devices. -
Page 11: Applications
Technical characteristics • 3186 is powered by the host loop voltage. • Wide supply range from 6...35 V. • Low input to output voltage drop typ 2.5 V. • Excellent conversion accuracy, better than 0.05% in the range 3.8…20.5 mA. • Functional range is 3.5...23mA which means that 3186 is NAMUR NE43 compliant. • Inputs and outputs are floating and galvanically separated. • High galvanic isolation of 2.5 kVAC. • Fast response time < 5 msec. • Excellent signal/noise ratio > 60 dB. -
Page 12: Order Codes For 3186
3186: Accessories for 3186: Type Unit channels Type Function 3186A1 9404 Module stop 3186A2 Specifications Environmental conditions: Specifications range ........ -25°C to +70°C Storage temperature ........ -40°C to +85°C Calibration temperature....... 20...28°C Relative humidity ......... < 95% RH (non-cond.) Protection degree ........IP20 Installation in pollution degree 2 & overvoltage category II. - Page 13 Input and output specifications: Available input transmitter (Tx) supply ..3.5...32.5 V Signal range, input to output ...... 3.8...20.5 mA Signal conversion ........1:1 Functional range .......... 3.5...23 mA Output loop current limitation, typ ....24 mA Current output overload, max ..... 50 mA Accuracy values Input Absolute...
- Page 14 Approvals: EMC 2004/108/EC ........EN 61326-1 LVD 2006/95/EC .......... EN 61010-1 UL, Standard for Safety ......UL 61010-1 Safe Isolation ..........EN 61140 GOST R marine: Det Norske Veritas, Ships & Offshore ..Stand. f. Certific. No. 2.4 Germanischer Lloyd ........VI-7-2 ATEX 94/9/EC ..........
-
Page 15: Connections
3186 + V supply 4...20 mA Input Output ch. 1 ch. 1 + V supply Input Output 4...20 mA ch. 2 ch. 2 31 8 6 V 1 0 0 - I N... - Page 16 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearisation, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analogue and digital signals as well as HART signals between sensors / I/P converters / ®...
- Page 17 www.prelectronics.fr sales@prelectronics.fr www.prelectronics.de sales@prelectronics.de www.prelectronics.es sales@prelectronics.es www.prelectronics.it sales@prelectronics.it www.prelectronics.se sales@prelectronics.se www.prelectronics.co.uk sales@prelectronics.co.uk www.prelectronics.com sales@prelectronics.com Head office Denmark www.prelectronics.com PR electronics A/S sales@prelectronics.dk Lerbakken 10 tel. +45 86 37 26 77 DK-8410 Rønde fax +45 86 37 30 85...
