Summary of Contents for Pike Falcon 110-60 Series

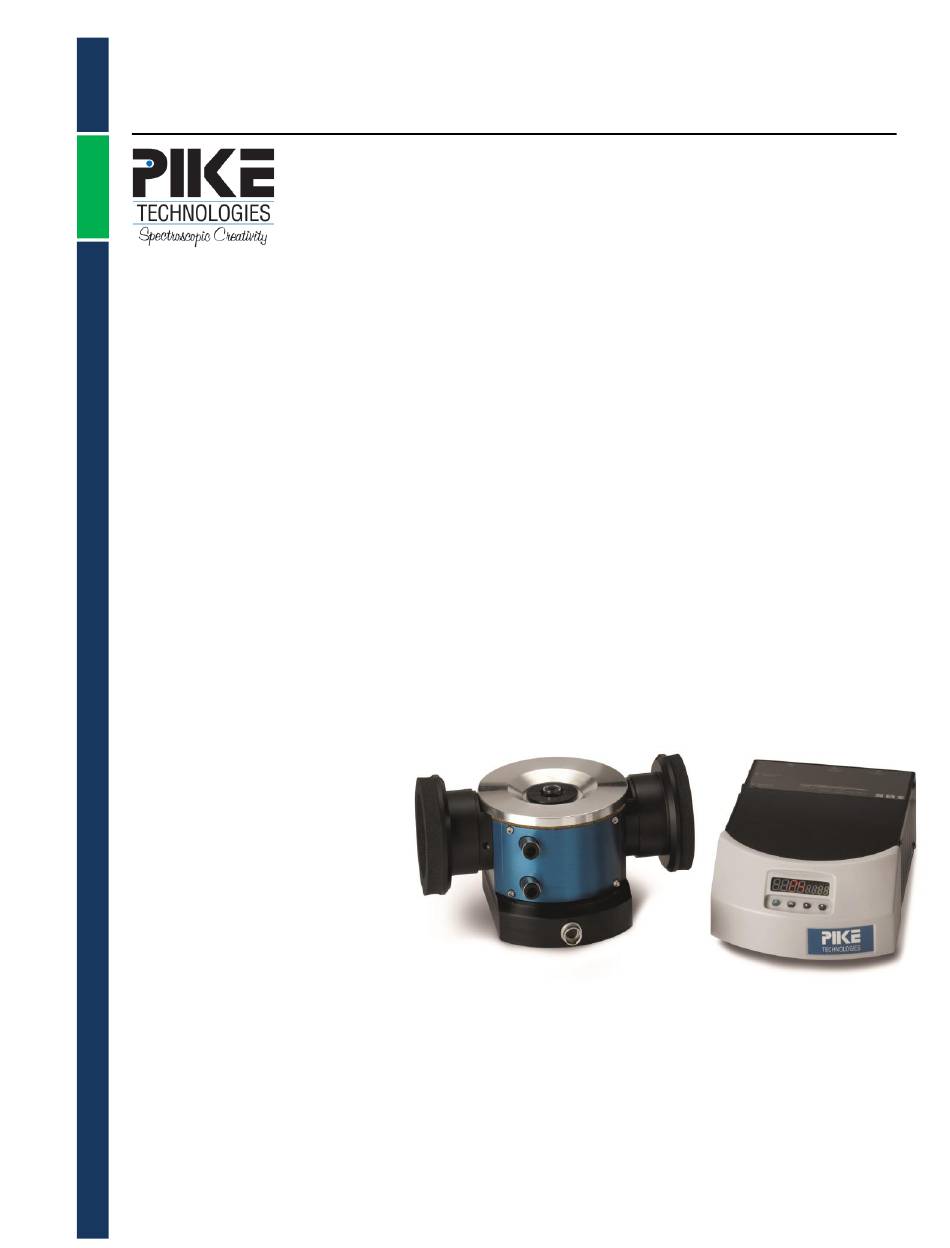

- Page 1 Installation and User Guide Falcon Heated Transmission Accessory...
- Page 2 This publication may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of PIKE Technologies, Inc. nor the rights of others. PIKE Technologies, Inc. does not assume any liability arising out of any infringements of patents or other rights of third parties.
-
Page 3: Table Of Contents
Contents Introduction Specifications Unpacking Your Accessory Packing List Installation Preparing the Accessory Aligning the Accessory Sampling Procedures Sample Preparation Important Notes Precautions Cautions for Measurement of Samples in a Container SAFETY Precaution Replacement Parts and Options... -
Page 4: Introduction
Introduction The PIKE Technologies Falcon NIR Transmission Accessory is an excellent choice for quantitative and qualitative analysis of liquid samples in the NIR spectral region. Temperature range of the accessory is 5 °C to 130 °C with +/- 0.5% accuracy. Heating and cooling is controlled by a built-in Peltier device. -
Page 5: Specifications
Specifications Temperature Control Peltier (cooling and heating) Temperature Range 5 °C to 130 °C Accuracy +/- 0.5% Sensor Type 3 wire Pt RTD (low drift, high stability) Temperature Controllers Digital +/- 0.5% of set point +/- 0.5% of set point, graphical setup, up to 10 ramps, USB Digital PC interface Input Voltage... -
Page 6: Unpacking Your Accessory
Unpacking Your Accessory In order for you to quickly verify receipt of your accessory, we have included a packing list. Please inspect the package carefully. Packing List Falcon NIR Manual Falcon NIR Base Digital Temperature Controller PN 350-110600 PN 110-60XX PN 076-1230 or 076-1430 Quantity 1 Quantity 1... -
Page 7: Installation
Connect the RTD sensor cable to the front of the Falcon accessory and to the back of the low profile temperature controller. If using a PC version temperature controller, install PIKE TempPRO software following the instructions provided with the TempPRO instruction documentation. Connect the USB cable to the back of the temperature controller and to a PC USB slot. -
Page 8: Preparing The Accessory
Place the sample holder into the Falcon base. The holder is keyed to assure proper placement. When inserted properly the holder lip should be flush against the Falcon base. Temperature of this accessory is controlled by the PIKE Temperature Control Module. Refer to the Temperature Controller Instruction Manual for its operation. -
Page 9: Precautions
Precautions Cautions for Measurement of Samples in a Container This accessory scans samples in glass vials or quartz cuvettes. The spectrum of the vial or cuvette superimposes the sample spectrum. When you use other glass containers for analysis, you have to investigate influences that the containers may give to the spectra and result before starting the analysis. -
Page 10: Replacement Parts And Options
Replacement Parts and Options The following parts and options may be ordered for the Falcon NIR accessory: Part Number Description 110-60XX Falcon NIR Base Temperature Controllers 076-1230 Digital Temperature Control Module 076-1430 Digital Temperature Control Module PC Control Sample Holders 111-3610 5 mm Vial Holder 111-3620... - Page 11 Regulatory Compliance We hereby declare that this product conforms to the following standards: Safety Requirements For Electrical Equipment For Measurement, Control, And Laboratory Use – Part 1: General Requirements [IEC 61010‐1:2010 Ed.3+A1] Safety Requirements For Electrical Equipment For Measurement, Control, And Laboratory Use Part 2‐010: Particular Requirements For Laboratory Equipment For The Heating Of Materials [IEC 61010‐2‐010:2003 Ed.2] Safety Requirements For Electrical Equipment For Measurement, Control, And Laboratory...
- Page 12 The crossed out wheeled bin is a clear reminder that the product must NOT be disposed with household waste. It is the responsibility of the buyer to discard the product in accordance with Federal, regional and This label is located outside local environmental regulations.
