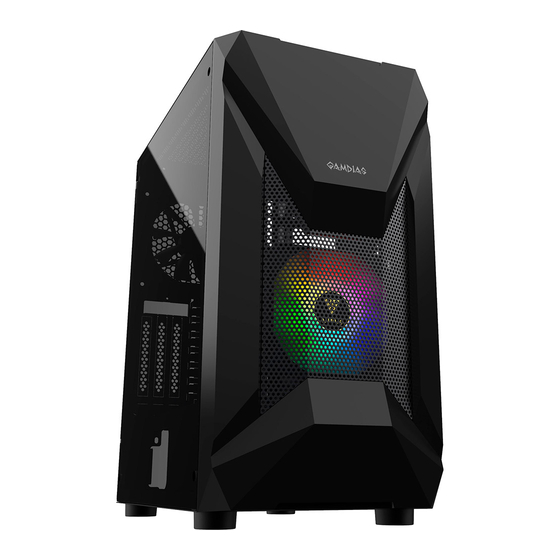

Summary of Contents for Gamidas ATHENA E1
- Page 1 QUICK INSTALLATION GUIDE Athena M I D - T O W E R C A S E...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1 Specifications 2 Exploded View & Parts 3 Accessory 4 Side Panel Removal 5 Motherboard Installation 6 PSU Installation 7 3.5" & 2.5" HDD Installation 8 Air Cooling Compatibility 9 Radiator Compatibility 10 I/O Ports 11 I/O Connectors... -
Page 3: 1 Specifications
SPECIFICATIONS SERIES Mesh Series Product Name ATHENA E1 Case Type MID Tower Dimension (L x W x H) 368 x 210 x 462 mm 14.5 x 8.3 x 18.2 inch Chassis Dimension (L x W x H) 300 x 210 x 440 mm 11.8 x 8.3 x 17.3 inch... -
Page 4: 2 Exploded View & Parts
EXPLODED VIEW PARTS PARTS PARTS Chassis Body Mesh Front Panel Screw IO Port Tempered Glass Side Panel 12CM ARGB FAN Right Side Panel HDD Cage Top Dust Filters Rubber Foot ACCESSORY Parts Name Used for Figure Stand-off 4.75 x 6.5 x 10mm Motherboard Screw #6 x 6 mm Screw #6 x 5 mm... -
Page 5: 4 Side Panel Removal
SIDE PANEL REMOVAL English Português Remove the side panel Remova o painel lateral Español Русский Retire el panel lateral Снимите боковую панель Deutsch Türk dili Seitenblende entfernen Yan paneli çıkarın Polski 日本語 サイドパネルを取り外します Usuń panel boczny Français 한국어 Retirez le panneau latéral 사이드... -
Page 6: 5 Motherboard Installation
MOTHERBOARD INSTALLATION English Português Lay down the chassis Deite o chassi Install the motherboard in proper location Instale a placa-mãe no local correto e and secure it with screws prenda-a com parafusos Español Русский Tumbe el chasis Снимите подставку Instale la placa base en la posición adecuada Установите... -
Page 7: 6 Psu Installation
PSU INSTALLATION English Português Place the PSU in proper location Coloque a PSU no local adequado Español Русский Coloque la PSU en la posición adecuada Поместите блок питания в нужное место Deutsch Türk dili Netzteil an der richtigen Stelle platzieren PSU’yu uygun konuma yerleştirin Polski 日本語... - Page 8 3.5" 2.5" HDD INSTALLATION 3.5" HDD 2.5" SSD English Português A. 3.5" HDD A. HDD 3.5" Align the HDD into the mounting holes and screw in. Alinhe o HDD nos orifícios de montagem e aperte-o. B. 2.5" SSD B. SSD 2.5" Align the SSD into the mounting holes and screw in.
- Page 9 AIR COOLING COMPATIBILITY English Svensk 日本語 上部 120 mm x 2 2 x 120mm Ovansida 2 x 120mm 前部 120 mm x 1 Front 1 x 120mm Framsida 1 x 120mm 後部 120 mm x 1 Rear 1 x 120mm Baksida 1 x 120mm 下部 120 mm×2 Bottom 2 x 120mm Botten 2 x 120mm Español...
-
Page 10: Radiator Compatibility
RADIATOR COMPATIBILITY English Svensk 日本語 上部 240 mm 240 mm Ovansida 240 mm Rear 120 mm Baksida 120 mm 後部 120 mm Español Italiano 한국어 Superior 240 mm Parte superiore 240 mm 상단 240mm Trasero 120 mm Parte posteriore 120 mm 후면 120mm Deutsch Português... -
Page 11: O Ports
I/O PORTS Power Button USB 2.0 Reset Button LED Control Headphone USB 3.0 Sync With Motherboard : Press and Hold the LED Control Button for 3 Seconds. -
Page 12: O Connectors
I/O CONNECTORS USB 3.0 USB 2.0 HD AUDIO POWER RESET POWER POWER RGB sync LED+ LED- via MB English Português See your motherboard's manual for front panel header Veja o manual da sua placa-mãe para localizar locations and pin-outs. os locais e os compartimentos do painel frontal. Español Русский...
