Summary of Contents for COMAC SANEX

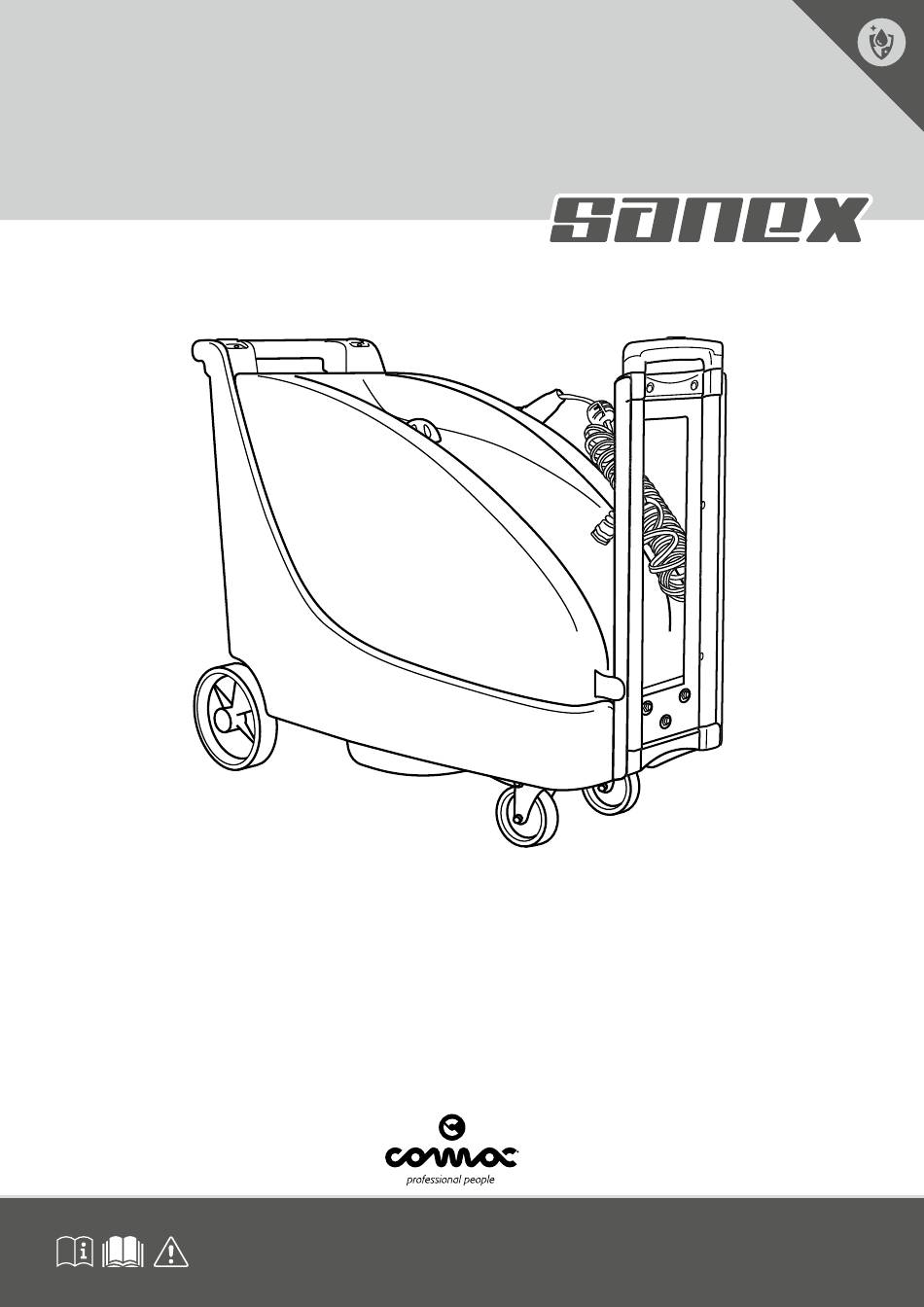

- Page 1 USE AND MAINTENANCE MANUAL ORIGINAL INSTRUCTIONS DOC. 10097095 - Ver. AA - 05-2020...
- Page 3 CONTENTS CONTENTS ...........................3 GENERAL SAFETY REGULATIONS ...................4 MACHINE WITH CONNECTION TO THE ELECTRICITY GRID ................4 BATTERY-POWERED MACHINE ..........................6 USING THE MACHINE ............................7 DEACTIVATION OF THE MACHINE ........................9 MAINTENANCE ..............................10 TRANSPORT ................................. 11 LOCATION OF THE MAIN MACHINE COMPONENTS .............12 GENERAL DESCRIPTION ......................12 DEFINITION OF LEVELS OF WARNING ......................
- Page 4 GENERAL SAFETY REGULATIONS The following symbols are used to indicate any potentially hazardous situations. Always read this information carefully and take the necessary precautions to protect any people and/or objects that may be present. Operator cooperation is paramount for accident prevention. No accident prevention programme can be effective without the full cooperation of the person directly responsible for the machine's operation.
- Page 5 equal to that shown on the serial number plate. • The power supply cable outlet must have an earth connection in compliance with the regulatory standards. • If the machine packaging contains the cable to connect to the mains supply, it should only be used for the above-mentioned machine.
- Page 6 EXTENSION CABLE (electrical versions) WARNING: • Only use the materials expressly recommended by a service technician as cable extensions (contact an authorized retailer) or else high quality models. When using an extension, respect its minimum cross-section. BATTERY-POWERED MACHINE DANGER: • In case of danger, act promptly, moving the main switch to position “0”. WARNING: •...
- Page 7 RECHARGING THE BATTERIES (battery-powered versions) DANGER: • If the battery charger power cable is damaged or broken, it should be replaced by the charger manufacturer or authorized service personnel, or by another qualified person, in order to protect against hazards. •...
- Page 8 USING THE MACHINE DANGER: • The nebulized product must never be directed towards equipment containing electrical components. • If the machine is used in dangerous areas (e.g. petrol stations), the relative safety standards must be observed. It is forbidden to use the machine in environments with a potentially explosive atmosphere.
- Page 9 ATTENTION: • Children must be supervised to ensure they do not play with the machine. • During the working of the machine, pay attention to other people and especially to children. • Read the labels on the machine carefully. Do not cover them for any reason, and replace them immediately if they become damaged.
- Page 10 • Stop the machine on a flat surface. • If the machine is left unattended, it must be protected from any accidental movements. • When deactivating the machine, switch it off using the main switch; for electrical versions, you must also disconnect the power cable from the mains socket.
- Page 11 ATTENTION: • Block the wheels before lifting the machine. • Lift the machine with equipment that can sustain the weight to be lifted. • Never tamper with the machine's protection devices for any reason; always follow the supplied routine maintenance instructions scrupulously. •...
- Page 12 LOCATION OF THE MAIN MACHINE COMPONENTS The machine's main components are the following: 6. Battery charger display (battery-powered versions). 7. Battery charger power socket (battery-powered versions). 1. Control handlebars. 8. Pivoting front wheel with parking brake. 2. Sanitizing solution tank lid. 9.
- Page 13 TECHNICAL DESCRIPTION SANEX is a sanitizing machine that can be used to clean and sanitize a wide range of floors, through the nebulization of a chemical product which is appropriate to the work to be carried out. The machine must only be used for this purpose.
- Page 14 The serial number is a very important piece of information and should always be provided together with any request for assistance or when purchasing spare parts. TECHNICAL DATA SANEX SANEX SANEX TECHNICAL DATA...
- Page 15 LABELS USED ON THE MACHINE Label indicating the need to read the Use and Maintenance Manual: Applied in the vicinity of the steering column in order to remind the operator to read the user and maintenance manual before using the machine. ATTENTION! Label warning of the danger of electrocution (versions 110-120 volt): Used on the machine to warn the operator that there is a danger of electrocution with a voltage from 110-120 volt.
- Page 16 HOW TO MOVE THE MACHINE To transport the machine safely, proceed as follows: DANGER: before starting any task, make sure the current regulations concerning the safe transport of dangerous substances are scrupulously observed. 1. Check that the sanitizing solution tank is empty, otherwise empty it. ATTENTION: It is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
- Page 17 The various phases for inserting the batteries in the battery compartment are as follows: 1. Carry out the steps necessary to secure the machine, see paragraph “MACHINE SAFETY” on page 16. 2. Go to the front of the machine and remove the cap (4) from the tank (Fig.4) 3.
- Page 18 2. Carry out the steps necessary to secure the machine (see paragraph “MACHINE SAFETY” on page 16). ATTENTION: the following operations must be carried out by qualified personnel. An incorrect connection of the connector may cause a malfunction of the device. N.B.: Carefully read the use and maintenance instructions of the battery charger that is used for charging, this document is delivered along with the machine.
- Page 19 STARTING WORK To start working, proceed as follows: 1. Make all the checks listed in “PREPARING TO WORK”. 2. Go to the rear of the machine and switch it on, turning the main switch (1) to position “I” (Fig.1). 3. Remove the spray gun from the holder. 4.
- Page 20 AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: 1. For battery-powered versions, turn the compressor off; move the compressor control switch (1) to position “0” (Fig.1). 2.
- Page 21 CLEANING THE NEBULIZER SYSTEM To clean the nebulizer system, proceed as follows: 1. Go to the front of the machine and remove the cap (1) from the tank (Fig.1) 2. Remove the plastic chassis (2) of the machine (Fig.2). N.B.: The equipment needed for removing the bolts is not included with the machine. 3.
- Page 22 TROUBLESHOOTING This chapter lists the most common problems linked with the use of the machine. If you are unable to resolve the problems with the information given here, please contact your nearest assistance center. PROBLEM POSSIBLE CAUSE SOLUTION Turn on the machine; move the main switch to position THE MACHINE the machine is off.
- Page 23 Via Maestri del Lavoro, 13 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products SANITIZER MACHINE mod. SANEX B comply with the requirements of the following Directives: • 2006/42/EC: Machinery Directive. • 2014/35/EU: Low Voltage Directive.
- Page 24 Via Maestri del Lavoro, 13 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products SANITIZER MACHINE mod. SANEX comply with the requirements of the following Directives: • 2006/42/EC: Machinery Directive. • 2014/35/EU: Low Voltage Directive.
- Page 28 COMAC S.p.A. Via Maestri del Lavoro, 13 - 37059 Santa Maria di Zevio - Verona - ITALY Tel. 045 8774222 - Fax 045 8750303 - www.comac.it - com@comac.it...
