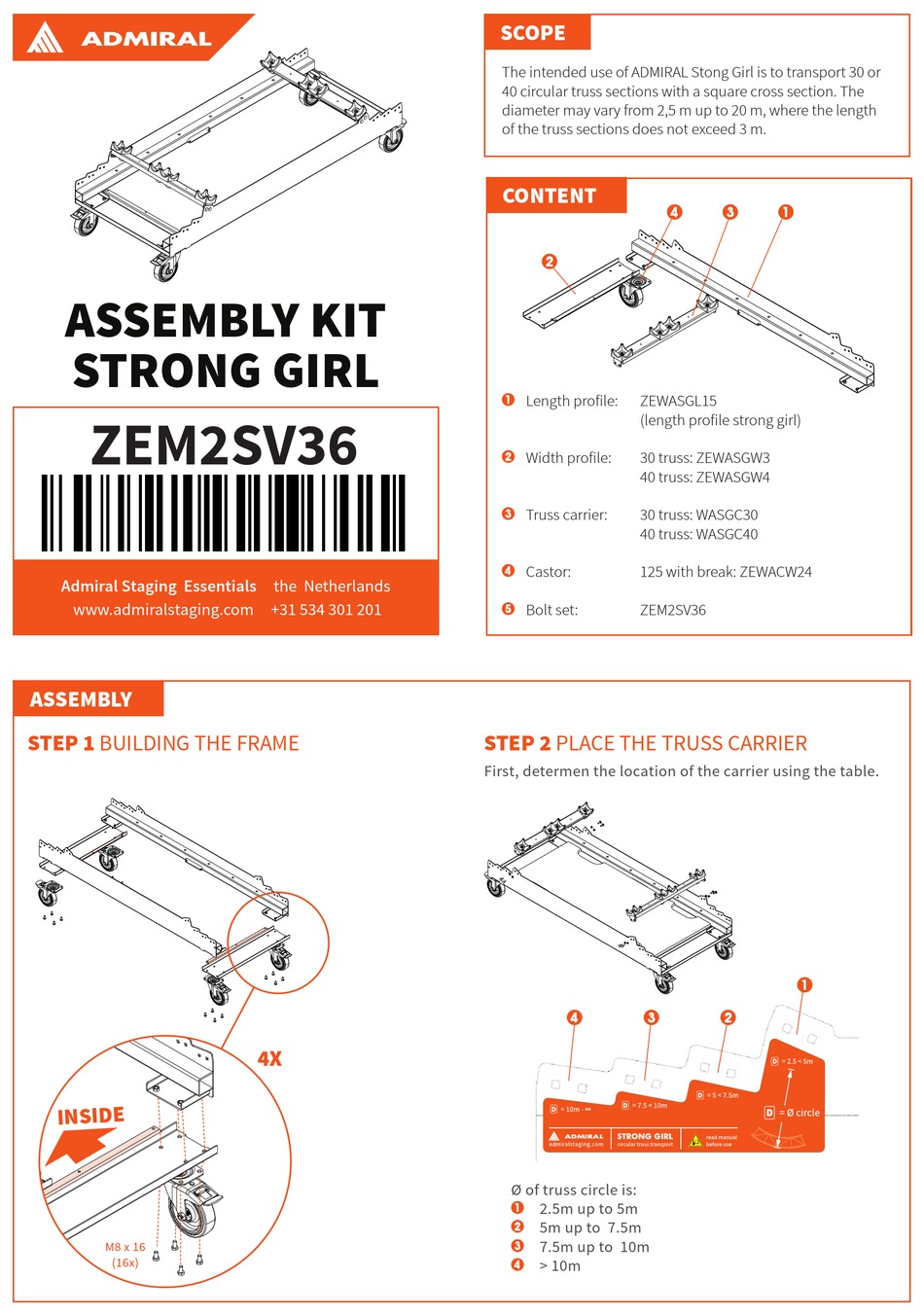

ASSEMBLY KIT
STRONG GIRL
ZEM2SV36
Admiral Staging Essentials the Netherlands
www.admiralstaging.com +31 534 301 201
ASSEMBLY
STEP 1 BUILDING THE FRAME
M8 x 16
(16x)
4X
SCOPE

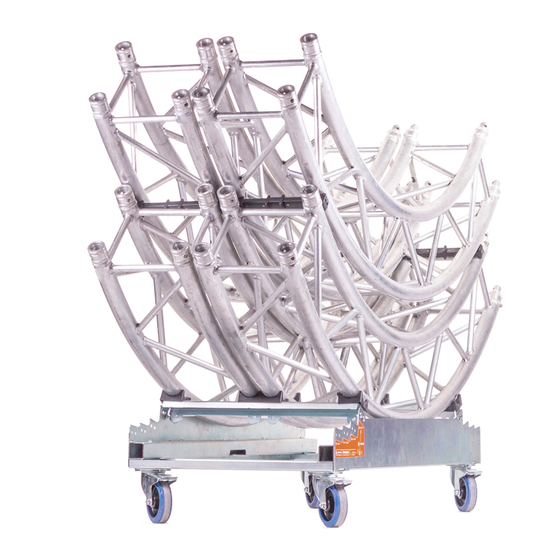

The intended use of ADMIRAL Stong Girl is to transport 30 or
40 circular truss sections with a square cross section. The
diameter may vary from 2,5 m up to 20 m, where the length
of the truss sections does not exceed 3 m.
CONTENT
2
Length profile:
ZEWASGL15
1
(length profile strong girl)
Width profile:
30 truss: ZEWASGW3
2
40 truss: ZEWASGW4
Truss carrier:
30 truss: WASGC30
3
40 truss: WASGC40
Castor:
125 with break: ZEWACW24
4
Bolt set:
ZEM2SV36
5
STEP 2 PLACE THE TRUSS CARRIER
First, determen the location of the carrier using the table.
4
3
Ø of truss circle is:
2.5m up to 5m
1
5m up to 7.5m
2
7.5m up to 10m
3
> 10m
4
4
3
1
1
2
