Bluegrass Playgrounds 90015501 Series Installation Manuallines

5” arch swing frame 8’-1 bay
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

USER GROUP: 2 - 12
RECOMMENDED CREW: 2 people

TOOLS REQUIRED:

NOTE: Use of any other driver may result in damage to tool
and/or hardware!
INSTALLATION TIME: 1 Hour
CONCRETE REQUIRED: 14.12 Cubic Feet
NOTE: Concrete must have a minimum rating of 2,500 psi and
must be mixed per manufacturer's recommendations.
NOTE:
Swing chains and seats are sold separately.

PRE-INSTALLATION CHECK:

Compare all items received to the packing list. Notify your local sales representative immediately if any
parts are missing or damaged.
We are not responsible for items discovered missing
Before beginning installation, make sure that you have read and understand the Installation Introduction
manual that was supplied to you. If you did not receive a copy, or if you have a question regarding
anything covered in this manual, contact your local sales representative.
MODEL NUMBER: 90015501XX
DATE: 05/04/2009

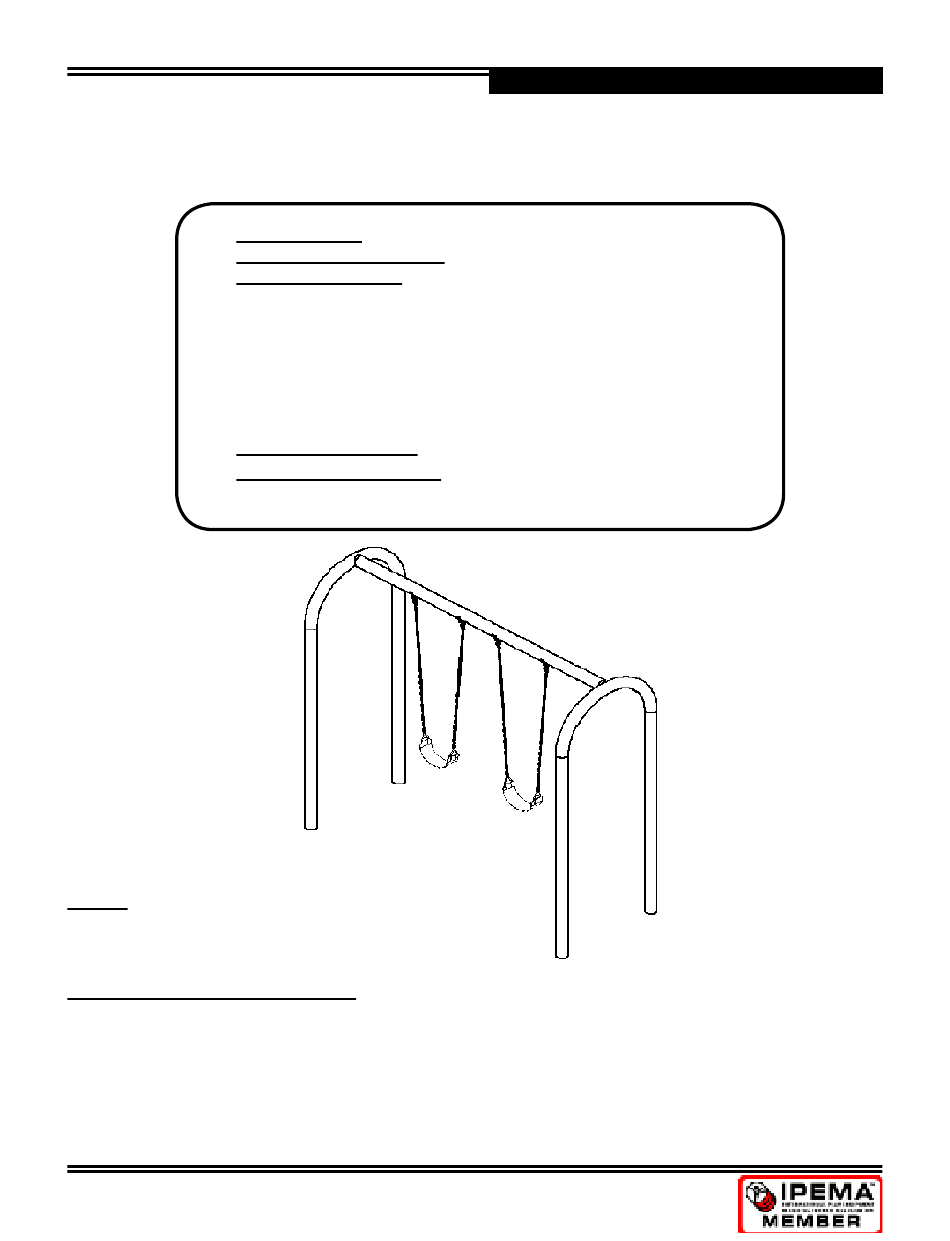

5" ARCH SWING FRAME
8' - 1 BAY
#90015501XX
1/4" Allen Head Tool
Level
Tape measure
Auger / Post hole digger / Shovel
High speed 3/8" electric drill w/clutch
after 72 hours from time of delivery!
Page 1
INSTALLATION GUIDELINES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90015501 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Bluegrass Playgrounds 90015501 Series

  • Page 1 INSTALLATION GUIDELINES 5” ARCH SWING FRAME 8’ - 1 BAY #90015501XX USER GROUP: 2 - 12 RECOMMENDED CREW: 2 people TOOLS REQUIRED: 1/4” Allen Head Tool Level Tape measure Auger / Post hole digger / Shovel High speed 3/8” electric drill w/clutch NOTE: Use of any other driver may result in damage to tool and/or hardware! INSTALLATION TIME: 1 Hour...
  • Page 2 INSTALLATION GUIDELINES STEP 1 Refer to PLAN VIEW and FOOTING LAYOUT to locate position of swing frame. STEP 2 Excavate footing as shown in FOOTING LAYOUT and FOOTING DETAIL. Place a 2” spacer block in the bottom of each hole. STEP 3 Select arched swing frame ends, top bar and four set screws.
  • Page 3 INSTALLATION GUIDELINES ELEVATION VIEW MODEL NUMBER: 90015501XX Page 3 DATE: 05/04/2009...
  • Page 4 INSTALLATION GUIDELINES FOOTING LAYOUT and USE ZONE FOOTING ELEVATION MODEL NUMBER: 90015501XX Page 4 DATE: 05/04/2009...
