GST-806
Assembly Instruction
GST-806 is a vehicle mounted antenna holder, designed
for high speed GPR surveys. Its height is easily
adjusted to fit different vehicles.
GST-806 vehicle mount can be used with all
Geoscanners airborne antennas from the Gekko-, HA-
and FLB-series. It can also be used with the GCB-1000
ground coupled antenna with the proper adapter and
restricted speed of acquisition.
*No antennas or accessories are included with GST-806. Antennas and accessories are purchased separately.
The antenna in this instruction is an examples an antenna that can be used with GST-806. For more information
contact the Geoscanners AB Sales Department +46(0)92153020. ©2015 Geoscanners AB, Sweden.
The standard GST-806 can easily be customized for
specific mounting points on a vehicle or deployment
needs. Currently there are two standard accessories:
vehicle mount for snow mobiles and skis for snow
deployment. Please contact us if you need other
customization options.
www.geoscanners.com | info@geoscanners.com
REV:EN261114-02
Advertisement
Summary of Contents for Geoscanners AB GST-806
- Page 1 *No antennas or accessories are included with GST-806. Antennas and accessories are purchased separately. The antenna in this instruction is an examples an antenna that can be used with GST-806. For more information contact the Geoscanners AB Sales Department +46(0)92153020. ©2015 Geoscanners AB, Sweden.
- Page 2 By pressing down the locking mechanism, insert Repeat the previous step on the other side. one of the black pipes into the back frame. It will lock automatically once in place. Copyright 2006-2014 © Geoscanners AB...
- Page 3 REV:EN261114-02 Repeat steps 3-4 to insert the black pipes into the Insert the provided antenna screws. front frame of GST-806. Use the screws to secure your antenna. The Connect the survey wheel cable once your antenna should be oriented so that the labels are antenna is in place.
- Page 4 GST-806 Customization Options Custom vehicle mount for snow mobiles. The Ski accessory for deployment on snow. The assembly instructions are found on page 6. assembly instructions are on page 7. Copyright 2006-2014 © Geoscanners AB...
- Page 5 Use quick release bolts to adjust the height of the sure that it is secured. vehicle mount and antenna. Adjust the front height of the GST-806 vehicle Use the pre-drilled holes and quick-release bolts mount by sliding the front frame up or down to to secure the position of the front frame.
- Page 6 Insert the provided locking screw. frame and insert the snow mobile extension as shown above. Secure the snow mobile extension by using the GST-806 with the snow mobile extension. provided wingnut for your locking screw. Copyright 2006-2014 © Geoscanners AB...

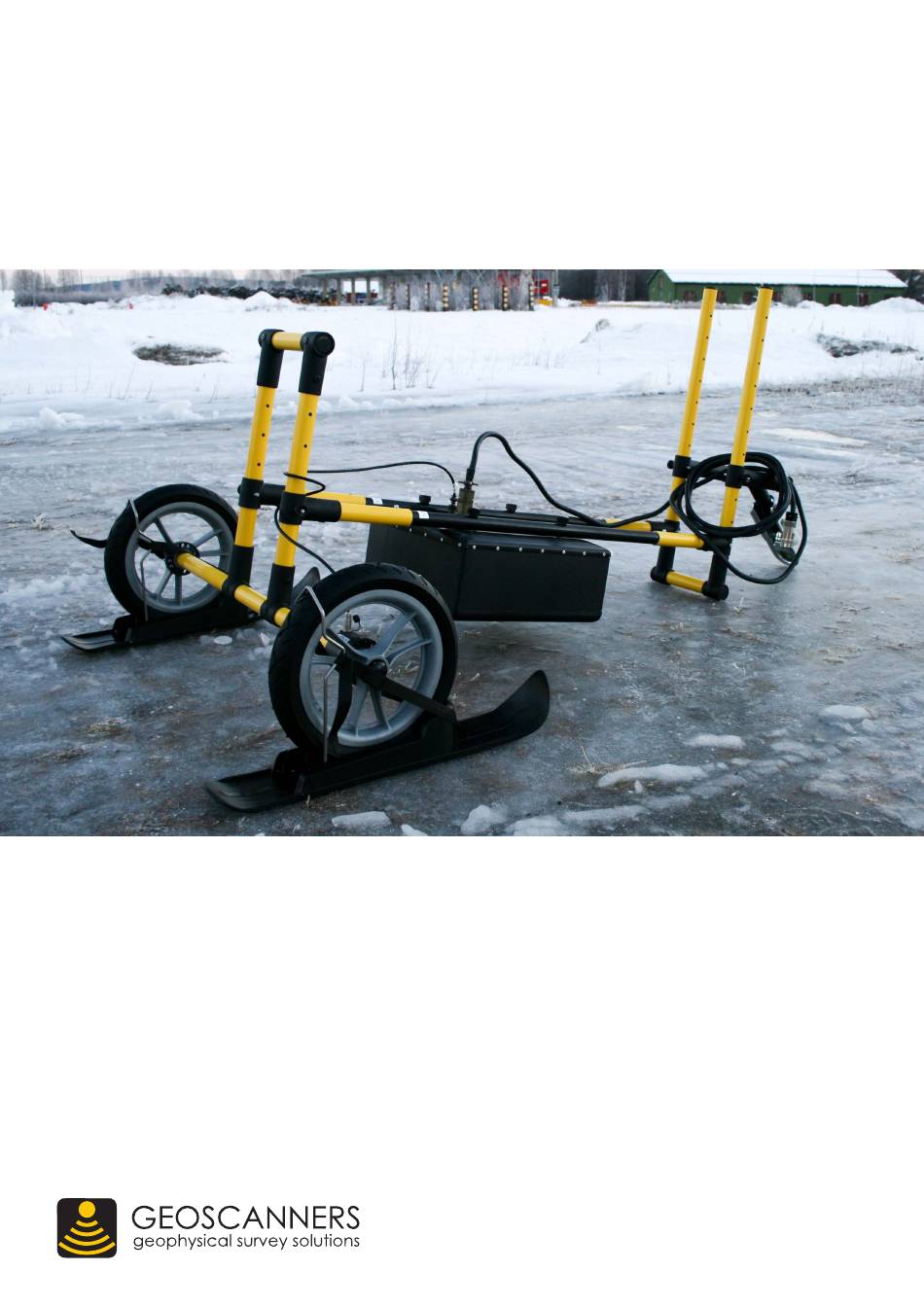

- Page 7 GST-806 ASSEMBLY INSTRUCTION REV:EN261114-02 SKI EXTENSION FOR GST-806 Slide the provided ski under one of the GST-806 Lift the metal fixture so that it presses the wheel. wheels. Pull the ski bands around the wheel. Secure the bands as shown above.
