Summary of Contents for SensAble AccSens Plus

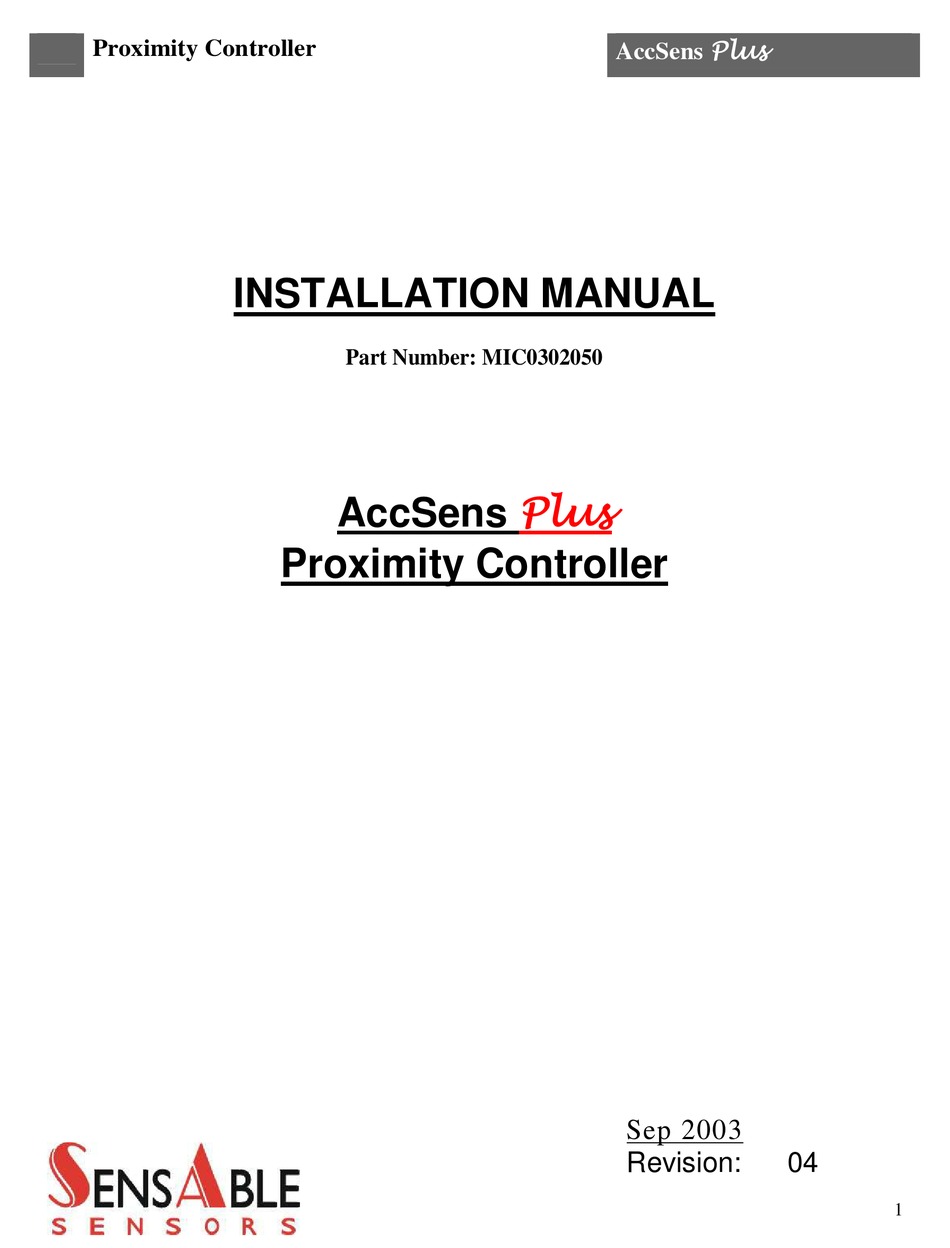

- Page 1 AccSens Plus Proximity Controller INSTALLATION MANUAL Part Number: MIC0302050 Plus AccSens Proximity Controller Sep 2003 Revision:...
- Page 2 Plus AccSens Proximity Controller Part 1: Installation Manual 1.1 Introduction Plus The AccSens stand-alone proximity controller provides total control of up to 8 independent access points and two thousand users without the requirement of a personal computer or expensive software associated with online systems.
- Page 3 1.3 Example of installation layout: Symbol Key: MiniNode Pico Prox Door 7 Door 6 Door 5 AccSens Plus Passage door 1 (Request to Exit) Door 2 Door 3 Door 4 Reception Cable route Fig. 01 Plus 1.4 Installation and wiring of AccSens...
- Page 4 Step1: From the positive (12V DC) leg of your power supply (preferably a 2A supply), take a wire to the first Plus terminal (~) on the AccSens unit and bridge it out with the common of relay 1 and also to the common of relay 2.
- Page 5 Once your cable has been run you are then ready to wire up the remainder of your access control system in a daisy chain type formation. The wiring is done according to Fig.03 below. There are a number of options to choose from when selecting your reader head. The following options are examples of the options available to you: •...
- Page 6 Step 2: Now you can wire in your Pico Prox reader into terminals12, 11, 10, 9 and 8 of your MiniNode as follows: MiniNode Terminal Description Reader head Cabling Description Terminal 8 Reader head LED control Blue LED Control Terminal 9 Data line Green DATA Line...
- Page 7 Plus 1.5.4 Wiring of fire emergency switch: AccSens AccSens NC contact or Pushbutton on fire alarm panel Fig.04 In case of emergency all doors can be opened at once by opening the emergency input (EXT 2) of the Plus AccSens unit via a latching normally closed contact of the fire alarm panel.
- Page 8 1.6.1 Wiring of DB – 25M Connector Plus Refer to Fig.05. Connect a 5 core comms cable between your AccSens unit and the printer and do the following: Step 1: Plus Make a connection between the GND terminal on the AccSens unit and pin number 7 (GND) on your RS232 DB –...
- Page 9 Listed below is an example of what the audit trail would look like and what the different digits represent: 26/09 15:52 0001 01 M 26/09 15:53 0001 01 E 26/09 15:55 0001 01 Z 26/09 16:00 0001 01 E 26/09 16:00 0002 01 N 26/09 16:01 0003 01 N 26/09 16:01 0001 01 Z 26/09 16:01 0002 01 A...
- Page 10 1.7 Specifications: • Input power supply 9 – 16V DC 7 – 12V AC • Output power supply External supply required • Relay outputs 2 Relays with change – over contacts Rating – 3A @ 24V AC/DC • Solid state inputs 2 solid state inputs.
