Summary of Contents for HEINRICH DVA8-500

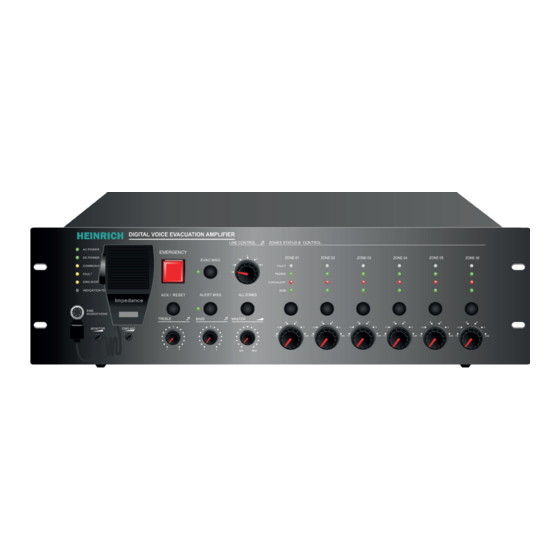

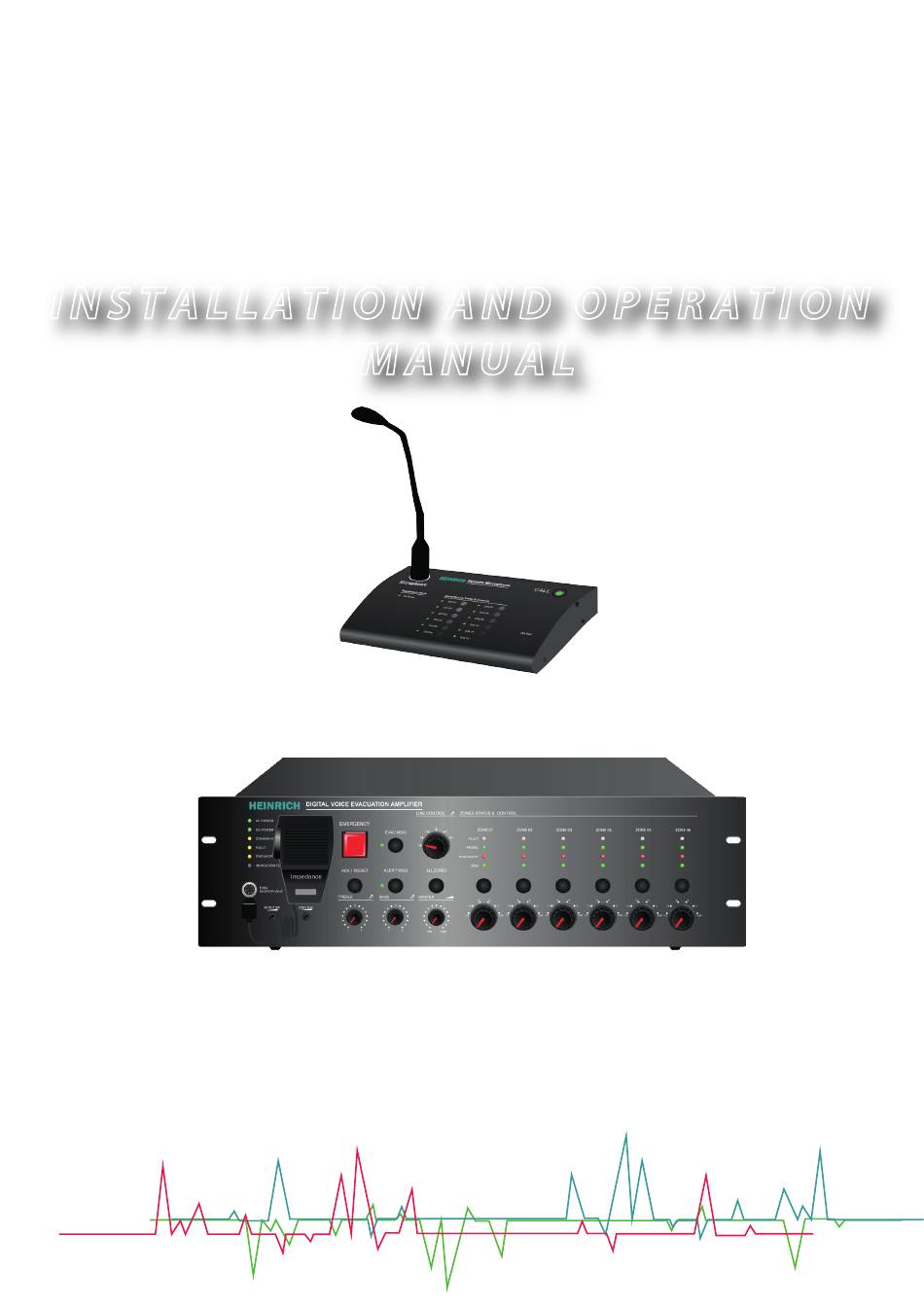

- Page 1 HEINRICH I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L DVA8-500 DVA8-500RT DVA8-500RM DVA8-500SF Technology beyond imagination...
-
Page 2: Table Of Contents
> System Overview..........................2 > Features..............................2 > System Capacity..........................2 > Introduction............................2 Controller and Slave Controller DVA8-500/DVA8-500RT........3 1.1. Front Panel.............................. 3-6 1.2. Rear Panel ..............................6 1.3. Technical Speci cations........................11 Electrical Speci cations..........................11 Mechanical Speci cations...........................11 Environmental requirement........................11 Remote Paging Microphone DVA8-500RM............12 2.1. Front Panel and Rear Panel......................12-13 2.2 Technical Speci cations........................14... -
Page 3: Features
Syatem Overview DVA8-500 system is both PA system and voice alarm system. The system Integrated with requirements of EN60849、 BS5839/8 and EN54-16 evacuate standard. Usually used in must small system which need voice evacuation or system that only need one call channel. -
Page 4: System Capacity
Important Notice for System Operation DVA8-500/DVA8-500RT （ Host/ extension host） DVA8-500 is The core of voice alarm system DVA8， built with 240W/350W/500W digital ampli er, enable to manual or auto broadcast the emergency message, also reman microphone evacuation is also possible under emer-... - Page 5 When the current partition has output, press the build close the current audio output, quick exit and quit play ； 9/10:- DVA8 & Alert Emergency Message Button & Indicator. Green—“DVA8 MSG/ALERT MSG” Voice is in broadcast information ； Yellow—“DVA8 HEINRICH...
- Page 6 In this way, each zone will output audio at the same time, We also can control di erent zones from the DVA8- 500 SFT operation. 17:- Zone Selector. To select individual six zone output open or close. HEINRICH...
-
Page 7: Rear Panel
22:- Treble Control. Increase or decrease the overall treble output. 23:- Bass Control. Increase or decrease the overall bass output. 24:- Master Volume Control. Increase or decrease the overall master volume output. 1.2. DVA8-500 & DVA8-500RT Rear Panel 14 15 HEINRICH... - Page 8 2. Do make sure the 24V DC could meet the minimum working current of the host. For exam- ple, full loading of DVA8-500 at 500W, the lead-acid battery shall supply the current higher than 27A, battery capacity higher than 27Ah and working time shall be full load- ing*27Ah*1.2 hours.
- Page 9 If you dislike the default IP address, please up the 5th dipswitch to open DHCP func- tion. Make sure your network router opened up the DHCP function. Support PC software directly connection to DVA8-500, automatic identify cross and straight cable. All communication cable shall be meet TIE/EIA-568B standards including connection to extension and remote paging microphone.
- Page 10 14:- Remote Reset Input. In case of emergency broadcast, a 0.5S or higher relay short circuit input which will be acknowledged as reset action, this input usually is from CIE equipment for remote control. This input will be ignored during normal mode. HEINRICH...
- Page 11 Con gurable Dipswitch. Upward means enable and downward means disable. 1st PIN to 5th PIN is used to set up the extension controller ID number. 6th PIN means 24V DC input. 7th PIN means standby ampli er. 8th PIN means speaker line supervision function. HEINRICH...
-
Page 12: 1.1. Technical Speci Cations
1.1. Technical Speci cations Model DVA8-500 DVA8-500RT Description Host Extension Controller AC Electrical Part Power Supply AC220V-250V, 50/60Hz Power Consumption 650W Max Current <3A Fuse 250V/5A, low speed type DC Electrical Part Power Supply 24V DC, 20V-27.5V Max Current <27A... -
Page 13: Remote Paging Microphone Dva8-500Rm
Support 24V phantom power supply, no need extra power adapter System capacity of 32 units paging microphone Balanced signal transmission ensure distance up to 600 meters Support the redundant loop cable wiring for microphone supervision Front Panel and Rear Panel: HEINRICH HEINRICH... - Page 14 7:- Power Switch. The 24V phantom power from the host DVA8-500 will direct power the paging microphone, so please ensure the connection well between the paging microphone and the host then to switch on the power.
- Page 15 Sensitivity Impedance 600 Ω Working Operation Temp +5℃ ~ + 40℃ Environment -20℃ ~ + 70℃ Storage Temp < 95% Relative Humidity Mechanical Part Dimension 240 (W) x 140 (D) x 55(H) mm Weight Finish Aluminum case in black HEINRICH...
-
Page 16: Operation Guidance
OPEN DVA8-500RT x M T RIGGER DPA500 Operation Guidance Bill of Equipments: Host, DVA8-500×1 Extension, DVA8-500RT×2 Remote Paging Microphone, DVA8-500RM×32 Software, DVA8-500SF×1 Background Music Broadcast. > Input the audio sources or microphone to the line input1-6 on rear panel, select the line... -
Page 17: Manual Broadcast Emergency Message
B) Move mouse to zone1 icon, and click the left to click the inverse button to control the zone output status. Green means output and extinguish means terminate output. HEINRICH... - Page 18 HEINRICH...
-
Page 19: Icon Introduction
The current zone is under emergency broadcast. The current system modules normal The current system module faulty The current host normal The current host system is faulty Refresh Upload Save Host Host 01 means DVA8-500 Host 02 means extension unit 001 HEINRICH... -
Page 20: Computer Con Guration
Downward the 5 PIN of con guration dipsw itch on the rear panel of host to have dynamic IP address allocation or DHPC. Please refer to below pictures to help the DHCP once IP allocation is rather slow. HEINRICH... -
Page 21: Operation
Main Page of Software as the picture above: The top is system menu and toolbar . Left is program item, middle is system status and right part is emergency status, emergency message & line inputs. Bottom is system status and time. HEINRICH... - Page 22 3. “LOG” is for checking data record of system device and module. 4. “OTHER” is for modify the user’s login password, correct the time of DVA6 -500 host and modify the speaker impedance error of DVA8-500 system, the percentage more larger means accuracy is more lower.
- Page 23 ① The red LED on the top right can only reset via the red EMERGENCY button on the front panel of DVA8-500 or “3-Emergency Reset Input” in rear panel, user can use DVA8 500SF to control the active of DVA8 message can not be o (zone can be open or o ) under the emergency mode.
-
Page 24: State
2.To choose the output audio: use the mouse to click ‘DVA8 MESSAGE’(it need to be a emergency status) or ‘LINEINPUT AUDIO’ audio from the right side. STATE 1.1.1.1. Equipment status. “STATE&EQUI P MENT ID” show the current equipment device ，including Host, extension host, and business MIC; HEINRICH... - Page 25 CIE（if device input con guration is “Level mode”）； “CONTACT OUTPUT STAUS” Device relay contact output can be controlled by click. Its output status can be programming by the contact event in the “Fire mode”； HEINRICH...
- Page 26 User can base on the condition to allow or forbid single zone of host or extension host, if check ③ box of zone under “PARTITION ENABLE CONFIGURATION” is “” means can ， “ means can not. Default is all can be. HEINRICH...
- Page 27 02, user can not change) ，if user paging on group mode, when you choose group 01means choose host and extension host both 10 zone to page。 Note：please click “Application” after modify，or the setting is not successful. HEINRICH...
- Page 28 (1) Group need to manual operation, contact usually use at uncertain factor or linkage with third party system under emergency； (2) Group operation not include relay output, while contact include relay outpu t, it is convenience to control third party to linkage HEINRICH...
-
Page 29: System Con Guration
○ 4 "<<" and ">>" means deleting all zone and add all zone to the current group Note：Please click “Application” after modify，or your setting will not be successful. 1.1.1.1.2. Device Audio priority con guration Click “SYSTEM CONFIGURATION” then click “Audio priority” as below： HEINRICH... - Page 30 1. User can on line or o line to set the system parameter and save it though“ ” as back up. 2. User can load the back up s ystem parameter though “ ”—— need manually synchronize after loading; 1.1.1.1. LOG inqiury Click “LOG” as below ： HEINRICH...
- Page 31 1.1.1.1. OTHER 1. Change password； 2. Correct system time; 3. Adjust speaker zone impedance； 1. Change user password： ① Click “User and password”： ，user input password（If wrong, system will quit automatically）； ② Password correct will show as below： HEINRICH...
-
Page 32: Attention
4) When the system set with several pieces of DVA8 – 500RT in the same cabinet, in order to keep a good heat dissipation, please leave corresponding space between each equipment. Remote Microphone DVA8 -500RM with 24V phantom power supply. When it is in dicating pow er led become dimming or indicating not working correctly, please shorten the wire.(actual HEINRICH... - Page 33 If major fault cause system not working, please contact our After Sales Service for Repair processing. Built-in accessories, Do not dismantle machine without permission in order to avoid the equipment or module’s permanent damage and electric shock hazard. 3) In order to ensure reliable work, Please ensure a good ground connection. HEINRICH...
