Summary of Contents for Hogtunes G4 SG KIT-RM

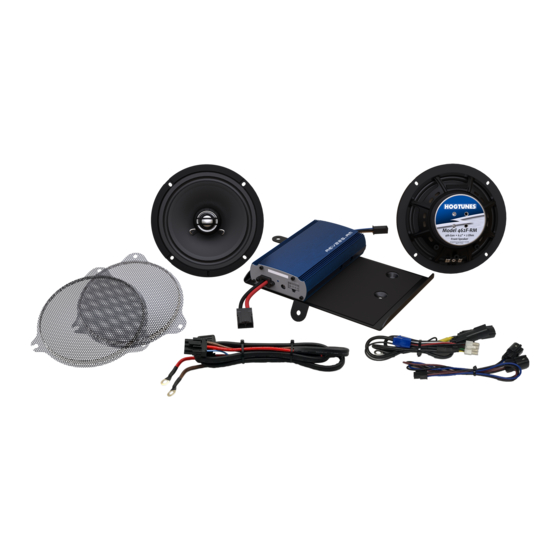

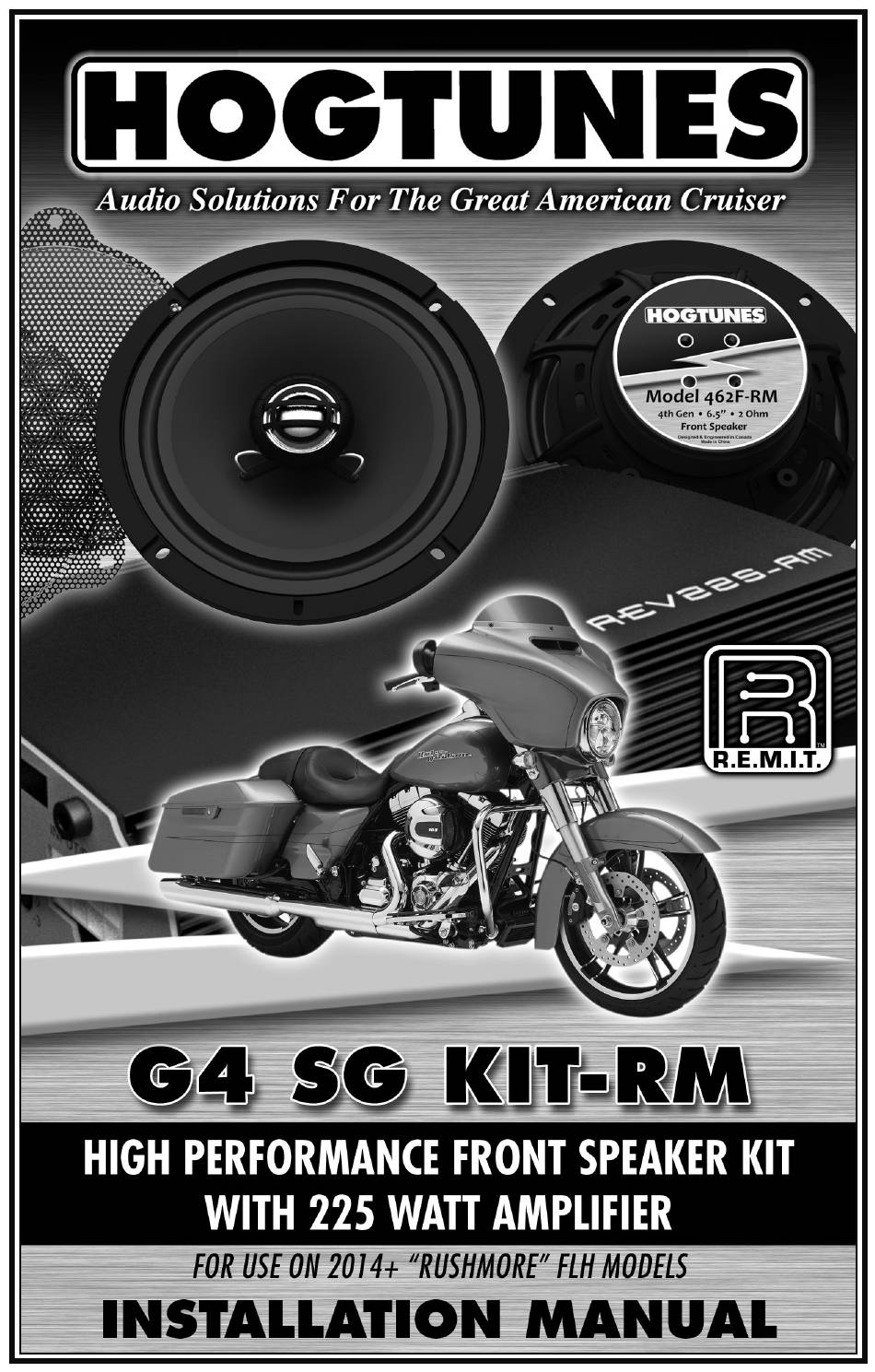

- Page 2 Thank you for choosing the Hogtunes G4 SG KIT-RM kit for 2014+ Rushmore Platform Street Glides. Since positive word of mouth is the best way to grow our business, we want your new system to work as well as it was designed to.
- Page 3 462F-RM FRont SpeakeR InStallatIon InStRuctIonS Step #1: Remove the seat and both wires (+ and -) from the battery. Remove the outer fairing/headlamp assembly and set aside. Refer to a service manual if you need help with this. NOTE: Placing a towel on the front fender can help prevent scratches or “dings”...
- Page 4 Carefully take off each speaker wire by disconnecting one at a time. Take a Hogtunes speaker and attach the factory speaker wires, noting they will only go on one way. You will see a small locator “peg” on the speaker cabinet.
-
Page 5: Installation Instructions
ReV 225-RM aMplIFIeR InStallatIon InStRuctIonS Step #1: Over top of the radio, pull up to release each wire harness from the black plate via the factory “Christmas tree” fasteners. If your bike has factory GPS, the small square antenna will need to be relocated just behind the voltmeter as shown in Fig 1.1 below. - Page 6 Step #4: On the back of each speaker cabinet, you will see pink wires that go to a plug. Separate these plugs on each side of the bike noting they may still be undone from when the speakers were installed. From the amp, take the 2 pin plug with the blue/black wires and install it into the plug going into the brake side speaker cabinet.
- Page 7 RoutIng the poweR haRneSS Locate the main power harness and plug it into the matching “pig-tail” on the side of the amp. If installing 2x REV 225-RM, run the second power harness at the same time as this step. The balance of the main wire harness will pass under the inner fairing where the main wire harness passes through on the brake side of the bike.
- Page 8 Adding a second amp is easy and will give you the incredible power of 2 x REV 225-RM. The first amp will power the front speakers as it does now, while the second amp can power speakers in Hogtunes saddlebag lids, lower fairings, or rear speaker “pods” on Tour Paks.
- Page 9 ”pods” on Tour Paks. Note: The 3rd amp mounts on the side of the clutch side speaker cabinet and requires Hogtunes FLH Side plate-RM for mounting (Drag Specialties Part #4405-0521) If a CB Module is present, it must be removed to make room for the third amp.
- Page 10 Final system adjustments From time to time, the “Motor Company” will release software updates on their website which can be downloaded, and install on your bike. For best performance of the audio system, please make the downloads are up to date! Earlier versions of the software could cause any brand of aftermarket amplifier to distort prematurely so this is an important point! How the system sounds when the bike is running is going to differ from how...
-
Page 11: Warranty Information
Ra# will Be Refused! Please Record your Amplifier’s serial # Here_________________________ Hogtunes speakers are warranted for a period of 20 years. The REV 225-RM Amplifier is warranted for 3 years from original purchase date. Proof of purchase is required for all warranty claims. - Page 12 Hogtunes products will play much louder than the Original Equipment, which can be a distraction to the rider and/or passenger. Please use caution when adjusting or playing your stereo at high volume, especially in traffic. you are a valued customer so please:...
