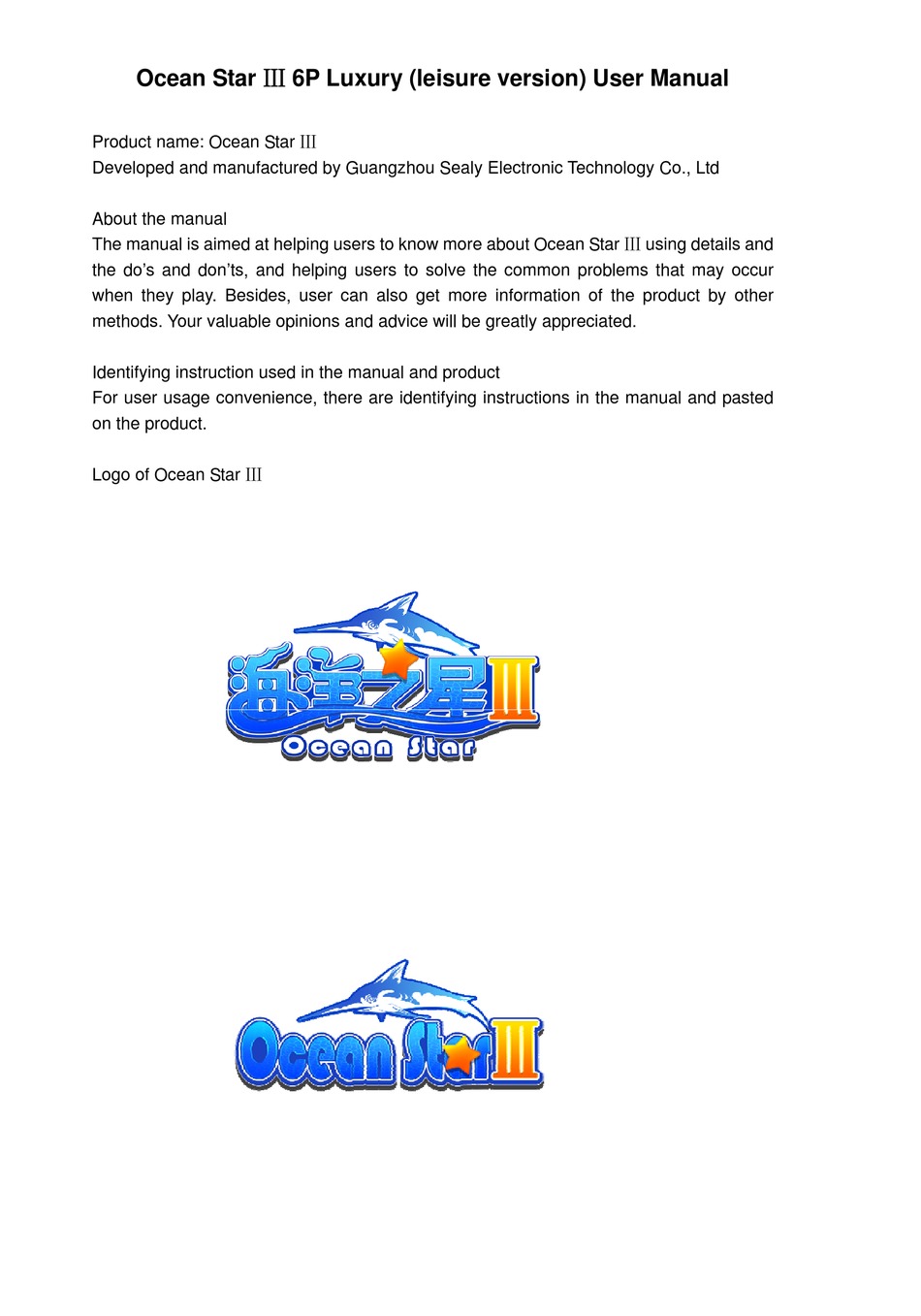

Ocean Star Ⅲ 6P Luxury (leisure version) User Manual
Product name: Ocean Star Ⅲ
Developed and manufactured by Guangzhou Sealy Electronic Technology Co., Ltd
About the manual
The manual is aimed at helping users to know more about Ocean Star Ⅲ using details and
the do's and don'ts, and helping users to solve the common problems that may occur
when they play. Besides, user can also get more information of the product by other
methods. Your valuable opinions and advice will be greatly appreciated.
Identifying instruction used in the manual and product
For user usage convenience, there are identifying instructions in the manual and pasted
on the product.
Logo of Ocean Star Ⅲ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ocean Star III 6P Luxury and is the answer not in the manual?

Questions and answers

Summary of Contents for Guangzhou Sealy Electronic Technology Ocean Star III 6P Luxury

  • Page 1 Ocean Star Ⅲ 6P Luxury (leisure version) User Manual Product name: Ocean Star Ⅲ Developed and manufactured by Guangzhou Sealy Electronic Technology Co., Ltd About the manual The manual is aimed at helping users to know more about Ocean Star Ⅲ using details and the do’s and don’ts, and helping users to solve the common problems that may occur...

  • Page 2: Table Of Contents

    Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 CATALOGUE ⅠTechnical specification........................2 ⅡIntroduction of the product feature ....................2 Ⅲ Game introduction........................3 1 How to play..........................4 2 Feature functions........................4 Ⅳ User guidance of hardware (game computer kit section)............7 1. Main content .........................7 2.

  • Page 3: Ⅰtechnical Specification

    Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 ⅠTechnical specification Working voltage: 220VAC Rated power: ≦770W (for a single unit) Size: 1750mm (L)* 1250mm (W) X*700mm (H) Weight: 150kg Note: !Do not use hard objects knocking or scratching the screen; !Products need routine maintenance, contact professionals if problem occurs;...

  • Page 4: Ⅲ Game Introduction

    Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Figure 1.1 Figure 1.2 *Six players enjoy together; *Ocean theme, more gorgeous game scene; *Players will get tickets when catch fish; *High resolution 55”LCD display; *New added abundant function; *Fresh audio feeling.

  • Page 5: How To Play

    Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 games you will have. Feature function: King fish, lightning effect, hungry shark, alloy strength, biochemical bullet, super weapon, combined fish, big whale. 1 How to play 1) Player inserts coins and presses the “start” button (the original strengthen button) to start the game and plays in the given time.
  • Page 6 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 lightning effect (figure 2.4), hungry shark (figure 2.5), alloy strength (figure 2.6), biochemical bullet (figure 2.7), super weapon (figure 2.8), combined fish (figure 2.9) and big whale (figure 2.10). Figure 2.3 Figure 2.4 Figure 2.5...
  • Page 7 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Figure 2.6 Figure 2.7 Figure 2.8 Figure 2.9...

  • Page 8: Ⅳ User Guidance Of Hardware (Game Computer Kit Section)

    Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Figure 2.10 Ⅳ User guidance of hardware (game computer kit section) 1. Main content Game computer (figure 3.1) Power Audio Video conne output output connec Figure 3.1 game computer and connector Button and ticket return control panel A (figure 3.2) Console connector...
  • Page 9 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Audio power amplifier power 12V 3A Ticket-return machine drive power 24V 8A List 1.1 There are connectors for PLAY1, PLAY2, PLAY3, Play4, PLAY5, PLAY6 and MAIN, they are corresponding to player 1, player 2, player 3, player 4, player 5, player 6 and audit setting main control.
  • Page 10 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 gthen signal k out return return button bullet feedback control light List 1.2 Place definition of the player: MAIN connector illustration: Figure 3.5 Main connector Power source connector Power source connector illustration:...

  • Page 11: Ⅴ Machine Installation

    Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Figure 3.6 power source connector definition Serial connector Figure 3.7 serial connector The serial connector links with the PC by the crossed serial connector wire which has two mother connectors on both ends. Ⅴ...
  • Page 12 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 setting volume audit Figure 3.9 main power switch When the screen is in need of repair or for other reasons to be opened, remove the two guard plates of the pull-ring on both sides of the screen and then two people (or more than two) lift the pull-ring at the same time to lift the screen and loosen the wire connector of VGA at the same time.
  • Page 13 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 When the volume needs to be adjusted, open the side box and adjust the volume on the power simplifier control panel. setting service Power on/off Volume down/ up Figure 3.11 volume adjusting button If find coin stuck in the slot, stop inserting coins and push inward the rod below the slot.

  • Page 14: Ⅵ User Setting Instruction

    Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Ⅵ User setting instruction The section is about user setting in the Ocean Star Ⅲ. If this is your first time to use the product, please carefully read the following instruction, which will show the user setting for the Ocean Star Ⅲ, so that help the users to learn and understand the details of Ocean Star Ⅲ...
  • Page 15 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Setting interface illustration: Game setting audit setting [fire] exit [up/down] move [strengthen] enter Figure 4.2 Only when you input the correct password, can you enter into the interface as figure 4.3 shows.
  • Page 16 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Maximum strengthening: restrictions of the gun strengthening up value; Minimum strengthening: restrictions of the gun strengthening down value; Background music: switch background music; Foreground music: switch the foreground music; Bullet speed: setting speed of the bullet;...
  • Page 17 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Figure 4.5 Current period record: records of last and current periods, making it convenient and clear when staff hands over to next shift. (show as figure 4.6) Figure 4.6 Mini game record: record occurrence rate and bonus of mini game.
  • Page 18 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Figure 4.7 Permanent record: record the player numbers of permanent refunding and permanent coin credits. (show as figure 4.8) Figure 4.8 These entries were recorded with the relevant data and the version number, as shown in figure 4.2 where "...

  • Page 19: Ⅶ Common Faults And Solutions

    Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 Figure 4.9 Ⅶ Common faults and solutions The section is to introduce you the common faults and their solutions of the machine. Common fault cause solution When machine improper power check power source whether suit for energized,...
  • Page 20 Ocean Star Ⅲ 6P luxury (leisure version) user manual 1.0 7/22/2014 when refund warning” ticket, please check light lottery driver mini-board whether light, if not light, check the control signal. light, check whether lottery driver mini-board refund lottery motor are ok. Lotteries get Feedback signal line once when connected...
