8 Annex I Technical data

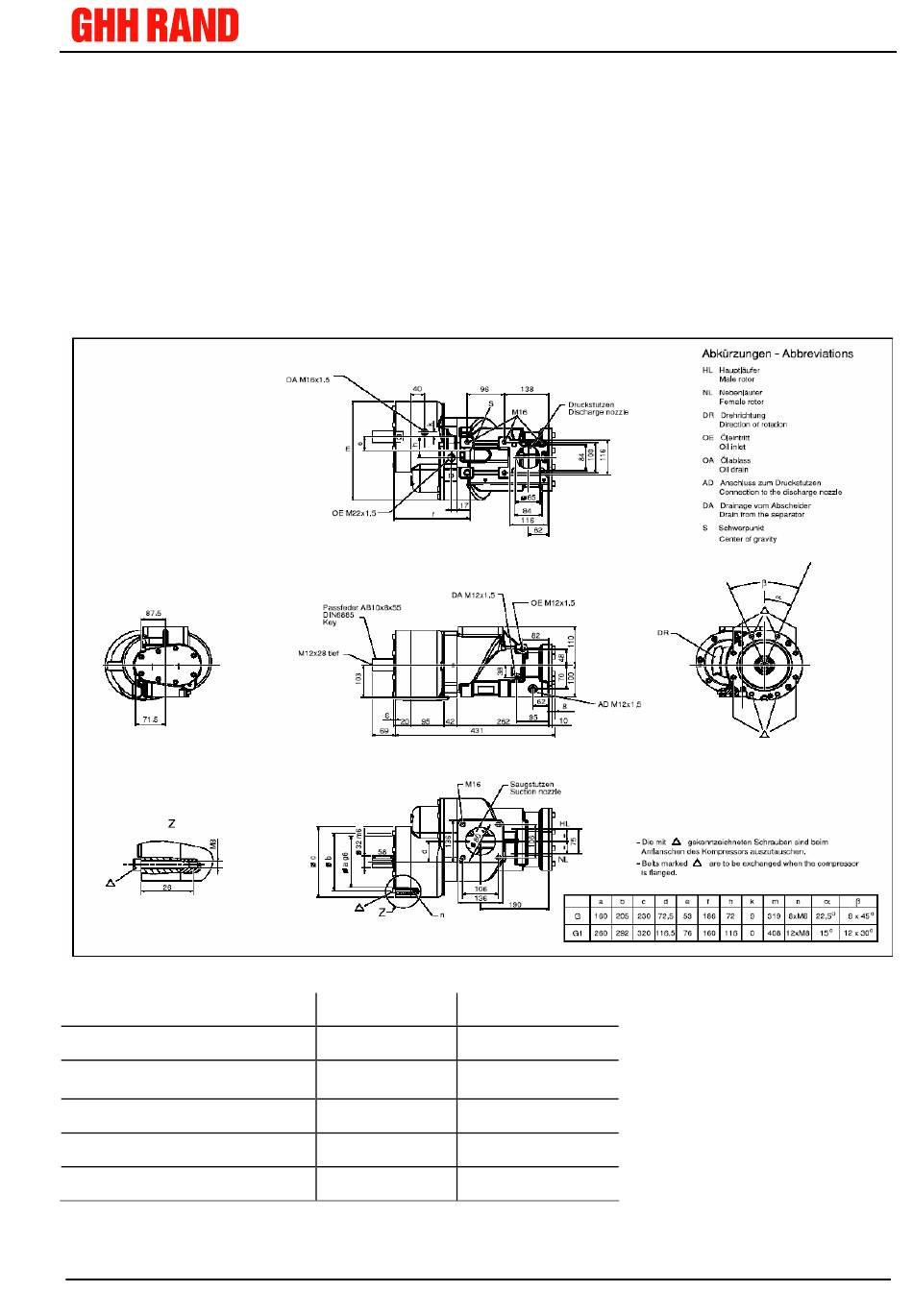

Installation drawing and 3D-files
Note
separately available. Current ver-
sions available upon request.
CF75G Technical data (Page 1 of 3)
Dimensions: 510 mm x 319 mm x 225 mm (LxWxH)
Weight: 70 kg
Permissible areas of operation:
Speed of male rotor
Suction pressure
Discharge pressure
Discharge temperature
Gear ratio
* without additional oil pump
Installation Manual Series CF (excluding encapsulated screw compressors)
min
1787 1/min 8935 1/min
atmospheric
0.62 bar(abs)
pressure
6 bar(abs) * 16 bar(abs)
1.0984
max
110°C
3.2667
23042013 Rev. A / May 2007 26 of 60
