INSTALLATION / WARRANTY INSTRUCTIONS
PRODUCT BRAND
PRODUCT NAME / CODES
PLEASE READ THESE INSTALLATION INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR MAINTAINING THIS
EQUIPMENT. THE PRODUCT IS DESIGNED FOR INSTALLATION AND MAINTENANCE IN ACCORDANCE WITH
RELEVANT AUSTRALIAN STANDARDS (AS3000) AND LOCAL REGULATIONS (WHERE APPLICABLE), BY AN
AUTHORISED AND LICENCED ELECTRICIAN. THE INSTALLATION INSTRUCTIONS WERE CORRECT AT THE TIME OF PRINT.
TO REFLECT CHANGES IN TECHNOLOGY AND AUSTRALIAN STANDARDS; GERARD LIGHTING RESERVES THE RIGHT TO AMEND
THE INSTRUCTIONS WITHOUT NOTICE. UPDATED GUIDELINES CAN BE FOUND ON THE RELEVANT BRAND WEB SITE.
IMPORTANT - THE PRODUCT MUST BE MAINTAINED AND OPERATED IN ACCORDANCE WITH THE MANUFACTURER'S
INSTRUCTIONS, FAILURE TO DO SO MAY DAMAGE THE PRODUCT AND SERVICES. IT IS STRONGLY RECOMMENDED THAT THIS
IMPORTANT NOTE BE COMMUNICATED TO THE OWNER AND OR OPERATOR OF THE INSTALLATION AT THE TIME OF SITE
COMMISSIONING. GOOD PRACTICE DOES NOT RECOMMEND THE 24/7 USE OF PRODUCTS WITHOUT THE APPLICATION OF
SUITABLE SWITCH CYCLE INTERVALS. FURTHERMORE, WITH THE OMISSION OF NOMINATED SURVIVAL CURVES AND OR
RECOMMENDED OPERATING HOURS, PRODUCT DESIGN EXPECTATIONS PROVIDE FOR A CONTINUAL DAILY USAGE OF 6 HOURS
FOR RESIDENTIAL APPLICATIONS AND A CONTINUAL DAILY USAGE OF 12 HOURS FOR COMMERCIAL AND INDUSTRIAL
APPLICATIONS. ALL PRODUCTS MUST BE THOROUGHLY CLEANED ON A REGULAR BASIS AT INTERVALS THAT REFLECT IN THE
INSTALLATION ENVIRONMENT, ENSURING THE OPTICAL PERFORMANCE, TOGETHER WITH THE ELECTRICAL, MECHANICAL AND
STRUCTURAL INTEGRITY AS DESIGNED, IS MAINTAINED THROUGHOUT THE SERVICE LIFE OF THE PRODUCT.
1. PRODUCT SPECIFICATION:
Product brand
Type of Protection
IP Rating - for interior products, the IP rating nominated
is "from below the ceiling" unless specifically nominated.
Nominal design Voltage
Luminaire Specification:
Important – when installing electronic or HID lighting equipment, the installer must consider the in-rush start current (if any) as
documented on the control gear identification label when selecting appropriate circuit controls or protective devices.
Power factor
Nominal Freq. (Hz)
Rated Maximum Ambient Temperature
Suitable for direct mounting on flammable surfaces
Dimmable (if relevant refer brand web for approved list)
Installation orientation
Designed application
Rated average design life
2. APPROVALS: The RCM marking of this product applies to AS/NZS CISPR15 (EMC) "Limits and methods of
measurement of radio disturbance characteristics of electrical lighting and similar equipment". This
product is designed to conform to AS/NZS60598 "Luminaires, general requirements and tests".
3. STORAGE: Prior to installation products are to be stored in cool and dry conditions.
4. APPLICATION: The installation application and orientation of the product is designed in accordance with the nominated
product IP rating, class designation and these installation instructions. Installation environments and operating conditions
beyond these instructions are not recommended.
5. INSTALLATION / GENERAL: Installation of the product is to be completed by an authorized and licensed electrician, in
accordance with these instructions, relevant Australia standards and local regulations (where applicable). Termination of product
wiring, together with the installation of the product must be in a manner and orientation that maintains the integrity of the
designated IP rating of the product For electronic control equipment (when supplied) DO NOT MEGGER between A and N.
6. INSTALLATION / SPECIAL CONDITIONS (relevant only for products approved for such an installation):
(a) products installed in high wind environments must have suitable installation / fastening methods applied to ensure the
product's mounting points are not damaged through, corrosion, constant vibration and or movement. Exterior products are
designed with precise vertical aiming limits, which should not be exceeded. Any vertical floodlight aiming requirements should
be specifically validated in writing with the relevant brand before consideration.
PAGE 1 OF 8
- PIERLITE

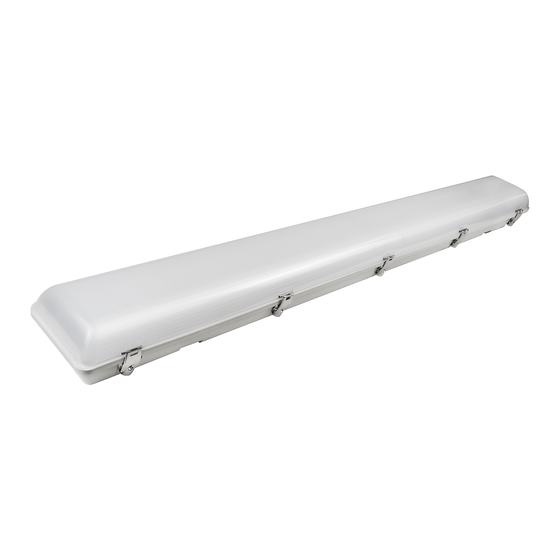

- BWP LED PRO 2 Weatherproof Batten
For the latest product online reference
data,
simply install and activate a QR
code scanner application on your
smartphone. For more information refer
brand web.
COPYRIGHT GERARD LIGHTING
Gerard Lighting Pty Ltd
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 |
Issue date: 11/2/19
- Pierlite
- Class I
- IP 65
- 240V
- 0.9
- 50 Hz
- 40°C
- NO
- NO
- Ceiling Mount
- Exterior
- 72,000 hours (to L70)
ABN 71 115 184 999
www.gerardlighting.com.au
V12018
Advertisement
Table of Contents
Summary of Contents for Gerard Lighting PIERLITE BWP584E6
- Page 1 AUTHORISED AND LICENCED ELECTRICIAN. THE INSTALLATION INSTRUCTIONS WERE CORRECT AT THE TIME OF PRINT. TO REFLECT CHANGES IN TECHNOLOGY AND AUSTRALIAN STANDARDS; GERARD LIGHTING RESERVES THE RIGHT TO AMEND THE INSTRUCTIONS WITHOUT NOTICE. UPDATED GUIDELINES CAN BE FOUND ON THE RELEVANT BRAND WEB SITE.
- Page 2 Australian Consumer Law then but not otherwise;- (a) the Company is not liable in tort for any loss or damage suffered by the customer or by any third party; and (b) in no circumstances is Gerard Lighting liable to the customer or to any third party for any loss of profits, loss of anticipated savings, economic loss or interruption of business or for any indirect or consequential loss (Consequential Loss).
- Page 3 Gerard Lighting Pty Ltd 96-112 Gow Street, Padstow, NSW 2211 T: 02 9794 9300 | www.gerardlighting.com.au Issue date: 11/2/19 Product Specification & DIP Switch Settings (1200mm/600mm/DALI/NON-DALI/Sensor in 4000k) Luminaire Drive Current Lumens DIP Switch- Line Product Code Description Wattage Option...
- Page 4 Gerard Lighting Pty Ltd 96-112 Gow Street, Padstow, NSW 2211 T: 02 9794 9300 | www.gerardlighting.com.au Issue date: 11/2/19 Product Specification & DIP Switch S ettings (1200mm/600mm/DALI/NON-DALI/Sensor in 6500k) Luminaire Drive Current Lumens DIP Switch- Line Product Code Description Wattage...
- Page 5 Gerard Lighting Pty Ltd 96-112 Gow Street, Padstow, NSW 2211 T: 02 9794 9300 | www.gerardlighting.com.au Issue date: 11/2/19 Service & Operation BWP LED PRO2 – Emergency Codes only Normal Operation: Maintained Emergency Operation. Battery: Sealed Lithium Iron Phosphate (LiFePO4) rechargeable battery pack. As per AS/NZS 2293, it is required that the battery pack is discharged and recharged at least once every 6 months.
-
Page 6: Installation
Gerard Lighting Pty Ltd 96-112 Gow Street, Padstow, NSW 2211 T: 02 9794 9300 | www.gerardlighting.com.au Issue date: 11/2/19 Installation Step 1: Take the Weatherproof Batten and Accessories out from the packaging. Step 2: Open the Clips Step 3: Take the gear tray out. - Page 7 Gerard Lighting Pty Ltd 96-112 Gow Street, Padstow, NSW 2211 T: 02 9794 9300 | www.gerardlighting.com.au Issue date: 11/2/19 Step 4: Take the cable gland out and connect the AC cable. Step 5: Tighten the cable gland Step 6: Fasten the clips...
- Page 8 Gerard Lighting Pty Ltd 96-112 Gow Street, Padstow, NSW 2211 T: 02 9794 9300 | www.gerardlighting.com.au Issue date: 11/2/19 Step 7: Install the batten on the ceiling. Line Drawing (2ft) Line Drawing (4ft) PAGE 8 OF 8 COPYRIGHT GERARD LIGHTING...
-
Page 9: Technical Data
Independent DALI sensor with Photocell Advance Pierlite Codes: BWP584D4M; BWP584D6M Applications Occupancy detector with daylight harvest suitable for building into the xture: Of ce / Commercial Lighting Classroom Use for new luminaire designs and installations Features Daylight harvest function to regulate light output for maintaining required lux level Special photocell to measure and differentiate natural light from LED light from behind the xture cover Photocell Advance Tri-level dimming control based upon occupancy (also known as corridor function) -
Page 10: Functions And Features
Antenna module Buzzer Infrared remote receiver Daylight sensor Detection area Hold-time Daylight threshold 86.5 93.2 Stand-by period Stand-by diming level LED indication SYNC Push Detection Pattern Hold-time One-Key 2~50Lux Synchronisation 5s~30min Commissioning Photocell Advance control This sensor is specially designed for small scale, decentralised retro t project, which contains a DALI power supply circuit and gives DALI output to the DALI driver to carry out on/off and dimming command. - Page 11 Synchronisation Function By connecting the “SYNC” terminals in parallel (maximum 10pcs, see wiring diagram), no matter which sensor detects motion, all HCD418/DH in the group will turn on the lights (ambient natural light is below daylight threshold). The detection area is widely enlarged in this way while other settings such as hold-time, stand-by period, stand-by dimming level and daylight threshold on each individual unit stay the same.
-
Page 12: Dip Switch Settings
Wiring Diagram DALI DALI Push Sync LED Driver HCD418/DH HCD418/DH HCD418/DH Sync Push Sync Push DALI DALI DALI N L DALI N L LED Driver LED Driver DIP Switch Settings Detection Range I – 100% Sensor sensitivity can be adjusted by selecting the combination on the DIP 100% II –... - Page 13 Stand-by period (corridor function) This is the time period you would like to keep at the low light output level I – 0s before it is completely switched off in the long absence of people. II – 10s III – 1min 1min Note: “0s”...
- Page 14 Brightness +/- Press these two buttons to adjust the light output brightness and set a new target lux level. The built-in daylight sensor can measure Scene program - 1-key commissioning 1. Press button “Start” to program. 2. Select the buttons in “Detection range”, “Daylight threshold”, “Hold-time”, “Stand-by time”, “Stand-by dimming level” to set all parameters.
-
Page 15: Detection Pattern
Detection Pattern Ceiling mounted detection pattern (m) Wall mounted detection pattern (m)
