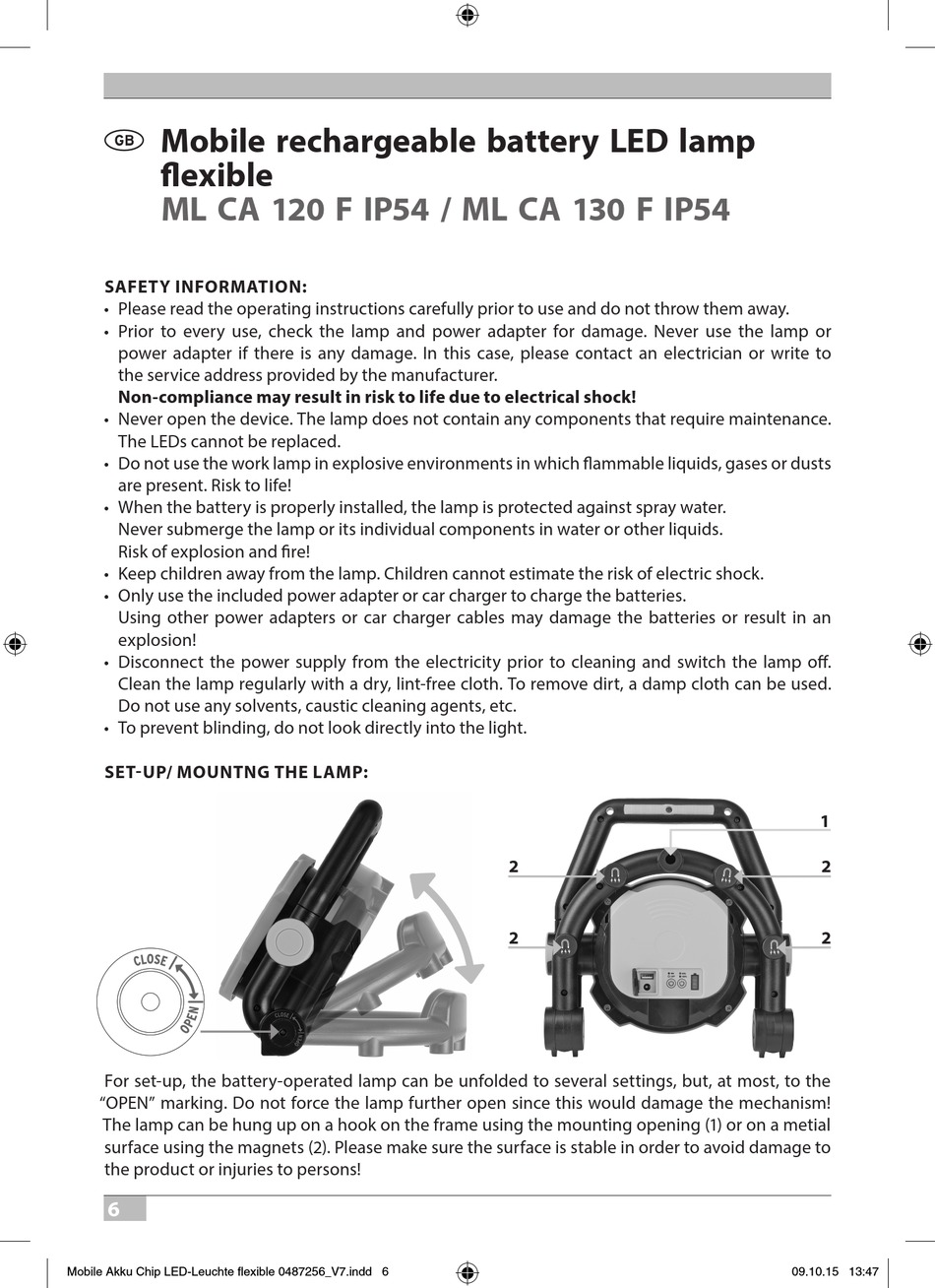

Mobile rechargeable battery LED lamp
D
flexible
ML CA 120 F IP54 / ML CA 130 F IP54
SAFEty INFOrMAtION:
• Please read the operating instructions carefully prior to use and do not throw them away.
• Prior to every use, check the lamp and power adapter for damage. Never use the lamp or
power adapter if there is any damage. In this case, please contact an electrician or write to
the service address provided by the manufacturer.
Non-compliance may result in risk to life due to electrical shock!
• Never open the device. The lamp does not contain any components that require maintenance.
The LEDs cannot be replaced.
• Do not use the work lamp in explosive environments in which flammable liquids, gases or dusts
are present. Risk to life!
• When the battery is properly installed, the lamp is protected against spray water.
Never submerge the lamp or its individual components in water or other liquids.
Risk of explosion and fire!
• Keep children away from the lamp. Children cannot estimate the risk of electric shock.
• Only use the included power adapter or car charger to charge the batteries.
Using other power adapters or car charger cables may damage the batteries or result in an
explosion!
• Disconnect the power supply from the electricity prior to cleaning and switch the lamp off.
Clean the lamp regularly with a dry, lint-free cloth. To remove dirt, a damp cloth can be used.
Do not use any solvents, caustic cleaning agents, etc.
• To prevent blinding, do not look directly into the light.
SEt-UP/ MOUNtNG tHE LAMP:
For set-up, the battery-operated lamp can be unfolded to several settings, but, at most, to the
"OPEN" marking. Do not force the lamp further open since this would damage the mechanism!
The lamp can be hung up on a hook on the frame using the mounting opening (1) or on a metial
surface using the magnets (2). Please make sure the surface is stable in order to avoid damage to
the product or injuries to persons!
6
Mobile Akku Chip LED-Leuchte flexible 0487256_V7.indd 6
2
2
1
2
2
09.10.15 13:47
Advertisement
Related Manuals for Hugo Brennenstuhl ML CA 120 F IP54
Summary of Contents for Hugo Brennenstuhl ML CA 120 F IP54
- Page 1 Mobile rechargeable battery LED lamp flexible ML CA 120 F IP54 / ML CA 130 F IP54 SAFEty INFOrMAtION: • Please read the operating instructions carefully prior to use and do not throw them away. • Prior to every use, check the lamp and power adapter for damage. Never use the lamp or power adapter if there is any damage. In this case, please contact an electrician or write to the service address provided by the manufacturer.
- Page 2 Mobile rechargeable battery LED lamp flexible Operating Instructions SwItCHING tHE LAMP ON AND OFF: 100% 100% Press the (B) button to turn on the lamp. By pressing the (A) button, the brightness can be set to 100% or 50%. When selecting 50%, the service life of the lamp extends in comparison to the 100% setting as it consumes less energy. Press the (B) button again to turn the lamp off. BAttEry StAtUS DISPLAy (C): Displays the current charging status of the battery, or, how much energy is still available. If all 4 LEDs are lit, the battery is fully charged. If the battery is nearly empty, the LED blinks 5 times and the battery status indicator blinks continuously. Then the lamp will remain lit for approx. 5-10 minutes, before the deep discharge protection shuts the lamp off. This provides sufficient time to replace the battery or stop working.
- Page 3 Operating Instructions Mobile rechargeable battery LED lamp flexible rEPLACING tHE BAttEry: The battery can be easily and quickly replaced. Press the lock (F) forward and then slide the battery up and out, see drawing. It is therefore possible to charge one battery and continue working with a separately available replacement battery. tECHNICAL SPECIFICAtIONS: type description ML CA 120 F IP54 ML CA 130 F IP54 Output 20 W 30 W Batteries Li-Ion 7.4 V, 7800 mAh Li-Ion 7.4 V, 10400 mAh Power adapter Input power 100-240 V AC, 50/60 Hz, 0.8 A...
- Page 4 Mobile rechargeable battery LED lamp flexible Operating Instructions Disposal Do not dispose of electrical appliances with the household rubbish! In accordance with Directive 2012/19/EC on waste electrical and electronic equipment and the corresponding national law, used electrical equipment must be separated from the rubbish and reused or recycled in an environmentally responsible manner. Please contact your local authorities for available disposal options for your used device. Incorrect disposal of batteries and rechargeable batteries can harm the environment! Batteries and rechargeable batteries do not belong in the household waste.
