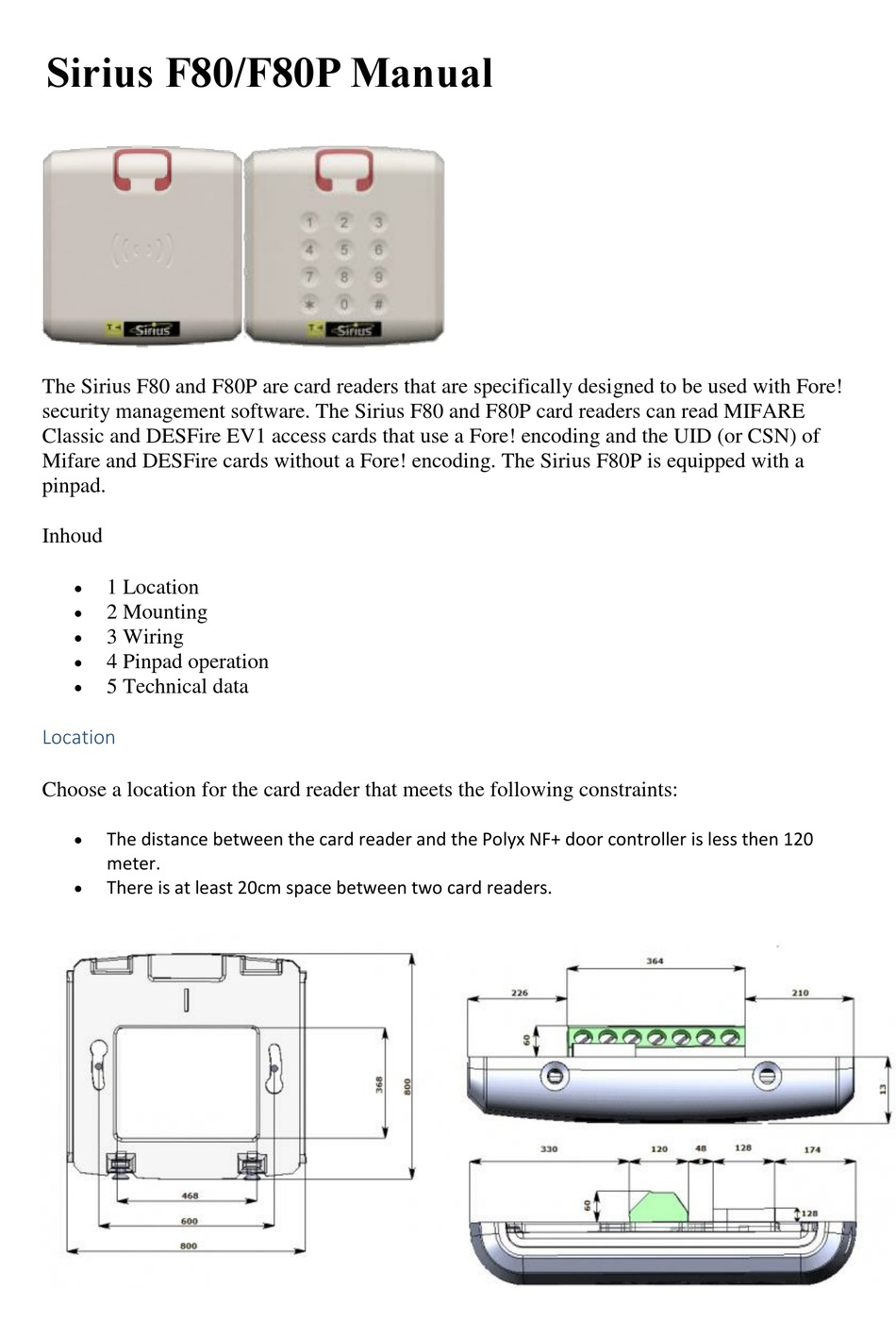

Sirius F80/F80P Manual

The Sirius F80 and F80P are card readers that are specifically designed to be used with Fore!

security management software. The Sirius F80 and F80P card readers can read MIFARE

Classic and DESFire EV1 access cards that use a Fore! encoding and the UID (or CSN) of

Mifare and DESFire cards without a Fore! encoding. The Sirius F80P is equipped with a

pinpad.

Inhoud



1 Location









Location

Choose a location for the card reader that meets the following constraints:



The distance between the card reader and the Polyx NF+ door controller is less then 120

meter.



There is at least 20cm space between two card readers.

Table of Contents

Do you have a question about the Sirius F80 and is the answer not in the manual?

Page 1 Sirius F80/F80P Manual The Sirius F80 and F80P are card readers that are specifically designed to be used with Fore! security management software. The Sirius F80 and F80P card readers can read MIFARE Classic and DESFire EV1 access cards that use a Fore! encoding and the UID (or CSN) of Mifare and DESFire cards without a Fore! encoding.
Page 2 Mounting The Sirius F80 and F80P are designed to be mounted on top of a 80mm junction box.  Pull the cable through the mounting plate.  Mount the back plate using two screws.  Connect cable to the 7-pin screw connector.
Page 3 White/Orange and White/Green Orange and Green Pinpad operation To open a door using your access card and a pincode:  Present your access card to the reader. The LED will start blinking red/green slowly  Enter your pincode.  Door will open. To arm the intrusion using card and pincode: ...
Page 4 Reading distance 5mm-70mm ISO14443A Mifare card Environmental rating IP64 Operating -31º to 150º F (-35º to 65º C) temperature Storage temperature -67º to 185º F (-55º to 85º C) Operating humidity 5% to 95% relative humidity non-condensing Transmit frequency 13.56 MHz Standard ISO14443 A Indicators...
