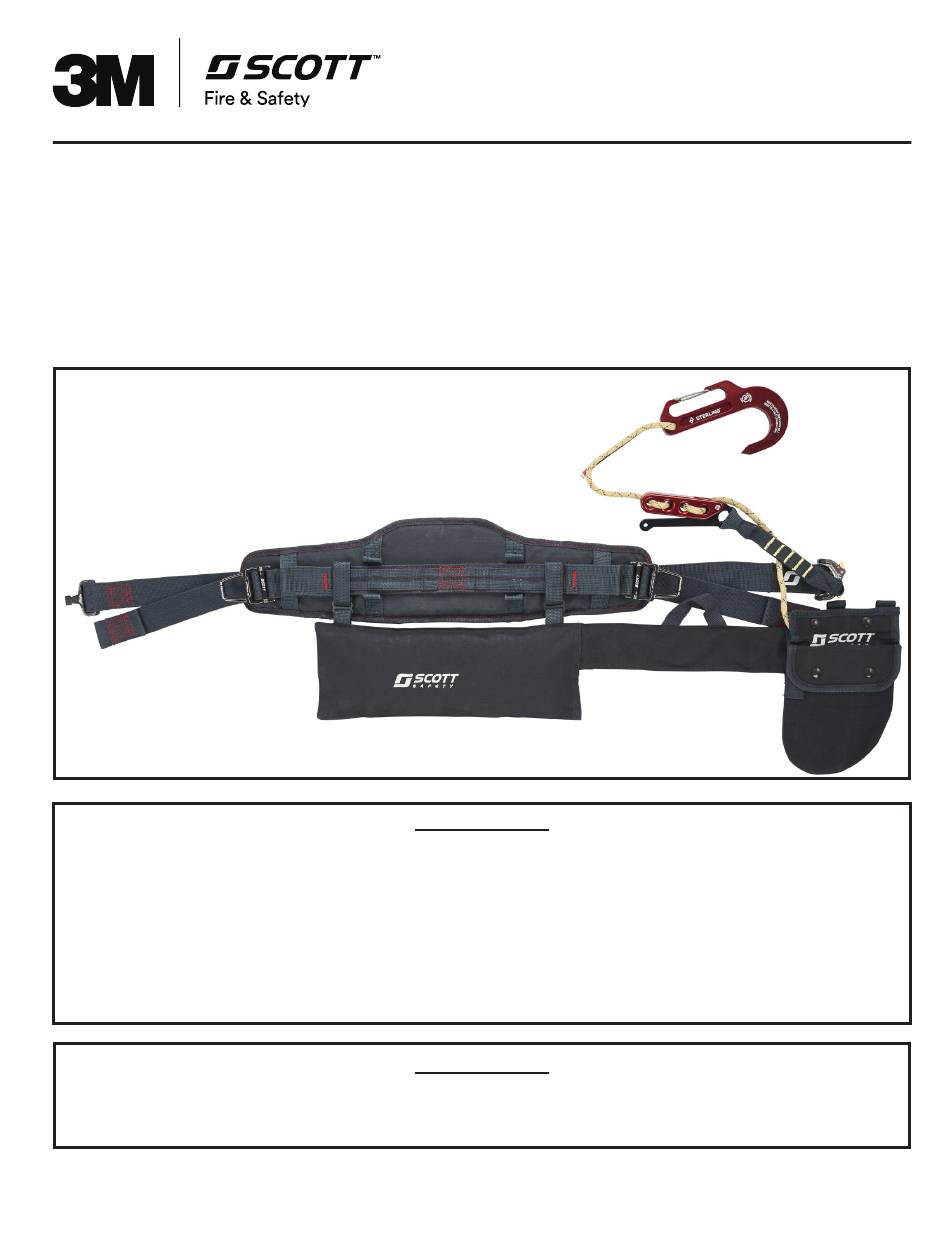

3M™ SCOTT™ EZ-SCAPE
FIRE FIGHTER SELF-RESCUE ACCESSORY
3M SCOTT AIR-PAK™ X3 PRO, AIR-PAK X3, & AIR-PAK 75
Self-Contained Breathing Apparatus (SCBA)
EZ-SCAPE PRO ON
AIR-PAK X3 PRO SCBA
WAIST PAD
THE SCOTT FIRE FIGHTER SELF-RESCUE ACCESSORY IS INTENDED FOR USE WITH A 3M SCOTT AIR-PAK X3 PRO,
AIR-PAK X3, OR AIR-PAK 75 SELF-CONTAINED BREATHING APPARATUS (SCBA) WHICH MAY SUPPORT HUMAN
LIFE IN HAZARDOUS ATMOSPHERES. FAILURE TO CAREFULLY READ AND UNDERSTAND THE FOLLOWING
INSTRUCTIONS AND/OR FAILURE TO USE THE EQUIPMENT IN ACCORDANCE WITH THE REQUIRED TRAINING
MAY RESULT IN SERIOUS INJURY OR DEATH TO THE SCBA USER.
USE THE FIRE FIGHTER SELF-RESCUE ACCESSORY ONLY AS DESCRIBED IN THESE INSTRUCTIONS AND
ACCORDING TO THE REQUIRED TRAINING. DO NOT USE ANY COMPONENTS OF THE SYSTEM ALONE OR WITH
OTHER ESCAPE SYSTEMS. DO NOT USE THE EQUIPMENT FOR ANY OTHER PURPOSE. IMPROPER USE OF THIS
EQUIPMENT MAY RESULT IN FAILURE OF THE SYSTEM WHICH COULD LEAD TO SERIOUS INJURY OR DEATH.
THIS PRODUCT IS DESIGNED AND INTENDED TO FUNCTION PROPERLY IN REASONABLE/ORDINARY FIREFIGHTING
CONDITIONS. IT HAS BEEN CERTIFIED TO THE STANDARDS CONTAINED IN THE 2017 EDITION OF NFPA 1983. LIKE
ALL EQUIPMENT, THE FUNCTIONALITY OF THIS PRODUCT MAY BE COMPROMISED BY EXTREME FIRE CONDITIONS.
OPERATING & MAINTENANCE INSTRUCTIONS
NFPA 1983 Compliant
For use with
WARNING
WARNING
Page 1 of 20
PRO
™
P/N 595305-01 Rev H 10/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for 3M SCOTT EZ-SCAPE PRO
- Page 1 WAIST PAD WARNING THE SCOTT FIRE FIGHTER SELF-RESCUE ACCESSORY IS INTENDED FOR USE WITH A 3M SCOTT AIR-PAK X3 PRO, AIR-PAK X3, OR AIR-PAK 75 SELF-CONTAINED BREATHING APPARATUS (SCBA) WHICH MAY SUPPORT HUMAN LIFE IN HAZARDOUS ATMOSPHERES. FAILURE TO CAREFULLY READ AND UNDERSTAND THE FOLLOWING INSTRUCTIONS AND/OR FAILURE TO USE THE EQUIPMENT IN ACCORDANCE WITH THE REQUIRED TRAINING MAY RESULT IN SERIOUS INJURY OR DEATH TO THE SCBA USER.
- Page 2 P/N 595305-01 Rev H 10/19 Page 2 of 20...
-
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION ................................4 PRINCIPLE OF OPERATION ............................5 TRAINING ..................................5 QUESTIONS OR CONCERNS ............................5 EXPORT AND IMPORT ..............................5 INSTALLATION ................................5 CAUTIONS AND LIMITATIONS ............................6 INSPECTION OF THE EQUIPMENT ..........................6 IDENTIFICATION OF COMPONENTS ........................... 7 REGULAR OPERATIONAL INSPECTION ........................ -
Page 4: Description
NFPA 1983, 2017 Edition – Standard on Life Safety Rope and Equip- ment for Emergency Services. The EZ-Scape Pro Fire Fighter Self-Rescue Accessory is also approved for use with a 3M SCOTT AIR-PAK X3 Pro SCBA compliant with NFPA 1981, 2018 Edition. This fire resistant waist belt and op- tional escape rope is for use in a variety of situations on fireground, including self rescue and as an attachment point. -
Page 5: Principle Of Operation
BASIC GUIDELINES FOR USE AND CARE OF THE EQUIPMENT. THESE INSTRUCTIONS The full bailout system option of the SCOTT EZ-Scape Pro Fire Fighter Self- CANNOT TAKE THE PLACE OF PERSONAL Rescue Accessory contains 50 feet of escape rope packed inside a pouch. The... -
Page 6: Cautions And Limitations
COULD CAUSE SERIOUS INJURY OR DEATH. SPECIALIST LEVEL INSPECTION The SCOTT EZ-Scape Pro Fire Fighter Self-Rescue Accessory installed on a SCOTT SCBA must be fully inspected and repacked at least once a year by a qualified individual. Refer to the SCOTT Safety Specialist Level Maintenance Manual for details. -
Page 7: Identification Of Components
U N L E S S A P P R O V E D B Y A U T H O R I Z E D Heavy use of the SCBA equipped with the SCOTT EZ-Scape Pro Fire Fighter PERSONNEL. UNAUTHORIZED USE OF PARTS... - Page 8 WAIST OPTIONAL EBSS POUCH JETTISON CLIP (QUICK RELEASE) FIGURE 3 SELF-RESCUE ACCESSORY – REAR VIEW AS INSTALLED ON SCOTT AIR-PAK X3 SCBA PARACHUTE STYLE ADJUSTER STORAGE POUCH WAIST BELT INTEGRATED D-RING BELT BUCKLE BUCKLE (M-F RELEASE) FIGURE 4 SELF-RESCUE ACCESSORY – FRONT VIEW AS INSTALLED ON SCOTT AIR-PAK X3 SCBA WARNING HANDS-ON TRAINING AND PRACTICE ARE...
-
Page 9: Regular Operational Inspection
REGULAR OPERATIONAL INSPECTION The respirator user must inspect the SCOTT EZ-Scape Pro Fire Fighter Self- WARNING Rescue Accessory as part of the REGULAR OPERATIONAL INSPECTION of the complete SCBA respirator. Refer to the Operation and Maintenance Instruc- THESE USER INSTRUCTIONS ONLY OFFER tions provided with the complete SCBA respirator for details. -
Page 10: Donning The Scba With The Fire Fighter Self-Rescue Accessory
DONNING THE SCBA WITH THE FIRE FIGHTER SELF- RESCUE ACCESSORY Perform the respirator REGULAR OPERATIONAL INSPECTION as defined in the user instructions provided with the SCBA. WARNING Fully extend the waist belt by pulling the T H E WA I S T B E LT B U C K L E M U S T B E adjuster away from the body. -
Page 11: Emergency Use Of The Fire Fighter Self-Rescue Accessory
EMERGENCY USE OF THE FIRE FIGHTER SELF-RESCUE ACCESSORY Hands-on training is required before use of this equipment in an actual emer- gency. Every emergency use situation will be different. It is the responsibility of WARNING the user to understand the use and limitations of the equipment and to make THESE USER INSTRUCTIONS ONLY OFFER the best choices possible under the circumstances. -
Page 12: After Use Of The Fire Fighter Self-Rescue Accessory
WARNING GLOVES MUST BE WORN WHILE USING THE FIRE FIGHTER SELF-RESCUE ACCESSORY (GLOVES ARE OMITTED FROM THE ILLUSTRATIONS FOR GREATER DETAIL). USE OF THIS EQUIPMENT WITHOUT GLOVES MAY RESULT IN THE PULL UP INABILITY TO PROPERLY CONTROL DESCENT WHICH COULD CAUSE SERIOUS INJURY OR DEATH. -
Page 13: Removing & Reinstalling The Jettison Clips
WARNING After an emergency use of this equipment, the entire Fire Fighter Self-Rescue Accessory must be replaced before the respirator is returned to service. ANY ESCAPE ROPE THAT IS USED FOR AN ACTUAL EMERGENCY ESCAPE MUST BE After you have terminated use of the respirator, the respirator must be removed DESTROYED AFTER USE. - Page 14 After the jettison clips are removed, perform a change of profile while maintaining use of the respirator, OR terminate use of the respirator according to the OPERA- TION AND MAINTENANCE instructions provided with the respirator. Remove the regulator, loosen the shoulder straps, and remove the respirator. DO NOT UNBUCKLE THE WAIST BELT.
-
Page 15: Removing & Reinstalling The Fixed Clips
REMOVING & REINSTALLING THE FIXED CLIPS WARNING THE USER CAN REMOVE AND REINSTALL THE (AIR-PAK X3 PRO ONLY) FIXED CLIPS AND WAIST PAD ASSEMBLY ON On AIR-PAK X3 Pro models equipped with fixed clips, the user can can remove THE AIR-PAK X3 PRO SCBA ONLY AND ONLY the fixed clips to detach the full waist pad assembly (waist pad and waist belt) WHEN THE SCBA IS NOT IN USE. -
Page 16: Use As Ladder Belt
USE AS LADDER BELT The EZ-Scape Pro Self-Rescue Accessory may be used with a Multi-Use Ladder Strap (P/N 31003385) as a ladder belt to position the user securely to a rung on a ladder while doing work that requires one or both hands. Select a rung located above the waist but below the shoulders. -
Page 17: Maintenance
MAINTENANCE WARNING Maintenance must only be performed by trained and authorized personnel in accordance with the applicable Specialist Level Maintenance Manual available DO NOT ATTEMPT ANY MAINTENANCE BEYOND from SCOTT. THE SCOPE OF THESE INSTRUCTIONS EXCEPT AS DIRECTED BY YOUR LEVEL OF TRAINING CLEANING AND YOUR RESPIRATORY PROTECTION PROGRAM. - Page 18 NOTES P/N 595305-01 Rev H 10/19 Page 18 of 20...
- Page 19 NOTES Page 19 of 20 P/N 595305-01 Rev H 10/19...
- Page 20 4320 Goldmine Road Monroe, NC 28110 Telephone 1-800-247-7257 Fax (704) 291-8330 www.3MScott.com ©3M 2019. All rights reserved. 3M and Scott are trademarks of 3M. Printed in USA P/N 595305-01 Rev H 10/19 Page 20 of 20...
