Summary of Contents for Monoprice Stitch

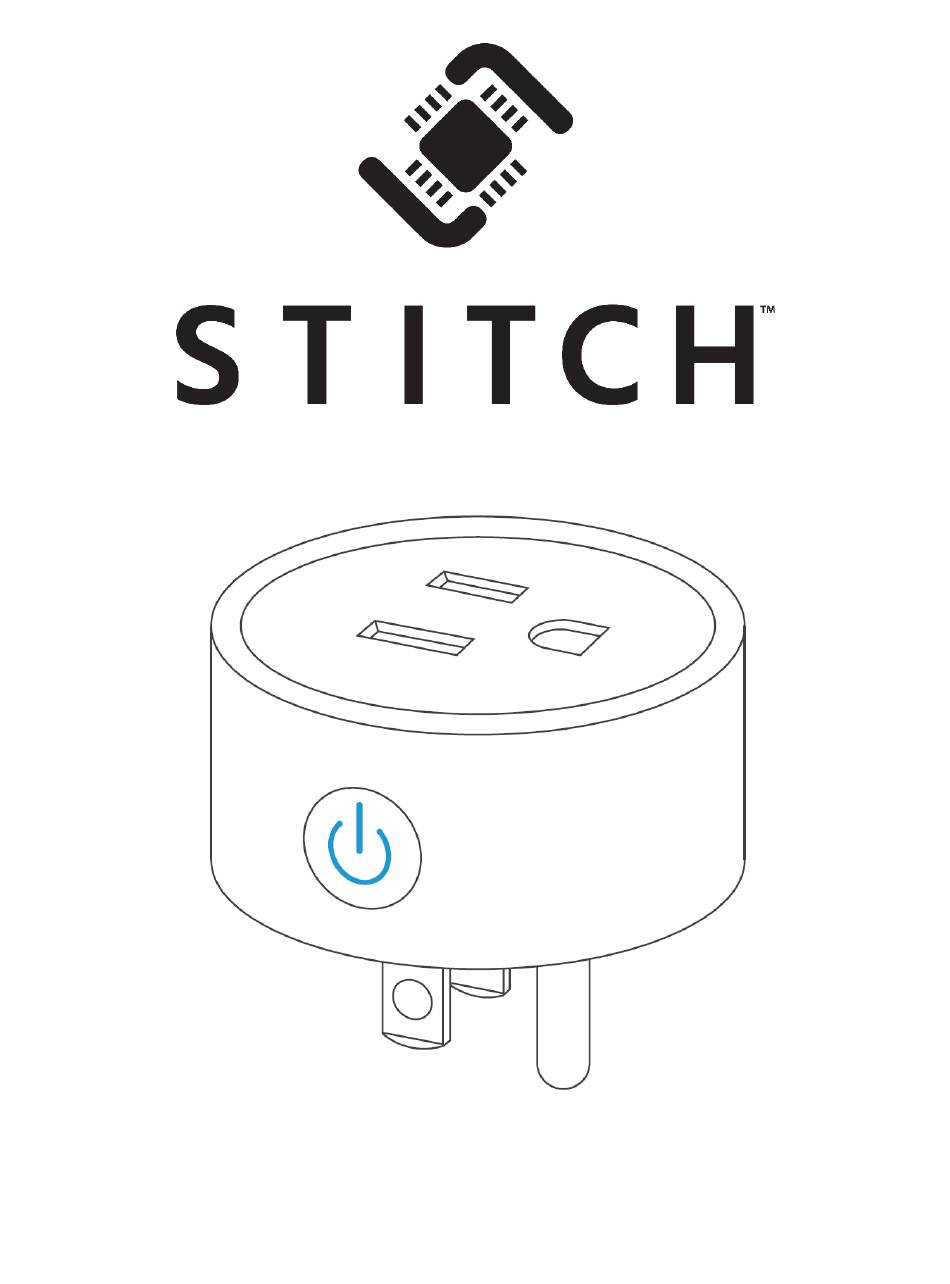

- Page 1 Mini Wi-Fi® 10A Smart Outlet P/N 41730, 41731, 41732 User's Manual...
-

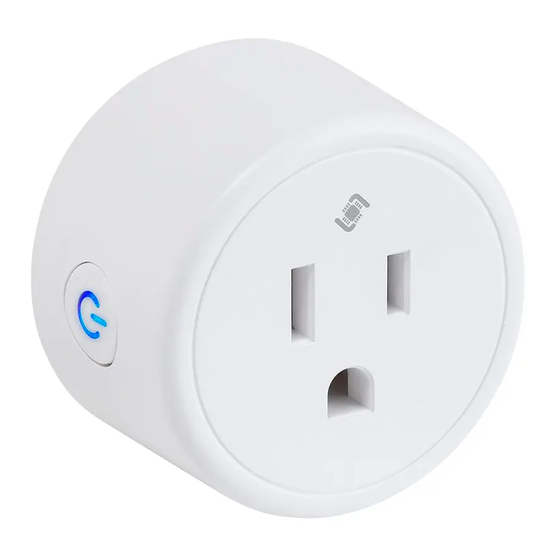

Page 2: Product Overview
TIPS • Supports 2.4GHz Wi-Fi® networks only • Easy install from the Apple® App Store® and Google Play™ • Supports Amazon Alexa™ and Google Home™ voice control • For indoor use only PRODUCT OVERVIEW 1. AC Outlet 2. Power Switch... - Page 3 CONNECTING TO WI-FI 1. Search the Apple® App Store® or Google Play™ for the STITCH™ by Monoprice™ app or scan one of the QR codes below to get to the app page in the store. Download and install to your device.
- Page 4 2. Once the app is downloaded and installed, you will be asked to register using either your phone number or email. If you choose phone, you will be sent a text with a registration code. If you choose email, you will be asked to enter a password instead of getting a registration code.
- Page 5 Quick Mode Configuration 1. Check the indicator light. If it is blinking blue about twice per second, you have started in Quick Mode. If it is blinking blue about once every 3 seconds, press and hold the Power button on the Smart Outlet for about 6 seconds until it starts blinking rapidly.
- Page 6 3. Follow the on screen instructions to connect the Smart Outlet to your Wi-Fi® network. 4. Once the app indicates that it is connected, tap Done. The indicator changes from rapidly blinking blue to solid red and the Smart Outlet is added to the Device List. Note that you can use this Smart Outlet with the Amazon Alexa™...
-
Page 7: Ap Mode Configuration
AP Mode Configuration 1. Check the indicator light. If it is blinking blue about once every 3 seconds, you have started in AP Mode. If it is blinking blue about twice per second, press and hold the Power button on the Smart Outlet for about 6 seconds until it starts blinking slowly. 2. - Page 8 3. Follow the on screen instructions to connect the Smart Outlet to your Wi-Fi® network. 4. Once the app indicates that it is connected, tap Done. The indicator changes from slowly blinking blue to solid red and the Smart Outlet is added to the app's Device List.
-
Page 9: Amazon Alexa
VOICE ASSISTANTS Amazon Alexa 1. Launch the STITCH™ app and verify that the Smart Outlet is in the Device List. 2. Edit the Smart Outlet name to something that Alexa™ will easily recognize, such as Living Room Light, Bedroom Fan, etc. - Page 10 4. Tap the More icon in the lower right corner of the Home Page to show the app menu, then tap Skills & Games in the menu.
- Page 11 5. Type STITCH by Monoprice in the search field, then tap the STITCH entry to select it.
- Page 12 6. Tap the ENABLE TO USE button, then sign in to your STITCH™ account to complete the account linking.
- Page 13 7. After your account is linked, you need to discover the device to use it. Tap the DISCOVER DEVICES button. After about 20 seconds Alexa™ will display a list of devices.
- Page 14 8. Tap Devices to control your Smart Outlet, add it to Groups or Routines, and more.
- Page 15 Google Home 1. Launch your Google Home™ app and verify that your Google Home Speaker is installed. If not, following the Google Home Speaker installation instructions. 2. Once Google Home is installed, tap + in the upper left corner of the home page to show the Add and manage screen, then tap Set up device.
- Page 16 3. Tap Have something already set up?. On the following screen, tap the Search icon (magnifying glass), then type STITCH into the search field. Select the STITCH™ by Monoprice™ entry, then following the on screen instructions to complete the account linking process.
- Page 17 5. You can now use your Google Home Speaker to control your smart devices by saying something like: OK Google, turn on the kids room fan OK Google, turn off the lamp...
-
Page 18: Online Support
ONLINE SUPPORT Monoprice is pleased to provide free online support. For order related issues, contact the Customer Service department through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com For technical issues, contact the Technical Support department through the online chat button on our website www.monoprice.com or by sending an email to... -
Page 19: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. - Page 20 This transmitter must be at least 20 cm from the user and must not be collocated or operated in conjunction with any other antenna or transmitter. STITCH™, Monoprice™, the STITCH logo, and all Monoprice logos are trademarks of Monoprice Inc.
