Summary of Contents for Fines HTB Series

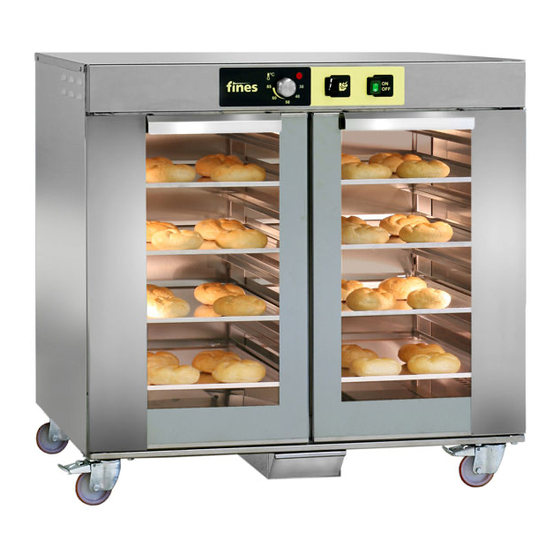

- Page 1 INSTRUCTIONS MANUAL Prover HTB HTB16-M manual HTB16-D digital HTB10-M manual HTB10-D digital ENGLISH VERSION Date of creation: 15.05.2014 Date of change:...
-
Page 2: Table Of Contents
14.0. CONTACT DETAILS ..........11 FINES – OPERATING INSTRUCTIONS – ENGLISH version... -
Page 3: Dangerous Zones
230V / 50Hz Water connection R 3/4” R 3/4” Water preasure 200 – 500 kPa (2-5 bar) 200 – 500 kPa (2-5 bar) Temperature max. 60°C max. 60°C FINES – OPERATING INSTRUCTIONS – ENGLISH version Prover HTB »HTB16,10-M in HTB16,10-D »... - Page 4 FINES – OPERATING INSTRUCTIONS – ENGLISH version Prover HTB »HTB16,10-M in HTB16,10-D »...
-
Page 5: Product Labelling
3.0. PRODUCT LABELLING TECHNICAL DATA PAD HTB16-M manual HTB 10-M manual HTB16-D digital HTB 10-D digital FINES – OPERATING INSTRUCTIONS – ENGLISH version Prover HTB »HTB16,10-M in HTB16,10-D »... -
Page 6: Safety Notes
(ceramic, plating, etc..), otherwise they shall be surrounded with non- combus tible heat insulating material. In the area where the device operates normally, therefore, creates a moisture is necessary to provide ventilation. FINES – OPERATING INSTRUCTIONS – ENGLISH version Prover HTB »HTB16,10-M in HTB16,10-D »... -
Page 7: Installation
Sand trap shall be installed before the entering of the water into the prover and due to scaling is advisable to also install a water softener. FINES – OPERATING INSTRUCTIONS – ENGLISH version Prover HTB »HTB16,10-M in HTB16,10-D »... -
Page 8: Description
At that you have to provide that the hot air reaches all products. Close the door as soon as possible, to avoid heat loss. FINES – OPERATING INSTRUCTIONS – ENGLISH version Prover HTB »HTB16,10-M in HTB16,10-D »... -
Page 9: Control Panel Htb16,10-D Digital
Close the door as soon as possible, to avoid heat loss. When the rising process is finished you take out the products as soon as possible. (at that you should be using the protective gloves – risk of burns) FINES – OPERATING INSTRUCTIONS – ENGLISH version Prover HTB »HTB16,10-M in HTB16,10-D »... -
Page 10: Regular Cleaning And Mintainance
For all outside surfaces of the PROVER is recommended to use cleaning detergent FINES MOROTO GX500 and GX500 S that is packed in handy packaging with spra yer for easier spraying, and multi-purpose cleanerMX200. -
Page 11: Warranty Conditions
13.0. WARRANTY CONDITIONS WARRANTY for the product is 24 months, only in case, if the buyer prior to the previous period of the first 12 months, orders, at its own expense a preventive check up of the product at the authorized FINES service centre and provided that the service centre, after examining the product, confirms that handling of the PROVER h as been carried out with due care and diligence, otherwise the WARRANTY is limited to 12 months!
