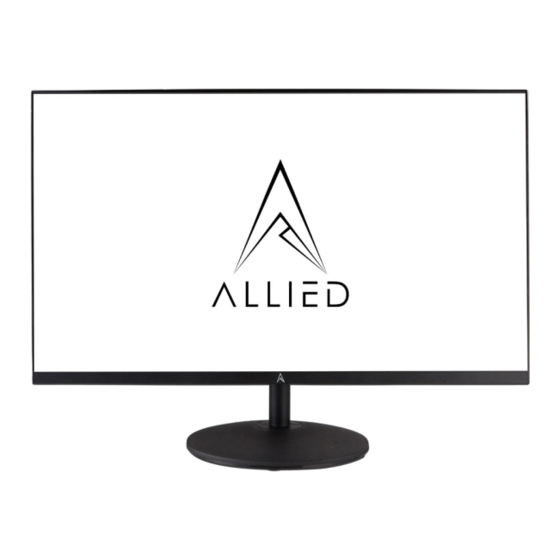

A2700-B Monitor
User Manual
Package Contents:
27" Monitor Screen
1 x Power cable
Assembly:
No tools are required!
1) Unpack contents of the box. Place the monitor screen face down on a clean, preferably padded surface,
to prevent scratching.
2) Slide the Monitor Stand into the rear of the monitor. The metal clips on the stand must go under the
plastic tabs on the monitor. The "Push" tab will click into place when correctly inserted. Push this tab to
release the stand if removal is required.
3) Insert the Monitor Base onto the Monitor Stand, and rotate to lock into position. The Monitor Stand
should be at the rear of the Base, facing forwards. Stand the unit up.
4) Plug in HDMI cable (and/or VGA cable, not provided) and Power Supply plug into the respective ports.
IMPORTANT! Keep all protective packaging including
protective foam, screen cover and box in case of the need for
future transport. Your warranty may be affected if the monitor
is not transported in its original packaging.
www.alliedgaming.com.au | support@alliedgaming.com.au
Monitor Stand
1 x Power supply unit
Monitor Base
1 x HDMI cable
Advertisement
Table of Contents
Summary of Contents for Allied A2700-B
- Page 1 A2700-B Monitor User Manual Package Contents: 27” Monitor Screen Monitor Stand Monitor Base 1 x HDMI cable 1 x Power cable 1 x Power supply unit Assembly: No tools are required! 1) Unpack contents of the box. Place the monitor screen face down on a clean, preferably padded surface, to prevent scratching.
- Page 2 Ensure adequate ventilation in the room while operating. Do not use near liquid, food, in dusty or high humidity environments. • If power supply, power cable or any other items appear or become damaged, do not use and contact Allied support. •...
