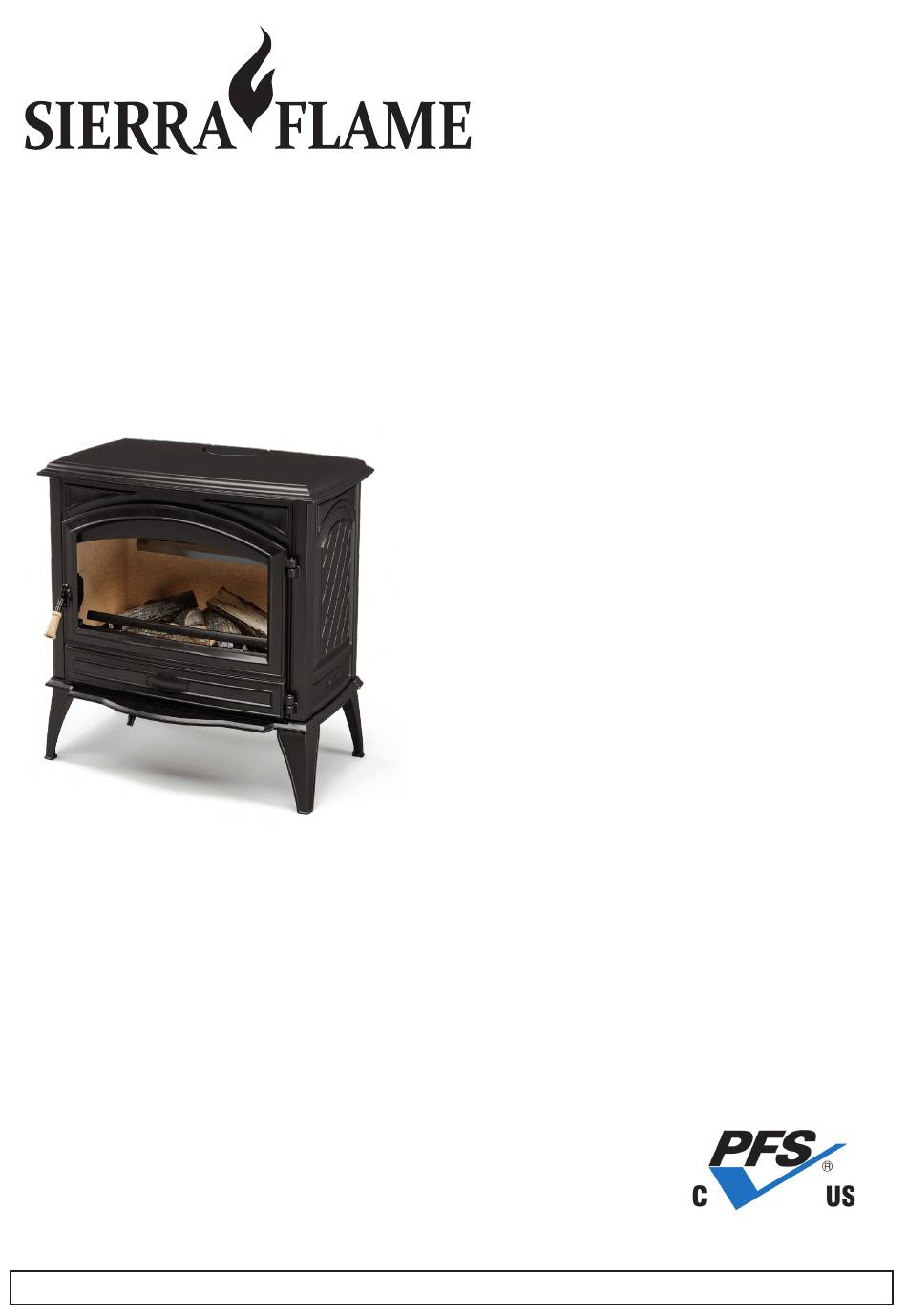

SIERRA FLAME Lynwood W76
Manufactured by:
Norflam
BE0437960542
Nijverheidsstraat 18
B-2381 Weelde, Belgium
Distributed in the United States and
Canada by:
SIERRA FLAME
502-1027 Davie straat
V6E 4L2 Vancouver
British Columbia, Canada
READ AND KEEP THIS MANUAL FOR FUTURE REFERENCE
Non-Catalytic Woodstove
Installation and Operation Instructions
for the United States and Canada
This stove is listed to burn solid wood only. Do
not burn any other fuels.
Read this entire manual before you install and
use this appliance.
Read this entire manual before installation and
use of this wood stove. Failure to follow these in-
structions could result in property damage, injury
or even death.
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
This solid fuel heater has been tested and
listed according to ULC S627-00 (2016)
and UL 1482-2011 standards by an
accredited laboratory.
Certified Safety Tests performed by:
PFS F19-461
03-28312-100 10/2020
Advertisement
Table of Contents
Related Manuals for Sierra Flame Lynwood W76
Summary of Contents for Sierra Flame Lynwood W76
- Page 1 SIERRA FLAME Lynwood W76 Non-Catalytic Woodstove Installation and Operation Instructions for the United States and Canada This stove is listed to burn solid wood only. Do not burn any other fuels. Read this entire manual before you install and use this appliance.
- Page 2 CAUTION !! IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS INCLUDED. DO NOT DISCARD. LEAVE THIS MANUAL WITH THE HOMEOWNER. Hot while in operation, keep children, clothing and furniture away. Contact may cause skin burns. Failure to follow the information in this manual may result in a fire;...
-
Page 3: Table Of Contents
7. Maintenance ..............................Removing the Fire Resistant Plates for Cleaning ................Replacing Door Glass ......................... Creosote Formation and the Need for Removal ................. 8. Troubleshooting ............................9. SIERRA FLAME Limited Warranty ......................Dimensioned Drawing ............................. Spare Parts ..............................Page 3... -
Page 4: Introduction
1. Introduction We welcome you as a new owner of a SIERRA FLAME wood-burning stove. This manual will explain the installation, operation and maintenance of the SIERRA FLAME wood-burning stove. Please familiarize yourself with the owner’s manual before operating your stove and save the manual for future reference. -
Page 5: General Information
2. General Information Performances Values are as measured per test method, except for the recommended heating area, firebox vol- ume, maximum burn time and maximum heat output. Model Lynwood W76 Type Solid Fuel Room Heater Type of Combustion Non-catalytic Fuel Type... -
Page 6: Warnings
CONTACT YOUR LOCAL BUILDING OFFICIALS FOR INFORMATION ON RESTRICTIONS AND INSTALLATION AND PERMIT REQUIREMENTS IN YOUR AREA. WARNINGS! 1. KEEP ASH DRAWER CLOSED DURING FIRING IN THIS STOVE. USE A MET- AL CONTAINER WITH A TIGHT FITTING LID TO DISPOSE OF ASHES. 2. -
Page 7: Installation
The metal label permanently attached to the back of every SIERRA FLAME wood-burning stove shows that it has been tested to current UL and ULC safety standards, and gives the name of the testing laboratory. -
Page 8: Floor Protection
They are nationally recognized and are accepted by most local authorities. Your local dealer or your local building official may have a copy of these regulations. WARNING! CHECK ALL LOCAL BUILDING AND SAFETY CODES BEFORE INSTALLATION. THE INSTALLATION INSTRUCTIONS AND APPROPRIATE CODE REQUIRE- MENTS MUST BE FOLLOWED EXACTLY AND WITHOUT COMPROMISE. -
Page 9: Combustible Wall Clearance For Top Vent Installation
Combustible Wall Clearance for top vent installation When installing stove the following clearances to combustible materials must be kept. Chimney connector pipe 16” 18” 16” 27.5” 19.5” 18” 6” single wall (406 mm) (457 mm) (406 mm) (699 mm) (495 mm) (457 mm) 16”... -
Page 10: Ceiling Height Clearance
Draft Requirements SIERRA FLAME Lynwood is only one component of the total system. The venting system is equally important for achieving the required flow of combustion air to the firebox and for safely re- moving unwanted combustion by-products from the appliance. If the venting system’s design does not promote these ends, the system may not function properly. -
Page 11: Masonry Chimney
Refer to Combustible Wall Chimney Connector Pass-Throughs on the following pages. When connecting the SIERRA FLAME Lynwood to an existing chimney: Remove the existing damper and/or any portion of the smoke shelf necessary to accommodate a 6 inch chimney connector. -
Page 12: Factory Chimney Top Vent Installation
The chimney connector is a single or walled pipe used to con- nect the stove to the chimney. For use with the SIERRA FLAME wood-burning stoves the chimney connector MUST be 6” in diameter, with a minimum thickness of 24 gauge black steel or 26... -
Page 13: Rear Vent Installation
Rear vent installation Multi-purpose For venting into a masonry or a back standing steel chimney through the top vent the top horizontal por- Storm collar tion of a single wall connector pipe can be located not closer than 18” below a combustible ceiling. Flashing Rear venting into a masonry or steel chimney through a thimble vent configuration or other than described... -
Page 14: Combustible Wall Chimney Connector Pass-Throughs
Combustible Wall Chimney Connector Pass-Throughs 12” (304.8 mm) Clearance to Combustible Wall Member: Method A Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specifi- cation for Clay Fire Linings) or its equivalent. - Page 15 Method C 6” (152.4 mm) Clearance to Combustible Wall Member: Starting with a minimum 24 gage (.024” [.61 mm]) 6” (152.4 mm) metal chimney connector, and a minimum 24 gage ventilated wall thimble which has two air channels of 1 in. (25.4 mm) each, construct a wall pass-through.
-
Page 16: Chimney Height Requirements
Chimney height requirements The chimney must extend 3 feet above the level of roof penetration and a minimum of 2 feet higher than any roof surface within 10 feet. Check with your local building officials for additional requirements for your area. The condition of the chimney and height is very important;... -
Page 17: Prepare The Stove
4. Prepare the Stove Please check the appliance for damage caused during transport or any other damage or defects immediately after delivery. The appliance is attached to the pallet with screws at the bottom. If you detect damage caused during transport or any other damage or defects, do not use the appliance and notify the supplier. - Page 18 Exploded view of the fire resistant inner plates. These plates are made from a very heat resistant and highly insulating material made of pro- cessed vermiculite. This material is capable of service temperatures up to 1150 C (2101 F) It is however somewhat fragile.
- Page 19 Page 19...
-
Page 20: Instructions
5. Instructions Fire resistant inner plates Fire resistant inner plates are delivered in this SIERRA FLAME wood-burning stoves. We rec- ommend that you treat the plates with care because it is a delicate material (not covered by the limited warranty). Small cracks may arise in the plates from minor water content, especially if the stove is overheated during the first fire. -
Page 21: Room Ventilation & Combustion Air Supply
(or floor) and the pipe with silicone to prevent moisture penetration. Draft Requirements The SIERRA FLAME wood-burning stove is only one component of the total system. The venting system is equally important for achieving the required flow of combustion air to the firebox and for safely removing unwanted combustion by-products from the appliance. -
Page 22: Operation
SUCH LIQUIDS WELL AWAY FROM THE STOVE WHILE IT IS IN USE. Fueling the wood-burning stove Your SIERRA FLAME freestanding wood-burning stove is designed for burning natural wood only. Higher efficiencies and lower emissions generally result when burning air dried seasoned hard- woods, as compared to softwoods or to green or freshly cut hardwoods. - Page 23 • Close the door of the appliance and move the air control to the cold-start position; see the following figure. • When the fire is burning well move the control arm to the desired position for heat output. • Let this fire develop into a good blaze until there is glowing bed of charcoal. You can then add fuel and adjust the appliance, see the following section “Burning Wood”.
-
Page 24: Advice
Advice • Never burn wood with an open door. • Regularly burn wood with intense roaring fires. • If you frequently have low intensity fires, tar and creosote may be deposited in the chimney. Tar and creosote are highly combustible substances. Thicker layers of these substances might catch fire when the temperature in the chimney increases suddenly and steeply. -
Page 25: Removing The Fire Resistant Plates For Cleaning
TANT PLATES PROPERLY INSTALLED OR WARRANTY WILL BE VOID. WARNING! DO NOT USE SUBSTITUTE MATERIALS. ALWAYS USE LISTED SPARE PARTS FROM SIERRA FLAME. Cleaning glass Dirt and soot cling less easily to well-cleaned glass. Proceed as follows: • Remove dust and loose soot with a dry cloth. -
Page 26: Replacing Door Glass
Replacing Door Glass se only SIERRA FLAME ceramic replacement glass 4 mm in thickness. The use of any other glass is prohibited. Do not remove the door before installing new glass. When replacing the glass all gaskets must be installed correctly. Make note of the gasket locations as you take the door apart. -
Page 27: Troubleshooting
8. Troubleshooting Problem Wood does not keep burning Gives off insufficient heat Smoke emissions into the room when adding wood Fire in appliance is too intense, is hard to adjust Deposit on the glass Possible cause Possible solution A cold flue usually fails to create sufficient draught. Follow the Insufficient draught instructions for lighting in the "Operation"... -
Page 28: Sierra Flame Limited Warranty
9. SIERRA FLAME Limited Warranty What’s Covered SIERRA FLAME warrants, to the original retail buyer only , that the cast iron and steel components of this appliance will be free of defects in material and workmanship for a period of five (5) years from the date of purchase. - Page 29 SIERRA FLAME to be of substantially equal qual- ity. The dollar value of SIERRA FLAME’s liability for breach of this warranty shall be limited exclusive- ly to the cost of furnishing a replacement component.
-
Page 30: Dimensioned Drawing
Dimensioned Drawing 570 mm 780 mm 22” 7/16 30” 1/16 205 mm 8” 1/16 153mm 6” 0/16 100 mm 3” 15/16 Page 30... -
Page 31: Spare Parts
Spare Parts Page 31...
