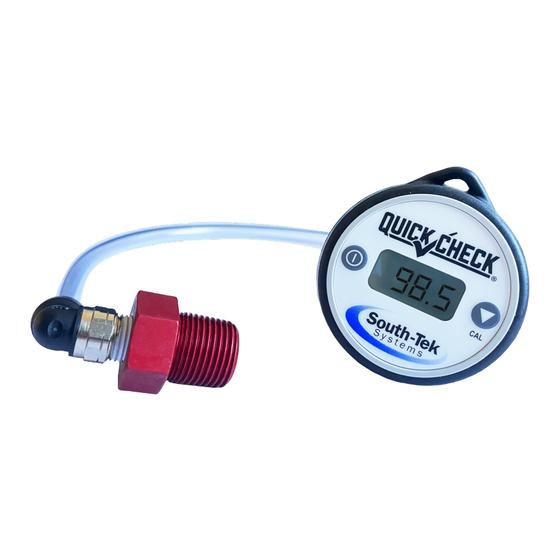

- Page 1 Quick-Check O&M Manual R218M05-008 Rev E © 2020 The Leader in Nitrogen Generation Technology...
- Page 2 Quick-Check O P E R A T I N G M A N U A L & I N S T R U C T I O N S F O R U S E R 2 1 8 M 0 5 - 0 0 8...
- Page 3 South-Tek Systems TEL (910) 332. 4173 2940 Orville Wright Way FAX (910) 332. 4178 Wilmington, NC 28405 www.southteksystems.com CLASSIFICATION Protection against electric shock: ......Internally powered equipment.
- Page 4 WARNINGS Indicates a potentially hazardous situation, if not avoided, could result in death or serious injury. » Never allow an excess length of tubing, or any accessory near a person’s head or neck, which may result in strangulation. » Before use, all individuals who will be using the N Analyzer must become thoroughly familiar with the information contained in this Operation Guide.
-
Page 5: Table Of Contents
TABLE OF CONTENTS CLASSIFICATION, WARRANTY ............I WARNINGS, CAUTION. -
Page 6: Symbol Guide
SYMBOL GUIDE The following symbols and safety labels are found on the the Handi+: Do not throw away. Follow local Calibration Button guidelines for disposal. Contains acid Follow instructions for use Contains lead Do Not Meets ETL standards Serial Number Catalog Number Warnings Lot code/Batch code... -
Page 7: Introduction
1.0 INTRODUCTION This manual describes the function; operation and maintenance of the N Analyzer. The intent of this manual is to describe the function of the N Analyzer only. The final assembly manufacturer should provide operating instructions for the completed assembly. The N analyzer is engineered for long life, maximum reliability and stable performance. -
Page 8: Operation Principals
3. Using the "ON/OFF" key , make sure the unit is in the power "ON” mode. 4. Press and hold the Calibration Key for 3 seconds until the display reads “CAL”. This will calibrate the N Analyzer to room air. Thereafter, we recommend calibration on a weekly basis. -
Page 9: Calibration Errors And Error Codes
» The N analyzer oxygen sensor has been tested at pressures up to two atmospheres absolute. Calibration or operation above this pressure is beyond the intended use. Humidity Effects Humidity (non-condensing) has no effect on the performance of the N analyzer other than diluting the gas, as long as there is no condensation. -
Page 10: Cleaning, Maintenance, And Disposal
7.0 CLEANING, MAINTENANCE, AND DISPOSAL Store the N analyzer in a temperature similar to its ambient environment of daily use. The instruction given below describes the methods to clean the instrument, sensor and its accessories: Instrument » When cleaning or disinfecting the exterior of the N analyzer, take appropriate care to prevent any solution from entering the instrument. - Page 11 2940 Orville Wright Way Wilmington, NC 28405 Tel: 910-332-4173 Fax: 910-332-4178 www.southteksystems.com www.southteksystems.com...
