21-pin Euro connector and 21-pin Audio/Video

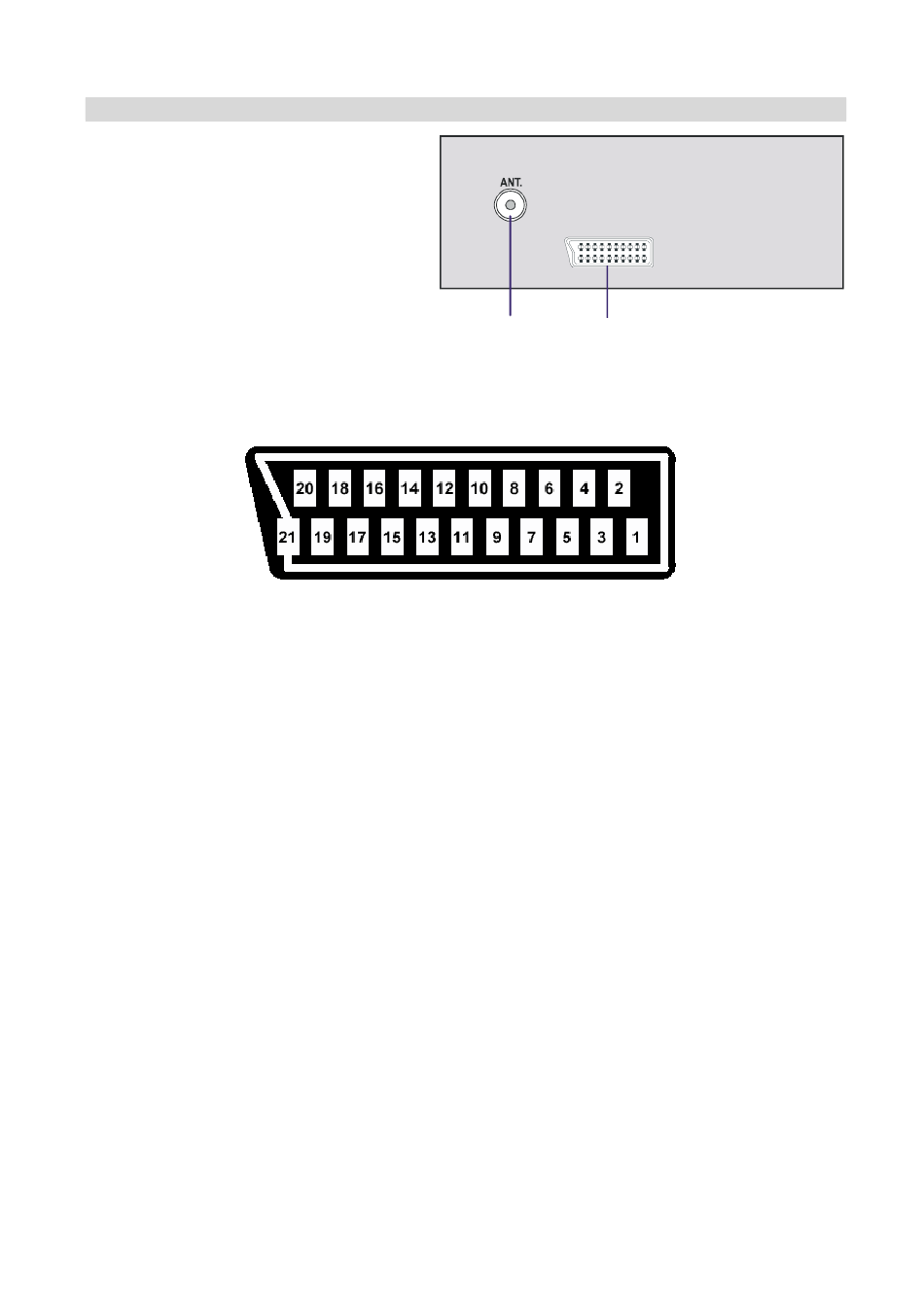

REAR TV
RF Input
1. Aerial terminal
21-pin In/Out
2. 21-pin Audio/Video (RGB) (SCART) With
Video Input (PAL/SECAM/NTSC)
21-pin Euro connector (SCART)
Audio note : The audio inputs and audio outputs are MONO.
1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth for blue
6. Audio left input
7. Blue input
Downloaded from: http://www.usersmanualguide.com/
8. Audio-video control
9. Earth for green
10. Not used
11. Green input
12. Not used
13. Earth for red
14. Not used
- 20 -
6&$57


15. Red input
16. Red/Green/Blue control
17. Earth for video
18. Earth for Red/Green/Blue control
19. Video output
20. Video input (PAL/SECAM/NTSC)
21. Plug shield
