Bedford B6031I Series User Manual

Deep well pump inverter

Advertisement

B6031I Series
Deep Well Pump Inverter
User Manual
GUANGZHOU BEDFORD ELECTRIC EQUIPMENT CO.,LTD.
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B6031I Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bedford B6031I Series

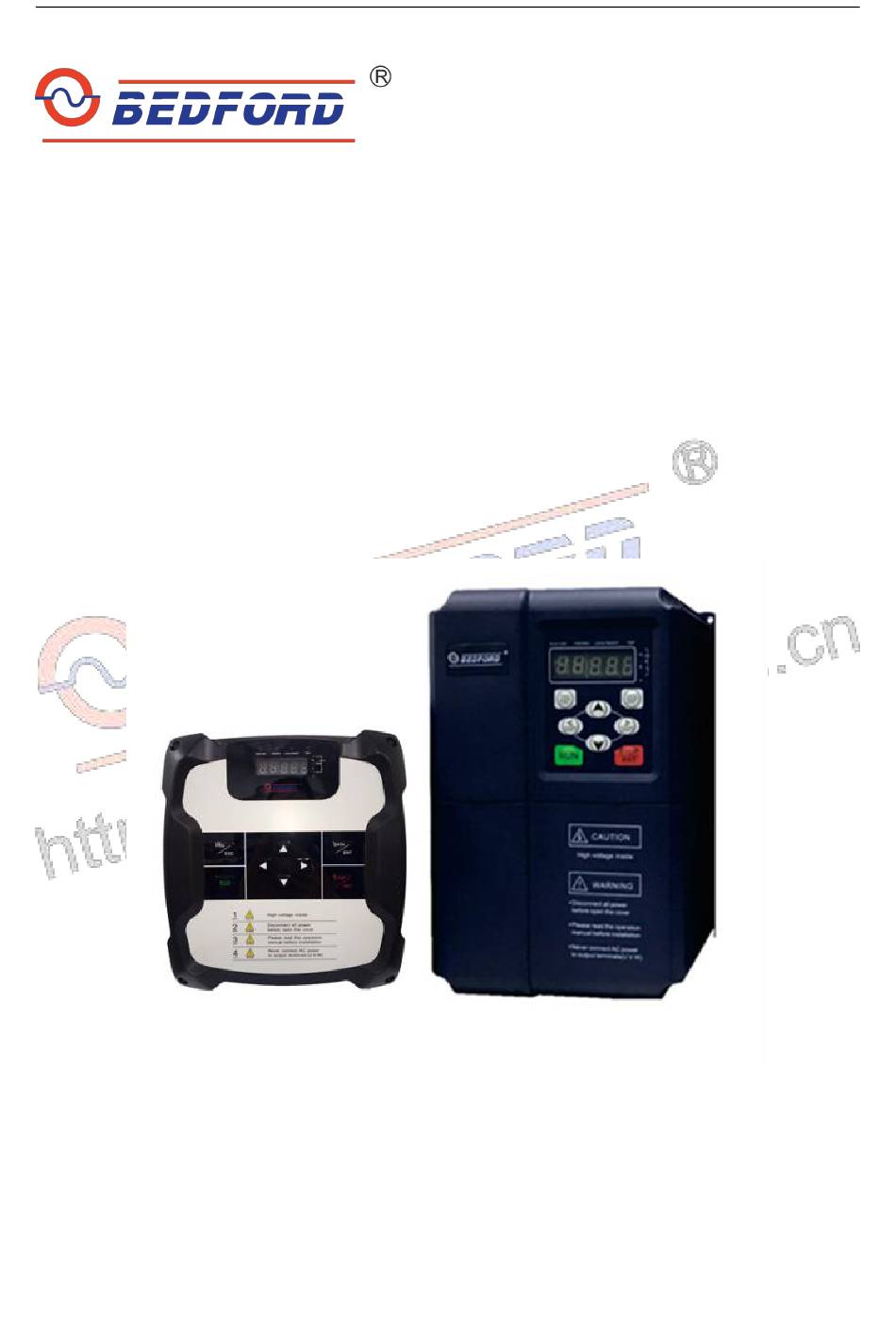

  • Page 1 B6031I Series Deep Well Pump Inverter User Manual GUANGZHOU BEDFORD ELECTRIC EQUIPMENT CO.,LTD. V1.0.0...
  • Page 3 Preface Thank you for purchasing our B6031I series deep well pump inverter, we will provide you with a warm and attentive service. B6031I series products is specifically designed for deep well pump, Some models controllers can be set the parameter selection to control single-phase or three-phase pumps.
  • Page 4: Table Of Contents

    Contents 1. SAFETY PRECAUTIONS..............1 2. PRODUCT INTRODUCTION.............. 2 2.1 Features...................... 2 2.2 Model Specification................... 2 2.3 Selection Guide..................2 2.4 External Dimension................... 4 3. ENVIRONMENTAL REQUIREMENT..........5 4. WIRING....................6 4.1 Main Circuit Terminals Wiring..............6 4.2 Control Circuits Terminals Wiring............8 4.2.1 The Wiring of Water-level Auto Controlling Terminals.....8 4.2.2 Additional Remarks of Control Mode..........
  • Page 5 6. INSTRUCTIONS OF PARAMETERS GROUP....... 14 7. APPLICATION GUIDANCE...............16 7.1 Wiring and Setting for the Water-level of Deep Well and Upper Reservoir Auto Controlling................16 7.1.1 System Wiring..................16 7.1.2 System Debugging Procedure............16 7.1.3 Relevant Parameter Setting...............16 7.2 Wiring and Setting for the Water-level of Deep Well Auto Controlling and Constant Pressure Water Supply.............
  • Page 6: Safety Precautions

    B6031I Series Deep well Pump Inverter User Manual 1. SAFETY PRECAUTIONS B6031I is a new power electronic product, please read the operation manual carefully before using to keep your safety and make sure proper operation. In this manual, the safety precautions were sorted to “WARNING” and “CAUTION”.
  • Page 7: Product Introduction

    B6031I Series Deep well Pump Inverter User Manual 2. PRODUCT INTRODUCTION 2.1 Features ◆Single-phase, three-phase selection function: Some models controllers can be chosen to control single-phase or three-phase motor. ◆Power on restart: Running automatically when power on. ◆Sleep function: Sleep down when have no water consumption, to earn a better energy saving.
  • Page 8 B6031I Series Deep well Pump Inverter User Manual Motor Power (kW) Rated Input Input Max. Output Model No. Voltage (V) Current (A) Current (A) 1Φ 3Φ B6031ID(B2)-2005 17.0 16.0 B6031ID(B2)-2007 21.0 20.0 B6031ID-2010 31.0 30.0 B6031ID-2015 43.0 42.0 B6031ID-2020 56.0 55.0...
  • Page 9: External Dimension

    B6031I Series Deep well Pump Inverter User Manual 2.4 External Dimension 1. The dimension of B6031IB2 A(mm) B(mm) H(mm) W(mm) D(mm) Model Installation (kW) Installation Dimension External Dimension Hole 0.75~2.2 (B2 models) 4~7.5 (B2 modes) 11-15 (B2 models) 2. The dimension of B6031ID Figure2-4-1 Dimension (0 .75~18.5kW)
  • Page 10: Environmental Requirement

    B6031I Series Deep well Pump Inverter User Manual Figure 2-4-3 Dimension (160~350kW) A (mm) B (mm) H (mm) W (mm) D (mm) Model Installation (kW) Installation Dimension External Dimension Hole 0.75~2.2 169.6 179.6 120.1 150.3 4~7.5 147.4 194.5 11~18.5 205.6 303.6...
  • Page 11: Wiring

    B6031I Series Deep well Pump Inverter User Manual CAUTION  When moving the controller please lift by its base and don’t lift by the panel. Otherwise may cause the main unit fall off which may result in personal injury.  Install the controller on the fireproofing material (such as metal) to prevent fire.
  • Page 12 B6031I Series Deep well Pump Inverter User Manual POWER MOTOR Figure 4.1.8 The main circuit terminals wiring of B6031ID (7.5kW) 4. The main circuit terminals wiring of B603D (380VAC) POWER MOTOR Figure 4.1.9 The main circuit terminals wiring of B6031ID (0.72~2.2kW)
  • Page 13: Control Circuits Terminals Wiring

    B6031I Series Deep well Pump Inverter User Manual Figure 4.1.14 Diagram of inverter drive after dismantling the capacitance of single phase motor In order to keep safety and prevent electric shock and fire, PE must be grounded with ground resistance. Furthermore, reliable grounding is the simplest, most effective and minimum cost solution for EMC problems, so it enjoys priority in all EMC methods.
  • Page 14 B6031I Series Deep well Pump Inverter User Manual Figure4.2.2 water-level sensors for deep well connecting wiring Remark: When the actual water-level in the deep well is lower than the horizontal line of low water-level, “S1” will be disconnected to “COM” as well as the controller B6031ID(B2) will be displaying “A033”...
  • Page 15: Additional Remarks Of Control Mode

    B6031I Series Deep well Pump Inverter User Manual Figure4.2.3 water-level sensors for upper reservoir connecting wiring Remark: When the controller B6031ID(B2) cleared out fault “A033” (When there is the water in the deep well) and the actual water-level in the upper reservoir is lower than the horizontal line of low water-level, “S3”...
  • Page 16: Wiring Main Circuits

    B6031I Series Deep well Pump Inverter User Manual 4.3 Wiring Main Circuits 4.3.1 Wiring of Main Circuits B601I Series Figure4.3.1 High-performance main circuit wiring 4.3.2 Circuit Breaker It is necessary to connect a suitable circuit breaker between 3 phase AC power supply and B603 series intelligent constant water supply controller.
  • Page 17: Ground Wiring (Pe)

    B6031I Series Deep well Pump Inverter User Manual 4.3.7 Ground Wiring (PE) In order to keep safety and prevent electric shock and fire, PE must be grounded with ground resistance. Furthermore, reliable grounding is the simplest, most effective and minimum cost solution for EMC problems, so it enjoys priority in all EMC methods.
  • Page 18: Power-On Initialization

    B6031I Series Deep well Pump Inverter User Manual 5.2.2 Power-on Initialization Firstly the system initializes during the controller power-on, and LED displays “CAP-S”. After the initialization is completed, the controller is on stand-by status. 5.2.3 Parameter Setting Three levels of menu are: 1. Function code group (first-level); 2. Function code (second-level);...
  • Page 19: Instructions Of Parameters Group

    B6031I Series Deep well Pump Inverter User Manual Figure 5.2.1 Operation flow chart Method 2: Direct setting at the primary interface (constant pressure water supply mode) Press △ or ▽ at primary interface, the system will switch-over to display setting pressure, press △ or ▽ again, the setting pressure increase/decrease, mean while the system trace the setting pressure.
  • Page 20 B6031I Series Deep well Pump Inverter User Manual Function Setting Factory Name Description Code Range Setting Water-level of Deep Well and 000.0~ Water-level of deep well and upper reservoir b00.01 Upper Reservoir 50.00Hz 060.00 auto control run frequency value Auto Controlling...
  • Page 21: Application Guidance

    B6031I Series Deep well Pump Inverter User Manual 7. APPLICATION GUIDANCE 7.1 Wiring and Setting for the Water-level of Deep Well and Upper Reservoir Auto Controlling 7.1.1 System Wiring Figure7.1.1 Wiring for the water-level of deep well and upper reservoir auto controlling system 7.1.2 System Debugging Procedure...
  • Page 22: Wiring And Setting For The Water-Level Of Deep Well Auto Controlling And Constant Pressure Water Supply

    B6031I Series Deep well Pump Inverter User Manual Function Factory Recommend Description Code Setting According to the connecting motor setting, the single phase b00.03 motor is set to 1, three phase motor is set to 0 Motor rotating direction, set according to the actual motor b00.04...
  • Page 23: System Debugging Procedure

    B6031I Series Deep well Pump Inverter User Manual 7.2.2 System Debugging Procedure Figure7.2.2 Debugging flow diagram 7.2.3 Relevant Parameter Setting Sheet 7.2.1 Parameter setting of the water-level of deep well auto controlling and constant pressure water supply Function Factory Recommend...
  • Page 24: Fault And Trouble Shooting

    B6031I Series Deep well Pump Inverter User Manual 8. FAULT AND TROUBLE SHOOTING 8.1 Pump Running Fault and Trouble Shooting Fault Fault Type Reason Solution Code  Check the installation of pressure transmitter; 1. Abnormal sensor;  Check the motor whether rotates in 2.
  • Page 25 B6031I Series Deep well Pump Inverter User Manual Fault Fault Type Reason Solution Code Over-current 1. Dec time is too short;  Prolong Dec time; When 2. Load is too heavy; E005  Increase braking unit; Deceleration 3. The power of controller is ...
  • Page 26 B6031I Series Deep well Pump Inverter User Manual Fault Fault Type Reason Solution Code 1. Sudden over-current; 2. Input/output side has short circuit; 3. Cooling fans of controller Rectify E015 stopped or damaged;  Refer to measures of over-current; Overheat (OH1) 4.
  • Page 28 Agent: http://www.bedford.com.cn...
