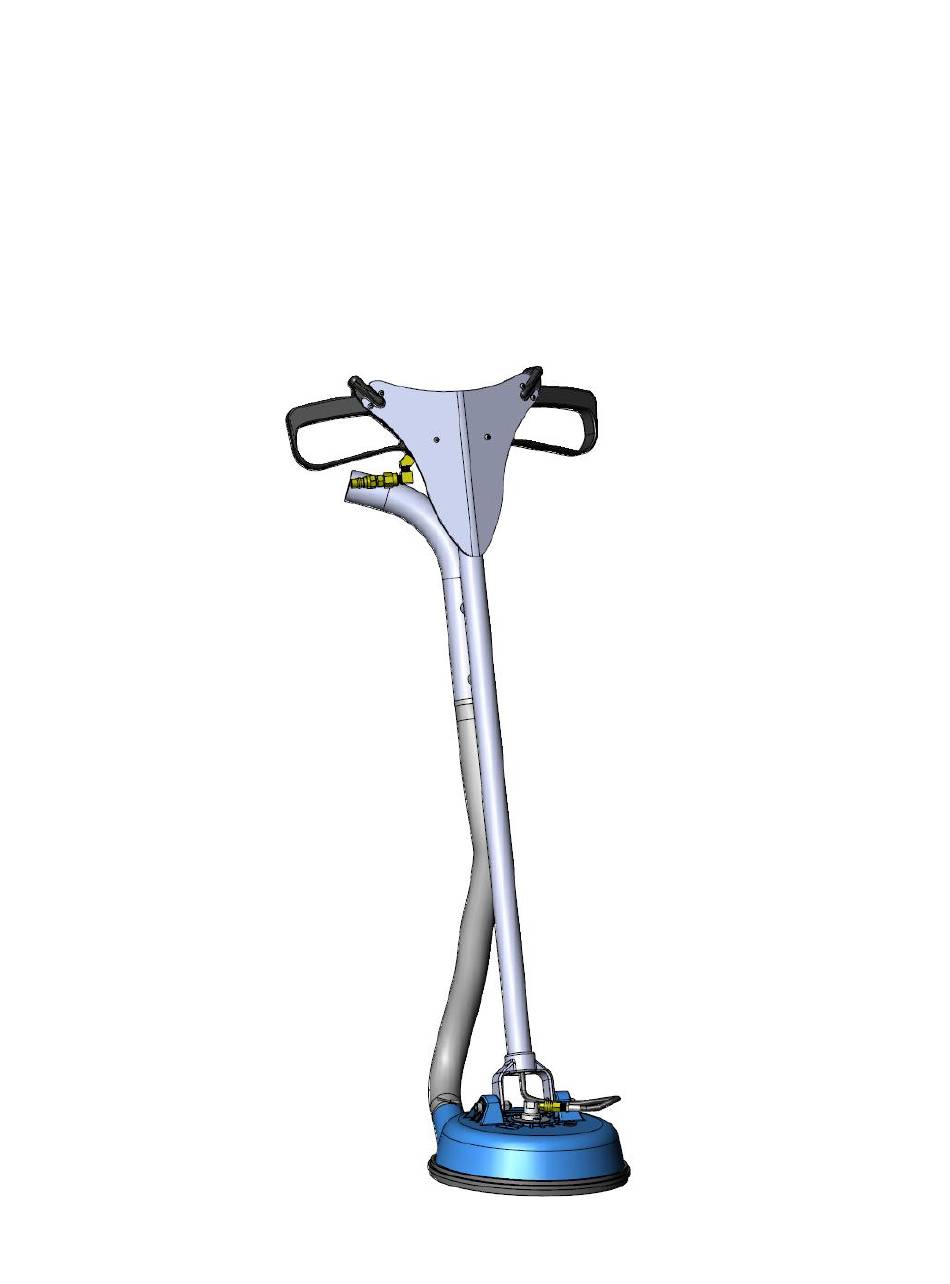

- Page 1 Revised: 01/10/2020 SX-12 Hard Surface Cleaning Tool 1610-8235 Hydro-Force Manufacturing 4282 South 590 West Salt Lake City, UT 84123 801-268-2673 801-268-3856 FAX...
-
Page 2: Specifications
Congratulations on your purchase of the SX-12 hard surface cleaning tool. Years of experience, engineering, and planning have gone into the design and manufacturing of the SX-12. We take a great deal of pride in the SX-12; our goal is no less than your complete satisfaction. - Page 3 USING THE SX-12 Set-up Procedure 1. Connect the vacuum hose from your extractor to the vacuum pipe on the SX-12 handle. 2” vacuum hose and cuff is recommended. 2. Connect the solution hose from the extractor to the quick connect on the SX-12 valve assembly.
- Page 4 To prevent the SX-12 from sticking to the floor and to make the SX-12 easier to move, push the vacuum relief slide to the left to open the vents. Try different slide position settings to get the best movement and...
-
Page 5: Maintenance
Using the SX-12 with extractors with higher air flow will generally require the vacuum relief vents to be opened more. Using the SX-12 with smaller portable extractors may require the vacuum relief vents to be closed for the best water recovery. -
Page 6: Head Disassembly
Head Disassembly 1. Disconnect the Solution hose from the swivel using the quick connect. 2. Remove the three assembly bolts at the base of the swivel... - Page 7 3. Separate inner and outer shells.
- Page 8 1610-8235, SX-12 Component List...
-
Page 10: Limited Warranty
LIMITED WARRANTY Your SX-12 tile cleaning tool is designed to give you years of reliable service. If a problem should arise contact your distributor or Hydro Force for assistance. Hydro-Force warrants the SX-12 tile cleaning tool to be free from defects in material or...
