Summary of Contents for Caleffi solar SP10

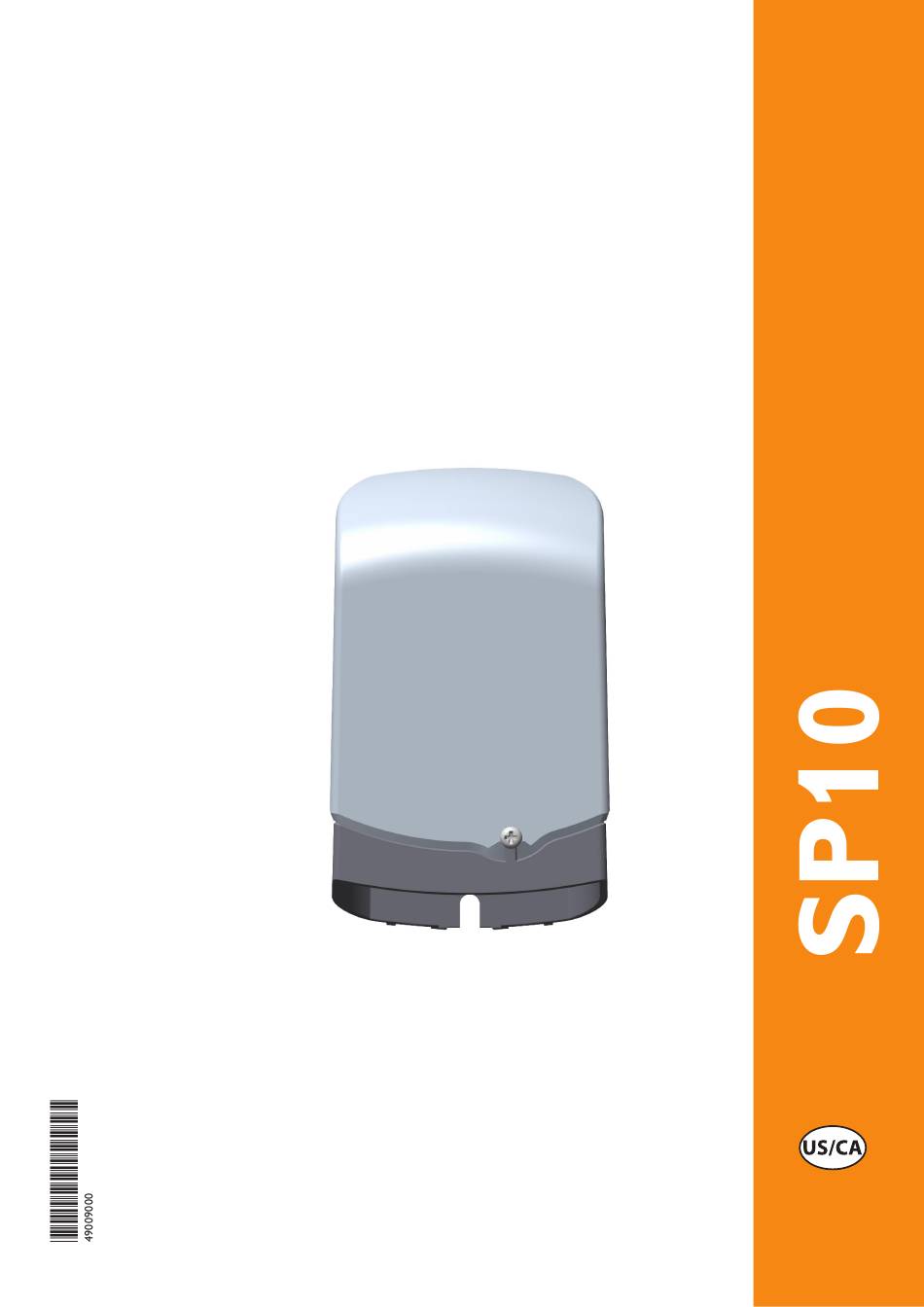

- Page 1 SP10 Mounting Connection Manual Thank you for buying this product. Please read this manual carefully to get the best performance from this unit...
- Page 2 In the case of local thunderstorms, voltage peaks which could destroy the sensor Karilen E42D-H201 can be induced in the sensor cable. The protector diodes in the SP10 limit these Upper part of housing: Luran S757R overvoltages to a value harmless to the sensor.

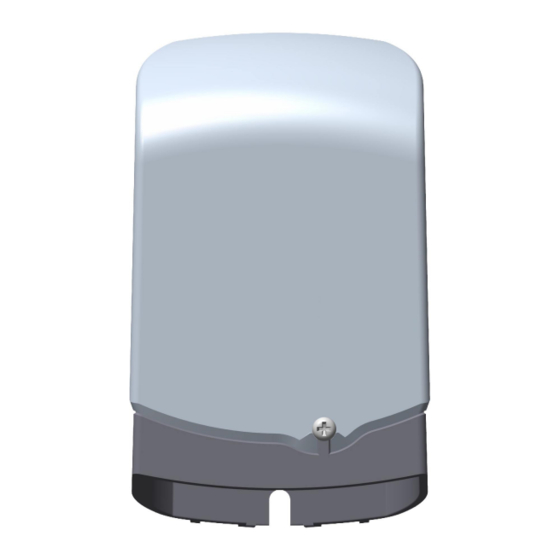

- Page 3 SP10 Overvoltage protection device • Stable and weather-proof housing with outstanding design • Overvoltage protection against local lightning strokes and other externally induced voltages • Easy to mount 64,07 mm 34 mm 40 mm 67,79 mm 1. Wall mounting For optimum protection against moisture, the sensor protection...
- Page 4 2. Electrical connection • Pierce the cable glands with a pointed object (fig. 1). Insert the cables into the holes and pull them slightly back, such that the edge of the gland is slightly turned to the outside. Thus the device is protected against moisture. •...
