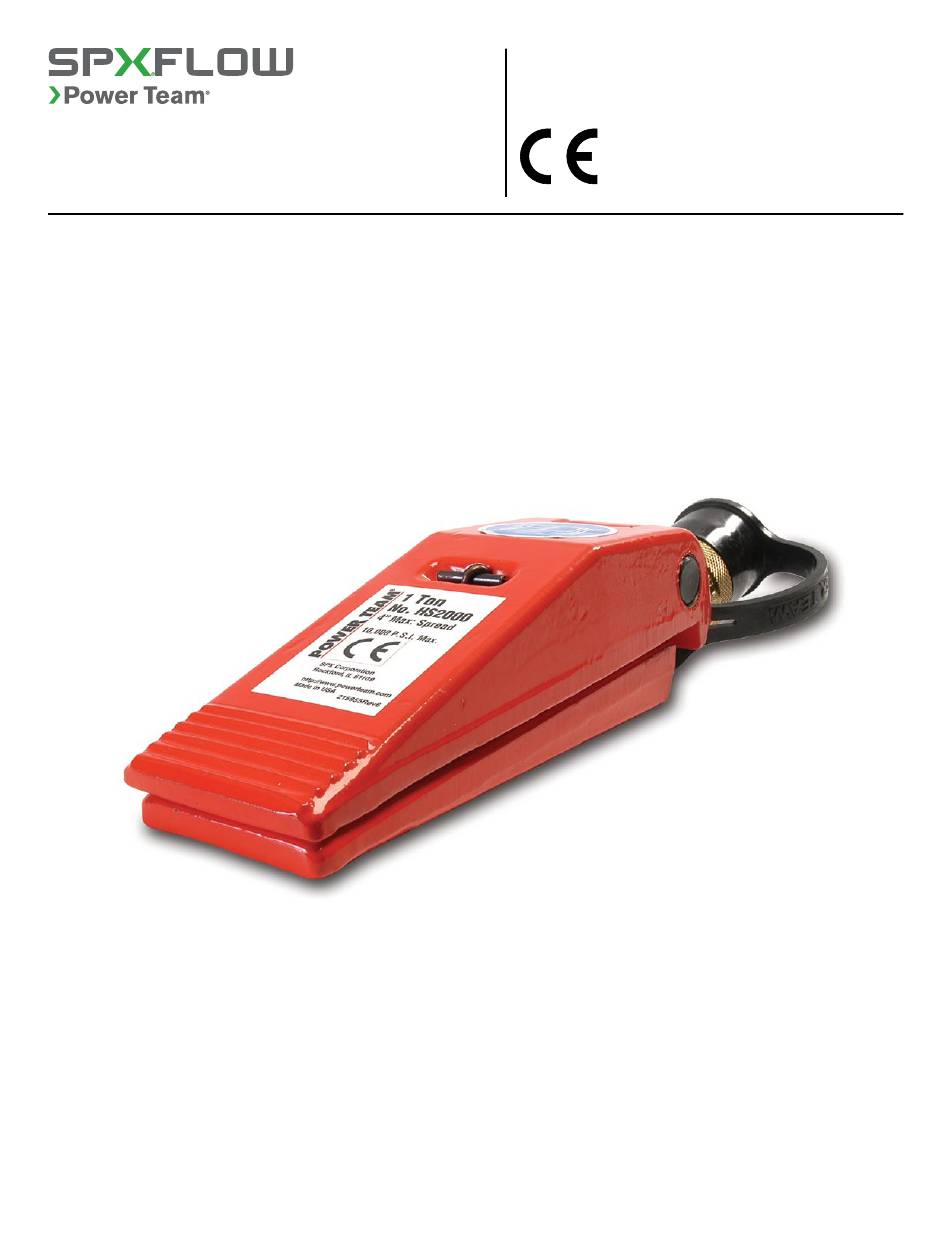

Hydraulic Spreader
Max. Pressure: 690 bar (10,000 psi)
Unit Weight: HS2000 = 2.17 kg (4.8 lb)
HS3000 = 9.98 Kg (22 lb)
Operating Instructions for:
1
HS2000
HS3000
Form No. 1000665
Rev. 0
Sept. 9, 2019
Advertisement
Table of Contents
Summary of Contents for SPX FLOW Power Team HS2000
- Page 1 Order Entry: (800) 541-1418 HS3000 Fax: (800) 288-7031 powerteam.com Hydraulic Spreader Max. Pressure: 690 bar (10,000 psi) Unit Weight: HS2000 = 2.17 kg (4.8 lb) HS3000 = 9.98 Kg (22 lb) © SPX FLOW, Inc. Form No. 1000665 Rev. 0 Sept. 9, 2019...
-
Page 2: Table Of Contents
Declaration of Conformity ..........12 © SPX FLOW, Inc. -
Page 3: Description
Power Team facility. A list of all Power Team facilities is located at the end of this document. • Carefully inspect the tool upon arrival. The carrier, not the manufacturer, is responsibile for any damage resulting from shipment. © SPX FLOW, Inc. Form No. 1000665 Rev. 0 Sept. 9, 2019... -
Page 4: Safety Symbols And Definitions
Never use a spreader with bent or damaged couplers or damaged port threads. • Always support the base against a rigid, flat surface at least 75% as large as the hydraulic spreader base for stability. © SPX FLOW, Inc. Form No. 1000665 Rev. 0 Sept. 9, 2019... - Page 5 • As the load is lifted, use blocking or cribbing to guard against a falling load or a load that will come together after being spread apart. All personnel must be clear of the load before lowering. © SPX FLOW, Inc. Form No. 1000665 Rev. 0...
-
Page 6: Initial Setup
690 bar (10,000 psi), correctly connected and compatible with the hydraulic fluid used. An unmatched system can cause the system to fail and serious injury. Please contact your nearest Power Team facility with any technical questions or clarifications as required. © SPX FLOW, Inc. Form No. 1000665 Rev. 0... -
Page 7: Operating Instructions
29.2 cm (11.5 in.) Minimum Clearance Required 1.5 cm (.6 in.) 3.2 cm (1.25 in.) Cubic CM. (cu.in) of Fluid Required 10.3 (0.63) 57.4 (3.5) Table 1. HS2000 & HS3000 Specifications © SPX FLOW, Inc. Form No. 1000665 Rev. 0 Sept. 9, 2019... -
Page 8: General Maintenance
Item Description Trade Name Decal Upper Jaw Extension Spring Lower Jaw Ram Half Coupler (w/Dust Cap) Handle Figure 4. HS3000 Components © SPX FLOW, Inc. Form No. 1000665 Rev. 0 Sept. 9, 2019... -
Page 9: Troubleshooting Guide
5. Prime pump per pump operating instructions. 6. Pump not operating. 6. Check pump's operating instructions. 7. Load is above the capacity of 7. Use the correct equipment. the system. © SPX FLOW, Inc. Form No. 1000665 Rev. 0 Sept. 9, 2019... - Page 10 4. Send to service center for repair. springs. 5. Spreader damaged internally. 5. Send to service center for repair. 6. Pump reservoir too full. 6. Drain hydraulic fluid to correct level. © SPX FLOW, Inc. Form No. 1000665 Rev. 0 Sept. 9, 2019...
-
Page 11: Power Team Facilities & Contacts
Fax: +1 800 288 7031 Send P.O’s to: info@powerteam.com SEA Headquarters Australia Headquarters 20 Pioneer Crescent #06-01 SPX Flow Technology Australia Pty Ltd Technical Services West Park BizCentral Quad 2, 6 Parkview Drive Tel: +1 800 477 8326 Singapore 628555... -
Page 12: Declaration Of Conformity
, 2019 United States of America SPX Hydraulic Technologies Andreas J. Klemm SPX Hydraulic Technologies ------------------------------------------ Albert Thijsstraat 12 NL-6471 WX Eygelshoven Andreas J. Klemm, PhD The Netherlands © SPX FLOW, Inc. Form No. 1000665 Rev. 0 Sept. 9, 2019...
