Summary of Contents for A&D bestView ADF-5000

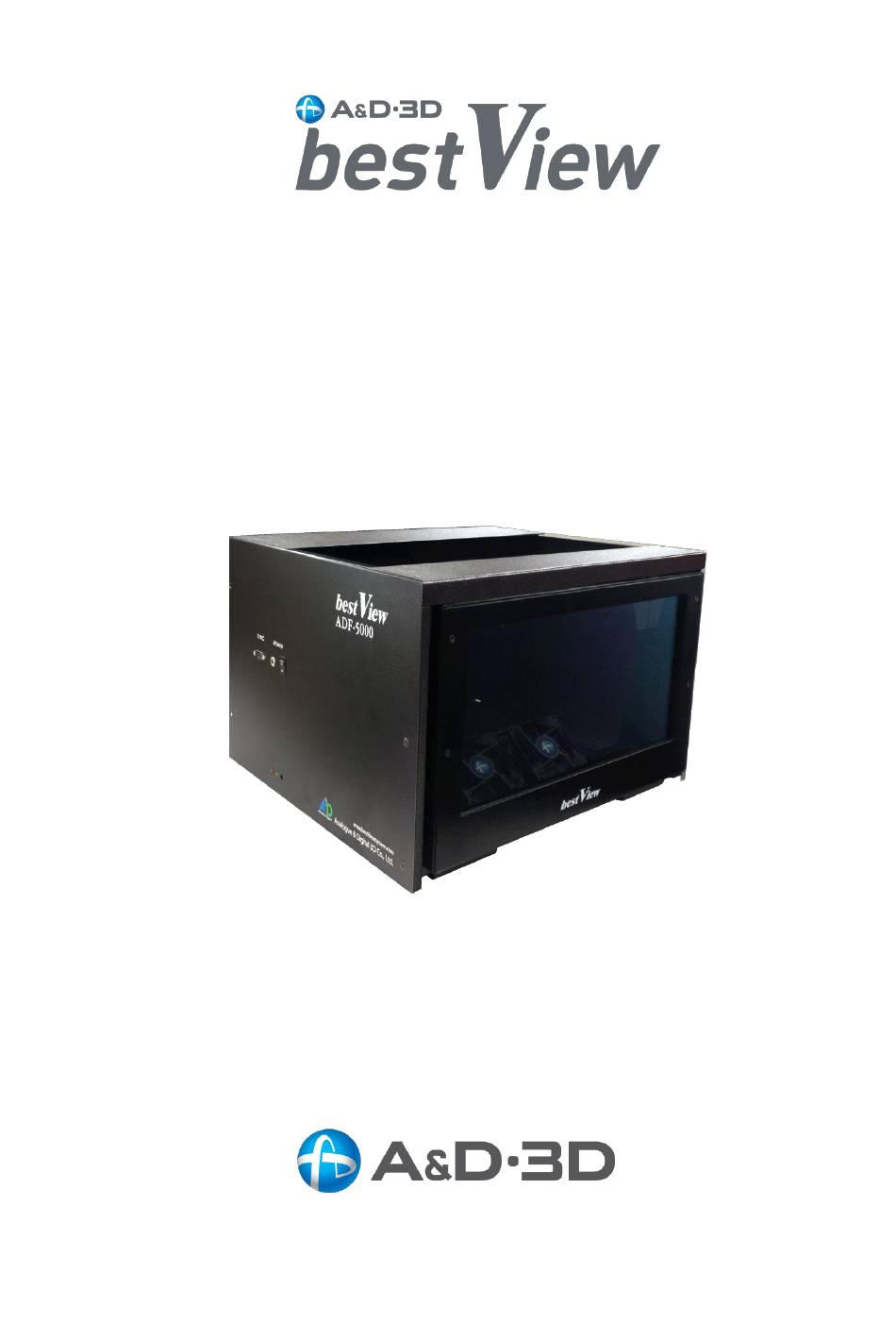

- Page 1 ADF-5000 Installation and Operation Guide Date: Nov. 27, 2013...
- Page 2 This equipment is intended for use in a restricted access location. Before installing or operating your bestView ADF-5000, please read this manual thoroughly, and retain it for future reference. All instructions for operating and use of this equipment should be followed precisely. And preliminary adjustments should be performed by qualified A&D 3D personnel or authorized...
-
Page 3: Table Of Contents
....................9 4-2. Maintenance ...................... 9 4-2-1. Cleaning Dust ....................10 4-2-2. Fingerprints and Smudges ................10 4-2-3. Resistant Residue ..................10 4-2-4. If Your bestView ADF-5000 System is not Working Properly ......10 4-3. Customer Support Center ................. 10 2/10... -
Page 4: Overview
LCD panel go down and go up onto 3D by itself. Various projector compatibility bestView ADF-5000 system fits on digital projectors from most major manufacturers. Including Christie CP2000; BARCO D-Cine premiere DP1500 and DP2000; and NEC NC1600 and NC2500. For support of other projector models, please contact A&D 3D. -
Page 5: Bestview Adf-5000
ADG-3200 Polarized Glasses(2EA) bestView ADF-5000 Body 3D-filter Cable Projector sync- cable Power adapter & cable(220V) ADG-3200 Polarized Glasses [Figure 2-1. bestView ADF-5000 components] 2-1-1. bestView ADF-5000 measurement 405mm 299mm 420mm Aperture : 317 x 180mm [Figure 2-2. bestView ADF-5000 measurement] 4/10... -
Page 6: Bestview Adf-5000 Connecting Cables
2-2. bestView ADF-5000 Connecting Cables The below Figure 2-3 illustrates the connection cables used to wire the bestView ADF- 5000 components to your projection system. Synchronous cable connects to the GPIO port of the projector. It‟s very simple connection why ADF-5000 has totally automatic 3D changeover and frame setting function. -
Page 7: Adg-3200 3D Glasses For 3D-Filtering Test
3D image. [Figure 2-5. Circular polarized glasses ADG-3200] Only ADG-3200 3D-glasses will work with bestView ADF-5000 presentation. The audience cannot use just any pair of glasses. The polarizing filters in the glasses must match the polarization of the presentation for an optimum 3D effect. -
Page 8: Bestview Adf-5000 Setup & Operation
Prepare proper space for installing the system between the projector and bestView ADF-3000. When installers set up projector and bestView ADF-5000 on the ceiling, the bestView must be located in front of joint bracket which is attached to projector. -
Page 9: Setting The Projector
3-2. Setting the Projector 3D sync polarity depends on the settings of server and projector. [Figure 3-2. Christie CP2000, 3D-set-up UI] 1. Connect HD projector to 3D server and operate. (Please refer to the manual for more information.) 2. Upload the film, finish all the steps and be ready to push the “play” button on the server. -
Page 10: Others
Clean projection lens and 3D-filter “soft” image projection lens or 3D-filter Doesn‟t look “3D” Improper projector parameters Use proper projector parameters bestView ADF-5000 is not plugged Check the cable connection Sync cable was not connected between projector and bestView ADF-5000 Power supply isn‟t enough Image is “too dark”... -
Page 11: Cleaning Dust
- Use dry portion of microfiber cloth to remove streaking by rubbing gently in a circular motion. 4-2-4. If Your bestView ADF-5000 System is not Working Properly - Please don‟t disassemble and repair ADF-5000 system. - If operating errors occur abnormally, we will replace your product as the same new product.
