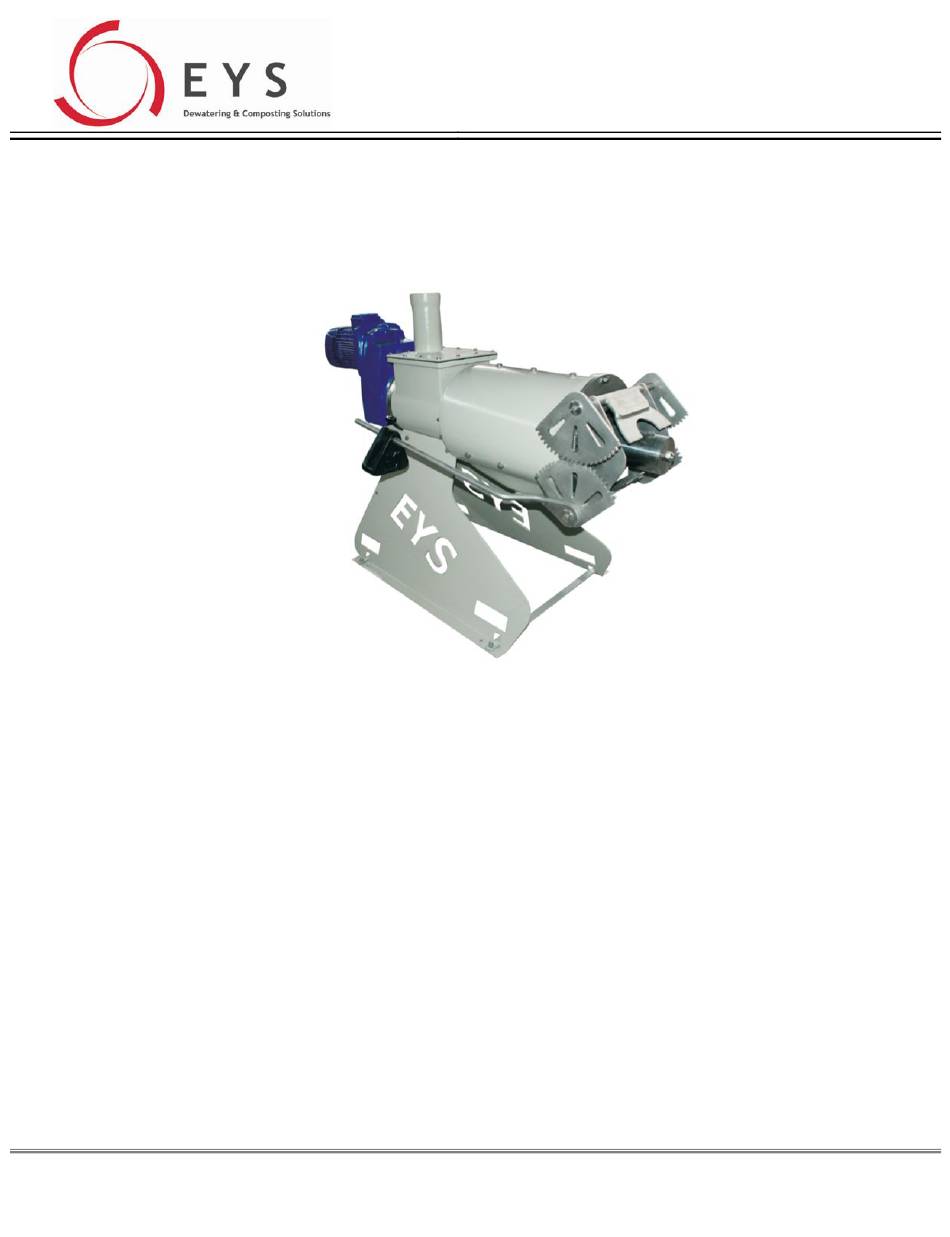

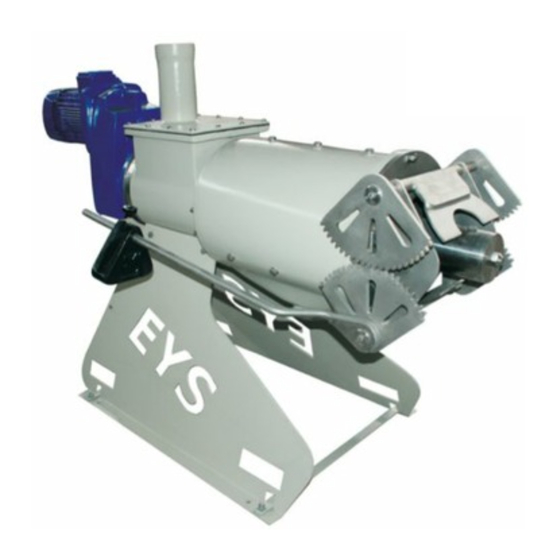

- Page 1 SEP 2010 EYS SEPARATOR USER MANUAL – SP SERIES USER MANUAL EYS SCREW-PRESS SEPARATORS SP SERIES Page 1 / 14...
-
Page 2: Table Of Contents
SEP 2010 EYS SEPARATOR USER MANUAL – SP SERIES Table of Contents Page Introduction General Safety Instructions Installation Start-up and Operation Regular Shut Down / Shut Down for Extended Periods Disassembly / Assembly Periodic Maintenance Troubleshooting Technical Specifications Manufacturer’s Contact Information... -
Page 3: Introduction
Your dealer’s contact information is: If you are not able to reach your dealer and in need of immediate support, then please refer to EYS support contact information provided at the end of this manual. -
Page 4: General Safety Instructions
The EYS separator separates fluidic slurry (which must be free of foreign objects such as metal parts, stones, pieces of wood or cloth) into its solid and liquid fractions. The EYS separator is designed for continuous open air operation within a temperature range of -20°C to 50°C. - Page 5 3.1. !"#$ 3.2. Scope of delivery The EYS Separator is delivered as a complete assembled system, including the electric motor. The net weight of the machine is approximately 600 kg. 3.3. Required tools The separator needs to be lifted with appropriate lifting machinery (fork lift truck, tractor with front loader, crane) supported by appropriate belts or chains.
- Page 6 EYS SEPARATOR USER MANUAL – SP SERIES 3.4. Installation and mounting If the pump feeding the separator is not an EYS pump, its capacity must not be less than 35m /h, otherwise the separator would not achieve its ATTENTION ! full performance.
- Page 7 SEP 2010 EYS SEPARATOR USER MANUAL – SP SERIES procedure. After about five repetitions – depending on the slurry properties – a plug of solid matter will build up, pushing the cover away from the mouthpiece. As an alternative you may make a plug by hand: take some fibrous material like paper waste or dry separated solid manure and stuff it firmly behind the flaps.
- Page 8 (part# KC01). Please contact your dealer then for a service visit. EYS Seperators come with cutter screws around the main body ath the inlet area. These cutter screws help catch and cut long fibers before they enter the screen zone.
- Page 9 7. SHUT-DOWN FOR EXTENDED PERIODS If your EYS Separator will not be used for a longer time, put it out of operation according to chapter 7 and clean it according to chapter 9 “Disassembly”. Store the machine as described in chapter 11 “Storage”.
-
Page 10: Disassembly / Assembly
SEP 2010 EYS SEPARATOR USER MANUAL – SP SERIES 8. DISASSEMBLY – ASSEMBLY Disassembly It is necessary to disassemble the separator for Cleaning of screen and screw • Replacing screen and screw • Removing foreign objects in case of separator blockage •... - Page 11 10. STORAGE The EYS Separator should be stored in a closed and dry shelter when not in service for extended periods of time. Change the gearbox oil with an anti-corrosion oil (Shell Omela 220 or equivalent); dispose of the used oil properly.
-
Page 12: Troubleshooting
SEP 2010 EYS SEPARATOR USER MANUAL – SP SERIES 11. TROUBLESHOOTING Problem Possible Cause Solution Separator stops Overload Check motor protection for proper setting, if necessary adjust it to Plug too dry maximum value. Foreign object blocks up the Check separator inlet, remove screw foreign object;... - Page 13 SEP 2010 EYS SEPARATOR USER MANUAL – SP SERIES 12. TECHNICAL DATA Part Properties Material Stainless steel; special hard Auger, auger-shaft Hardened surface coating Screen 0.3 / 0.5 / 0.65 / 1.0 mm Stainless steel 2.2kW, 1440rpm 380V-50Hz SP400 (208-230/460V; 60Hz...
-
Page 14: Manufacturer's Contact Information
