Forms+Surfaces 3RIVERS PEDESTRIAN Installation/Wiring Instructions

3RIVERS
TM

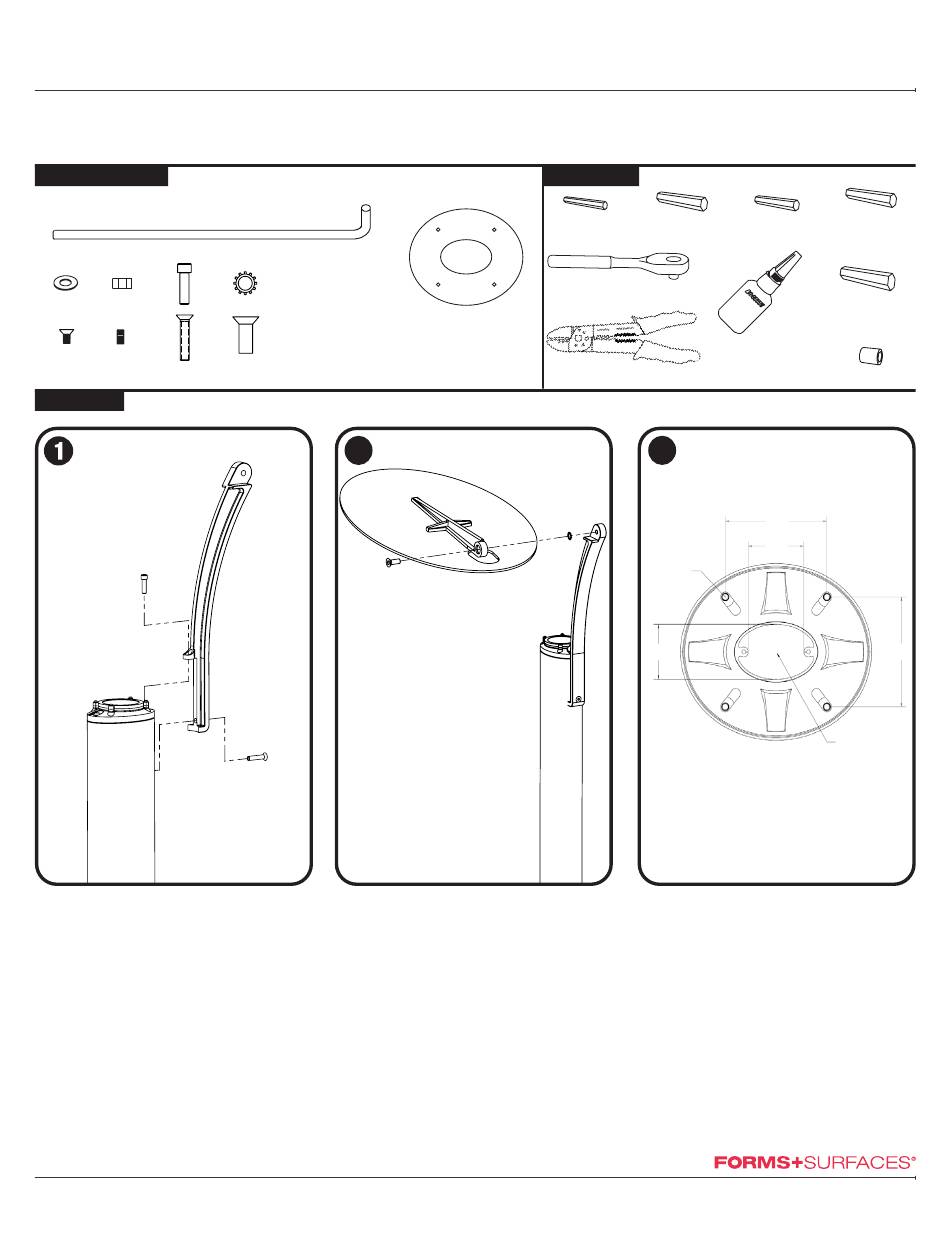

MATERIALS INCLUDED

a
b c
f h
d e g

STEP BY STEP

FOR ALL 3RIVERS PEDESTRIAN LIGHTING

Attach reflector arm

• Position reflector arm on fixture.
• Install 1/2" -13, 1-3/4" socket head
screw (f) with 3/8" hex bit and ratchet,
using LOCTITE 243 thread locker
®
TM
or similar on fastener threads. Hand
snug only; do not overtighten.
• Install 1/2"-13, 2-1/2" flat head screw
(g) with 5/16" hex bit and ratchet, using
LOCTITE 243 thread locker or similar
®
TM
on fastener threads. Hand snug only; do
not overtighten.
T 800.451.0410 | www.forms-surfaces.com
© 2020 Forms+Surfaces® | All dimensions are nominal. Specifications and pricing subject to change without notice. For the most current version of this document, please refer to our website at www.forms-surfaces.com.
PEDESTRIAN
i
2

Attach reflector

• Position reflector on reflector arm,
ensuring that 3/4" star washer (h) is
between the parts.
• Install 3/4-10, 2" flat head screw with
1/2" hex bit and torque wrench, using
LOCTITE
or similar on fastener threads. Torque
to 70 ft-lbs; do not overtighten.
SURFACE MOUNT INSTALLATION & WIRING INSTRUCTIONS

TOOLS NEEDED

1/8" hex bit
template
(upon request)
wire strippers
243 thread locker
®
TM
5/16" hex bit 5/32" hex bit
ratchet
LOCTITE ® 243
thread locker
3
11"
6"
J-bolt
anchor
5.5"

Prepare the incoming power

• Before pouring concrete footer, run
properly sized conduit and cabling to
each luminary location according to local
code requirements. Refer to figure above
for dimensions for conduit entry
envelope size and location on luminary.
Forms+Surfaces is not responsible
for site preparation and footings.
Note: Conduit should not protrude more
than 2" above mounting surface.
3/8" hex bit
1/2" hex bit
TM
1-1/8" socket
Conduit entry
location
(center inside
J-bolt)
