TECHNICAL SPECIFICATIONS
Manufacturer:
Type/Model:
Power supply:
Max load on output relay:
Room sensor:
Operating temperature:
Temperature sensing:
Compatible with:
Radio frequency:
Dimensions (LxHxD):
Weight:
EGR-1 is designed for indoor use only.
PACKAGE CONTENTS
EGR-1
•
Antenna
•
Protection lid
•
DESCRIPTION
EGR-1 is a fuse box module that offers one relay for switching electric circuits on and off.
EGR-1 offers 3 inputs, of which 2 can be used simultaneously. One input is for a temperature
sensor, and the 2 other are for any kind of detector: fire, flooding, gas, burglary (motion detector or
magnet contacts).
EGR-1 offers a thermostatic regulation function, which is only available if a temperature sensor is
connected to input T1. The user can then enter desired eco/comfort temperatures into the system to
obtain a programmable thermostat which can easily be toggled between eco- and comfort
temperatures.
OPERATION
EGR-1 is operated either by SMS messages sent to the central unit, or directly from the central unit.
For further information please refer to the user manual of the relevant central unit.
12V DC power supply
230V AC power supply
Output relay (16A)
64-311-21-Manual-EGR-1-Rev1.0-ENG-CH.doc
Please leave this guide with the end user
EGR-1 Radio-controlled relay module
Installation and user manual
Sikom AS, Norway
EGR-1 / 300-8307V10
230VAC 25mA or 12V DC 150mA
16A resistive
10K NTC at 25°C
-20°C to +50°C
-28°C to +49°C ±2°C
GSM ECO-Starter / EcoStarter Touch series.
433.9 MHz
55x90x59 mm (3 DIN modules)
170 g
GND
+12V
230V (N)
230V (L)
NC
C
NO

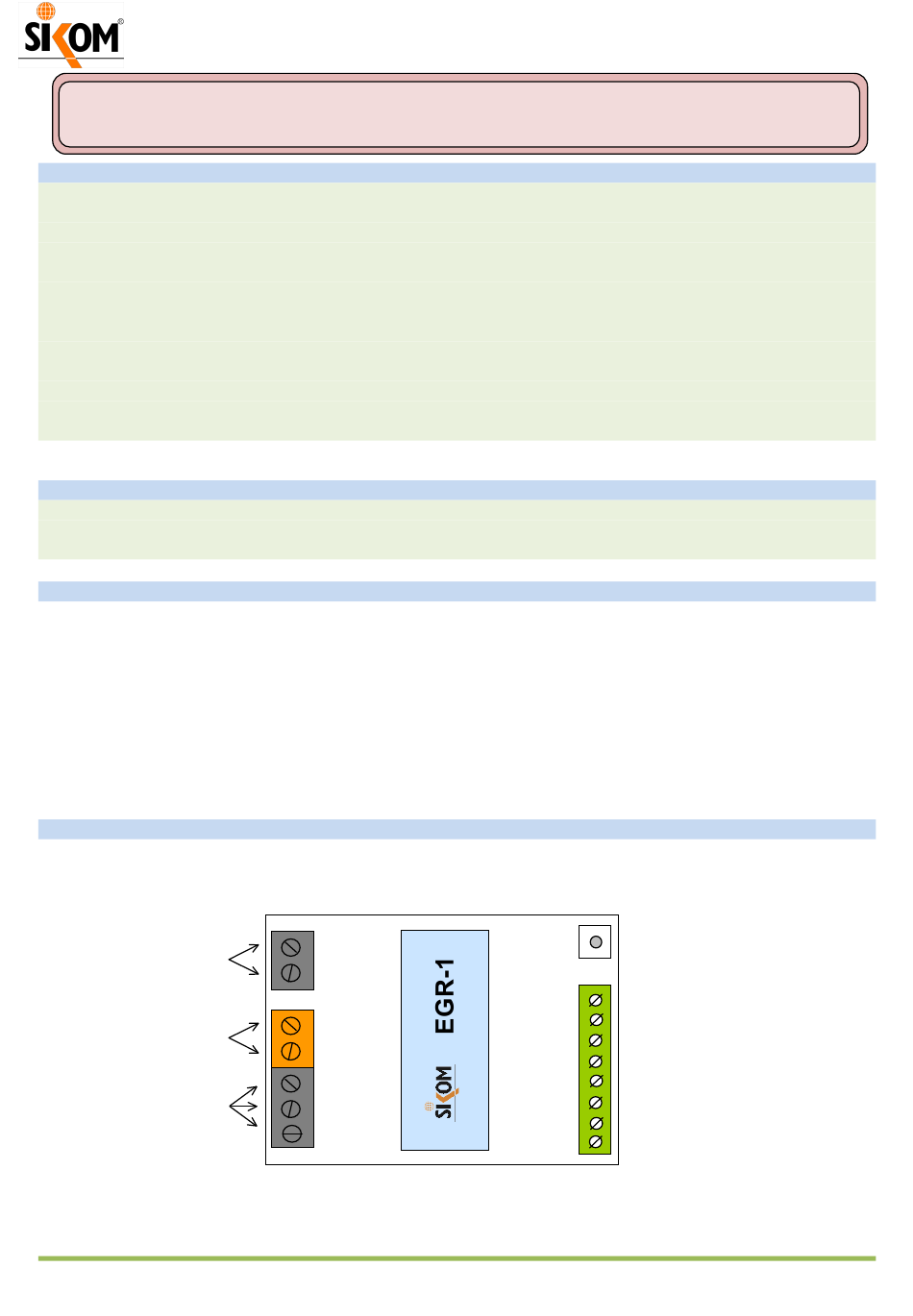

Fig. 1: Connection terminals of EGR-1
Registration switch
SW
+12V
+12V for detector
Input for detector
S2
+12V for detector
+12V
Input for detector
S1
GND
GND for detector/temp sensor
Input for temperature sensor
T1
Antenna centre lead
ANT
GND
GND for antenna
1
