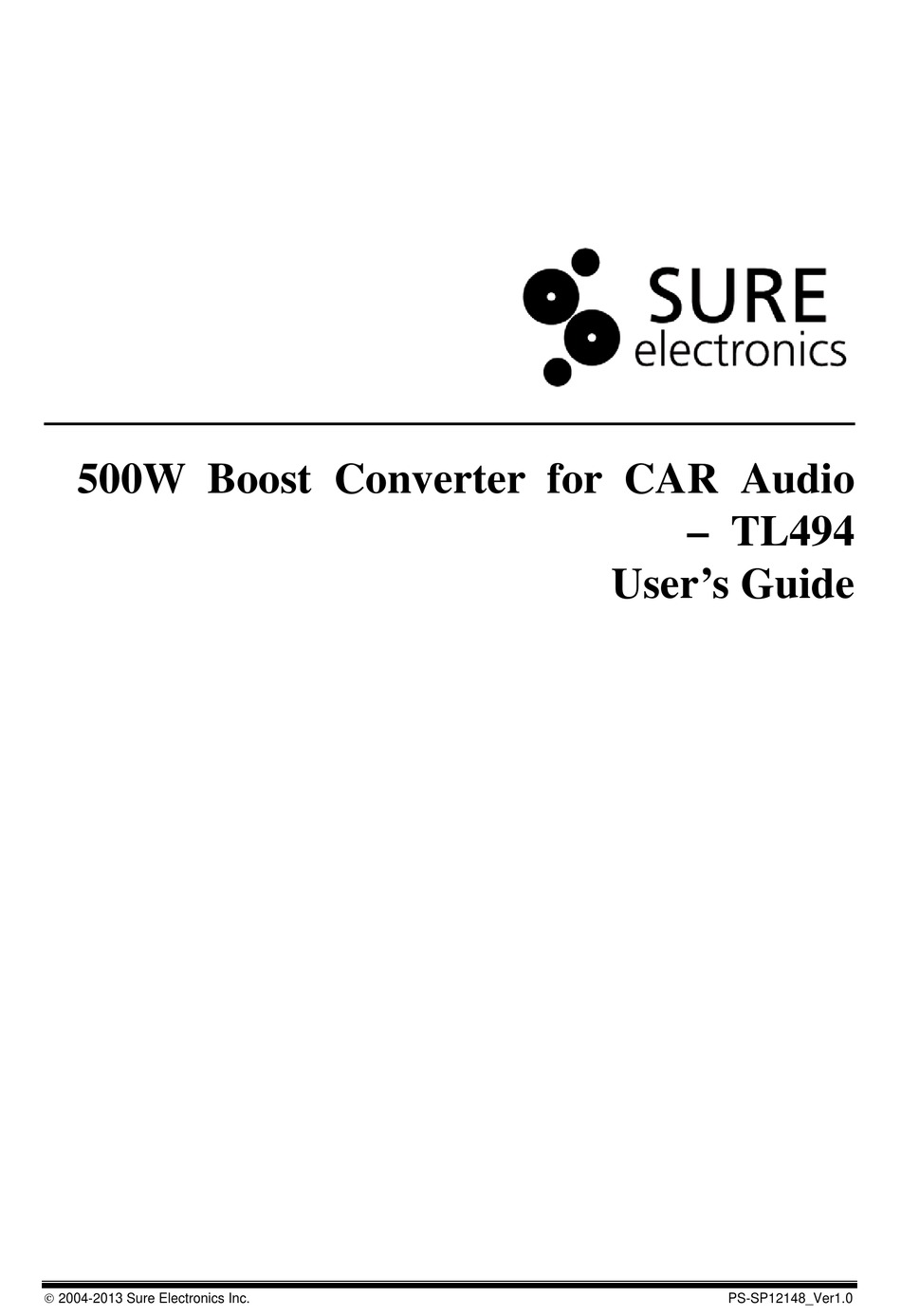

- Page 1 500W Boost Converter for CAR Audio – TL494 User’s Guide 2004-2013 Sure Electronics Inc. PS-SP12148_Ver1.0...
- Page 2 500W Boost Converter for CAR Audio - TL494 To keep the product in a best working condition and having a long service time, please operate it according to the relevant steps. The warranty lapses if the product is damaged because of incorrect use and your negligence.
-
Page 3: Table Of Contents
Chapter 2. Hardware Detail ....................4 2.1 Input Connection....................4 2.2 Output Connection....................4 2.3 Enable Pin Connection ..................4 2.4 LED Indicator....................... 4 Chapter 3. Electrical Characteristics ................5 Chapter 4. Mechanical Drawing..................6 Chapter 5. Contact Us .......................7 2004-2013 Sure Electronics Inc. PS-SP12148_Ver1.0_Page i... - Page 4 500W BOOST CONVERTER FOR CAR AUDIO - TL494 USER’S GUIDE NOTES: ： Product Version Ver 1.0 ： Document Version Ver 1.0 2004-2013 Sure Electronics Inc. PS-SP12148_Ver1.0_Page ii...
-
Page 5: Chapter 1. Overview
Chapter 1. Overview 1.1 Overview Welcome to use this self-made 500W Boost Converter for CAR Audio - TL494. This item is especially designed for CAR audio. It can be used with amplifiers from Sure Electronics. With DC12V input, it can output voltage of DC18V, DC24V, DC30V, DC36V, DC48 and power of up to 500W. -
Page 6: Features
500W Boost Converter for CAR Audio - TL494 1.2 Features A mature DC/DC Boost Converter LED status indicator Voltage adjustable via DIP switch A smart cooling fan Input lines with fuses protection 1.3 Applications ... -
Page 7: Quick Start
500W Boost Converter for CAR Audio - TL494 1.5 Quick Start Suggested connection is shown in figure 1-2. FIGURE 1-2 CONNECTION SCHEMATIC Note: Please observe the following steps to complete verification so as to ensure the products are intact during transit. -
Page 8: Chapter 2. Hardware Detail
Chapter 2. Hardware Detail 2.1 Input Connection A high-performance power supply is important for a 500W Boost Converter for CAR Audio - TL494 to output voltage and work stably. Pay attention to the polarity when connecting power supply. 2.2 Output Connection Before power the amplifier, please test if the voltage is what you want and pay attention to the polarity. -
Page 9: Chapter 3. Electrical Characteristics
500W BOOST CONVERTER FOR CAR AUDIO - TL494 USER’S GUIDE Chapter 3. Electrical Characteristics Following table lists all typical data of the 500W Boost Converter for CAR Audio - TL494. TABLE 3-1 BASIC PARAMETERS Parameter Condition Min. Typ. Max. Supply Voltage... -
Page 10: Chapter 4. Mechanical Drawing
500W BOOST CONVERTER FOR CAR AUDIO - TL494 USER’S GUIDE Chapter 4. Mechanical Drawing FIGURE 4-1 MECHANICAL DRAWING 2004-2013 Sure Electronics Inc. PS-SP12148_Ver1.0_Page 6... -
Page 11: Chapter 5. Contact Us
Chapter 5. Contact Us Sure Electronics Co., Ltd. East zone, 3F, Building 6 Jingang Technology Innovation Center No.108 Ganjiabian Rd (ZIP: 210000) Qixia District Nanjing P.R.China Tel: +86-25-68154800-860 Fax: +86-25-68154891-832 Website: www.sure-electronics.com Email: customerservice@sure-electronics.com 2004-2013 Sure Electronics Inc. PS-SP12148_Ver1.0_Page 7...
