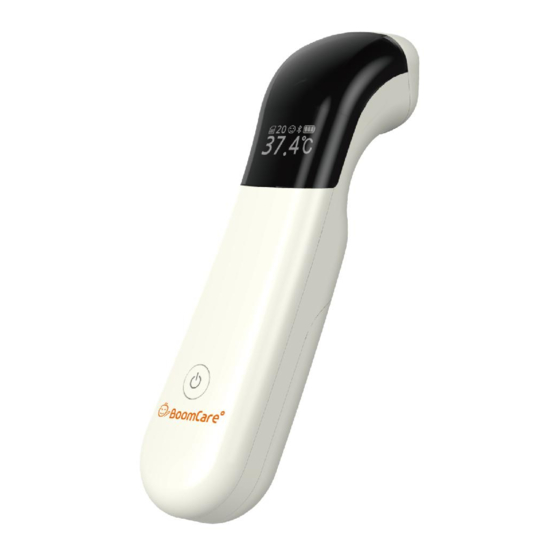

BoomCare BC-03 Manual

Non-contact infrared thermometer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Non-contact Infrared Thermometer

Table of Contents

Need help?

Do you have a question about the BC-03 and is the answer not in the manual?

Questions and answers

Summary of Contents for BoomCare BC-03

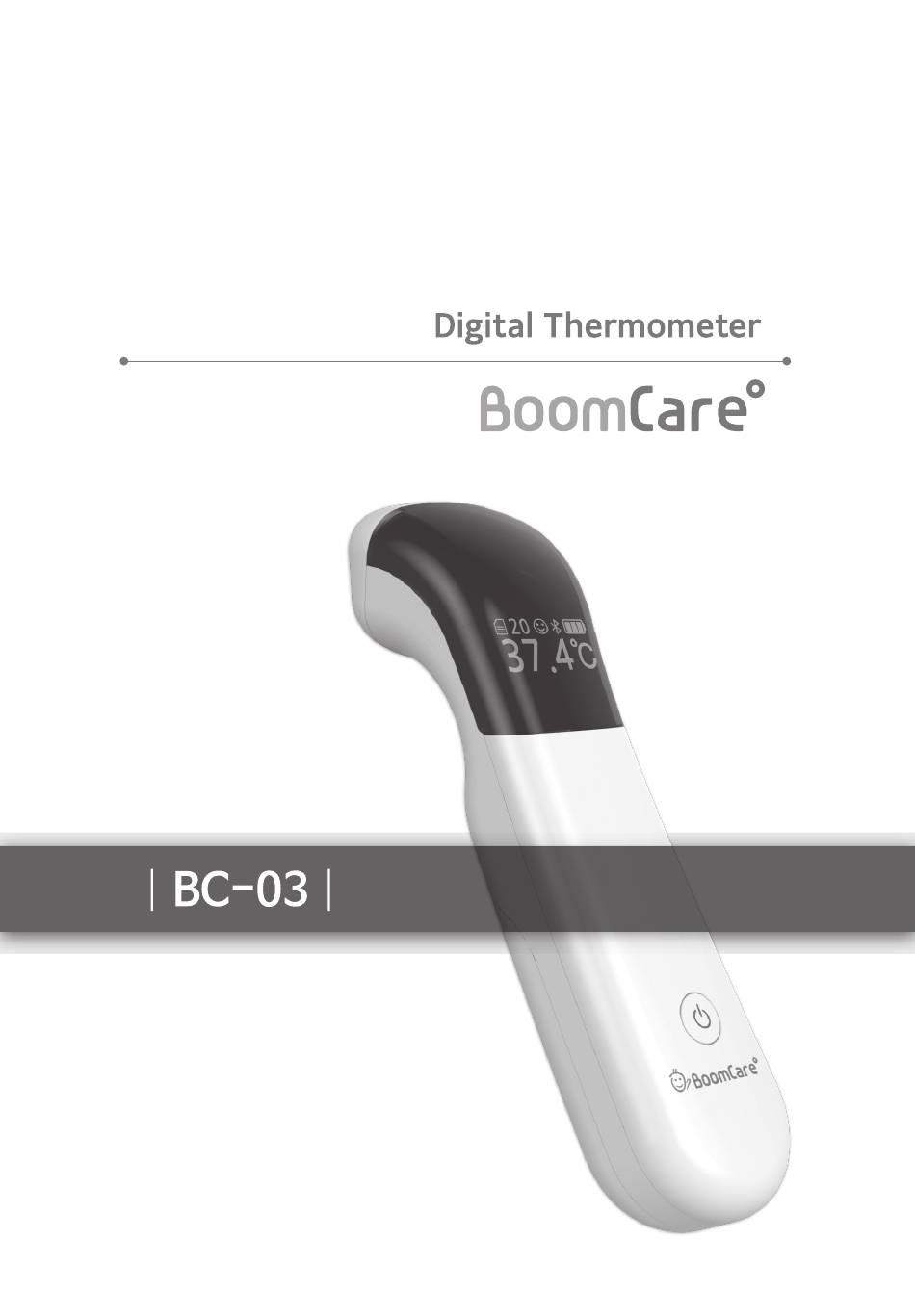

Page 1 Non-contact Infrared Thermometer...
Page 3 08. Body Temperature Measurement 09. Household Item Temperature Measurement 10. Memory Check 11. Message Display 12. Cleaning and Storage 13. Product Specifications 14. Product Warranty Carefully read this user manual before This is a user manual for BoomCare’s non-contact infrared thermometer (BC-03).
Page 4: Body Temperature
Non-contact Infrared Thermometer Non-contact Infrared Thermometer Non-contact Infrared Thermometer Non-contact Infrared Thermometer Body Temperature What is body temperature? Body temperature means the inner temperature of human body. Normal body temperature refers to healthy person’s body temperature, and it has a slight variation within a certain range.
Page 5: Product Features
Non-contact Infrared Thermometer Product Features (1) Non-contact type - BoomCare has developed this product in a non-contact type in order to relieve discomfort caused by inserting the thermometer into ear or contacting it with skin, as well as in consideration of infection.
Page 6: Precautions Before Using The Product
Non-contact Infrared Thermometer Precautions before Using the Product Carefully read this user manual before using the product. - Use this product between 16℃ and 40℃ and within 95% humidity. -Do not expose the product below -20℃ or above +50℃ and more than 95% humidity (≥95℃RH).
Page 7 Non-contact Infrared Thermometer Components Check the components of the product before using it. 1 Main body, 1 User manual, and 2 AAA batteries One main body One user manual Two AAA batteries ※ The components of the product are subject to change without prior notice.
Page 8 Non-contact Infrared Thermometer Each Unit’s Name and Function 2. Symbols on 5. Temperature the screen sensing part 3. Measuring button 1. Power button 4. Battery cover Screen composition Screen display Descriptions Temperature measuring mode Household item temperature measuring mode Unit of temperature (Celsius) Lack of battery capacity Bluetooth status...
Page 9 Non-contact Infrared Thermometer 07. Preparations before Using the Product - Use the product within the surrounding temperature between 16℃ and 40℃ and 95% humidity. - Check the battery connection status. - Maintain adequate distance from any inflammable materials or devices that may intervene in the measurement.
Page 10: Body Temperature Measurement
Non-contact Infrared Thermometer Body Temperature Measurement 1) Turn on the Power - The OLED display starts to be shown, when the power button is pressed. The product is in the body temperature measuring mode, when power is supplied. 2) Body temperature measurement - Press the measuring button placing the thermometer on the temple located 1~2cm away from the forehead above the eyebrow.
Page 11: Turn Off The Power
Non-contact Infrared Thermometer 3) Turn off the power - Power is automatically off, when the product is not in use for more than 1 minute. ※ Precautions upon body temperature measure- - When the body temperature of an infant/a child is measured, he/she may struggle, and thus distance between skin and the sensor may not be maintained constantly.
Page 12 Household Item Temperature Measurement - When you press the power button, the OLED display is on, and operation starts. The mode of the thermometer needs to be set into body temperature measuring mode, when power is on. - Double click the measurement button. The mode shifts to household item temperature measuring mode.
Page 13 Turn on the power by pressing the power button. - Execute BoomCare App on the smart device. - Connect the BC-03 device through Bluetooth activation. - The measured temperature can be saved in the smart device, after body temperature is measured.
Page 14: Message Display
Non-contact Infrared Thermometer Message Display Inspection Action Use after keeping the External temperature is product at room tempera- beyond 16℃~40℃. ture (16℃~25℃) for 30 min. In the body temperature mode, Remeasure after checking subject’s body temperature is the subject (measure the above 41℃.
Page 15: Cleaning And Storage
Non-contact Infrared Thermometer Cleaning and Storage - Because the sensor part is very sensitive, always maintain the part clean and not to be damaged for accurate body temperature measurement. - Do not soak the thermometer in a container with liquid. - Carefully clean the sensor with a methyl alcohol-soaked cotton swab.
Page 16: Product Specifications
Non-contact Infrared Thermometer Product specifications Items Descriptions Measuring mode using Infrared radiation Measurement mode and non-contact type measurement Measuring body temperature and Basic function household item temperature 16℃~40℃, lower than 95% humidity, Use environment and 700~1060 hPa (pressure) Transport and storage -20℃~50℃, lower than 95% humidity, environment and 700~1060 hPa (pressure)
Page 17 Non-contact Infrared Thermometer Item Descriptions DC3V / LR03 (AAA)×2EA Power supply More than 5,000 times Maximum of measurement Dimensions 39mm (W) ×33mm (D) × 161mm (H) Weight 100g (including two batteries) Display automatically disappears,when one minute elapses, after Power saving function measured result is displayed.
Page 18: Product Warranty
Non-contact Infrared Thermometer Product Warranty - We warrant a free repair or replacement with a new product, only when problems occur to the product, despite normal use of the product according to the user manual during the one year period from the date of purchase. - When warranty period is difficult to be checked, the warranty period from the date when three months has elapsed from the date of manufacture, applies.
Page 19 Non-contact Infrared Thermometer Skin Infrared BoomCare Item Product Thermometer BC-03 Model Date of manufacture Seller No. of manufacture Seller’s Tel Date of purchase Name Customer Info Address Address: #B-001, Startup Incubation Center, Catholic University of Korea, 57, Oryundae-ro, Geumjeong-gu, Busan, Korea...
