Summary of Contents for Newlab L458MB04T1A01

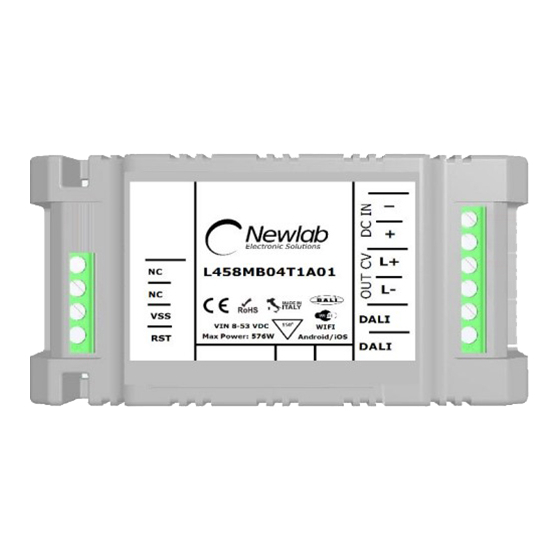

- Page 1 User Manual L458MB04T1A01 USER MANUAL L458MB04T1A01 SUBJECT INDEX: DESCRIPTION TECHNICAL SPECIFICATION DEVICE POWER SUPPLY AND CONNECTION TO THE LED MODULE DALI BUS WIRING DIAGRAM AND WIFI CONTROL VIA APP FACTORY RESET NEWLAB - User Manual L458MB04T1A01...
- Page 2 - Dimension with accessories 40x100x24.45 mm. - Works with the Google Assistant. - Compatible with Amazon Alexa Voice Assistant through the skill Newlab. - Open circuit protection. - To supply the device you have to use a SELV power supply in order to maintain the required elettrical security level.
- Page 3 User Manual L458MB04T1A01 CODE INPUT (MAX) OUTPUT N. OUTPUT MAX OUTPUT CONTROL CASE DIMENSION VOLTAGE CURRENT CHANNELS POWER INPUTS L458MB04T1A01 8-53V DC from 0A 576W at 48V DC Wifi x1 40x80 to 12A h 24.45 NEWLAB - User Manual L458MB04T1A01...
- Page 4 DEVICE POWER SUPPLY AND CONNECTION TO THE LED MODULE POWER SUPPLY CONNECTION DIAGRAM AND LED L458MB04T1A01 - FIGURE N. 1 The L458MB04T1A01 dimmer has to be powered according to the polarity showed in FIG. 1 through the DC IN (+ and -) terminals.
- Page 5 L458MB04T1A01 acts as DALI master, sending continuously DALI commands to all connected devices. DALI packets are sent in BROADCAST. DALI connectors must be usede to connect L458MB04T1A01 to DALI bus. L458MB04T1A01 is a passive device, it is necessary to connect an external DALI bus power supply unit.
- Page 6 THE BLUETOOTH LE CONNECTION DOES NOT REQUIRE PAIRING PROCEDURE Device L458MB04T1A01 requires a WIFI connection type B or G, configure your router / access point to support at least one the two connection type indicated. Example configuration: (Mode B / BG / BGN...
- Page 7 To reset the device to factory default it is necessary to short-circuit pins VSS e RST for at least 10 seconds. After factory reset it is necessary to remove short-circuit and restart the device by removing and restoring power supply. Last Manual Update 04/03/2019 NEWLAB - User Manual L458MB04T1A01...
