Marvin Sash Limiter Installation Manual

Sash Limiter Installation
Ultimate Casement Field Applied Instruction
This instruction applies to the following wood and clad
products: UCA, UCANF, UAWN, UAWNNF.
You Will Need to Supply
Safety Glasses
Phillips Screw Driver
NOTE: Numbers listed in parentheses ( ) are metric
equivalents in millimeters rounded to the nearest whole
number.

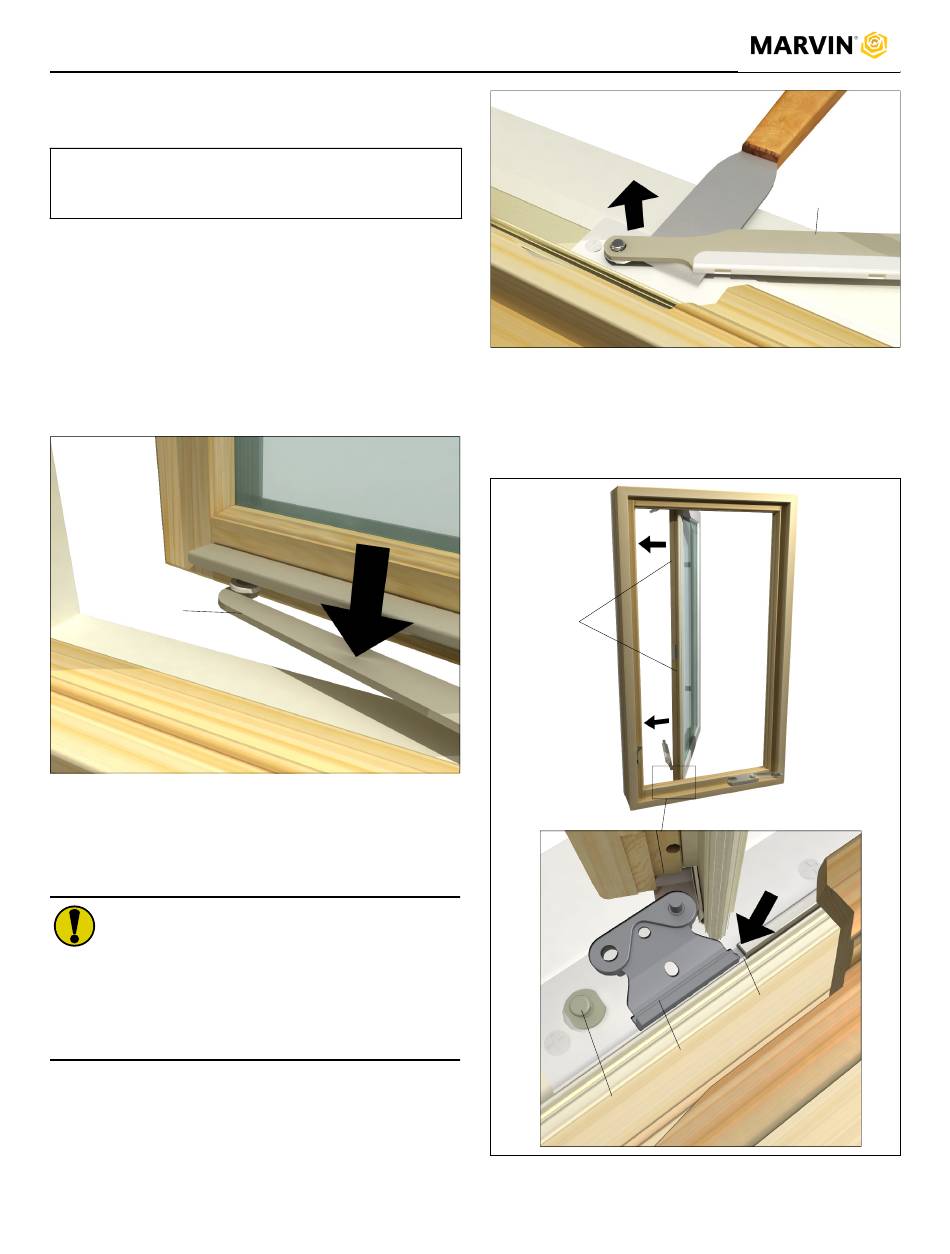

Remove the Casement Sash
1. Open the sash approximately 4"
2. With a firm grip on the sash, detach the operator
arm from the track by pushing the arm down. See
figure 1. Crank the arm back to the frame.
Operator arm
Figure 1 Detach operator arm.
3. While fully supporting the sash, detach both the top
and bottom hinge linkages from the studs. See
figure 2.
CAUTION
To avoid damage to the sash and/or personal injury, the
sash must be fully supported at all times. Do not rack
the hinges during removal, the sash stile must remain
parallel to the side jamb when removing or installing
the sash. Do not tip or rest the sash on the corners.
2019-07-29
19970160
Sash Limiter
Flat Head Screw Driver
.
(102)
Figure 2 Detach hinge linkages.
4. Remove the sash by sliding it across to the groove
in the hinge track. Both hinge shoes must be free
of the groove in the hinge track before removal.
See figure 3.
Keep the stile
of the sash
parallel with
the side jamb.
Hinge stud
Figure 3
1
Ultimate Casement Field Applied Instruction
Hinge
linkage
Groove in hinge track
Hinge shoe
Sash Limiter Installation
