MAGNETIC LOCATOR
SERVICE CENTER, SALES AND TECHNICAL SUPPORT INFORMATION
Corporate Headquarters
3251 Olcott Street
Santa Clara, CA 95054
800-446-3392
408-734-1400 Direct
408-734-1415 Fax
www.metrotech.com
sales@metrotech.com
Warranty: One year. Specifications Subject to change without notice, ISO 9001:2000 Certified. Copyright 2008. All Rights Reserved.
880B ™
Metrotech Eastern U.S. Service Center
1824 Murfreesboro Road, Ste. 104
Nashville, TN 37217
800-624-6210
615-366-7323 Direct
615-360-9855 Fax
nashville@metrotech.com
OPERATIONS MANUAL
Metrotech European Service Center
Seba KMT
Dr. Herbert Iann St. 6
96148 Baunach, Germany
+49 9544 680
+49 9544 2273 Fax
service@sebakmt.com
Rev 12/01/07
1
Advertisement
Table of Contents
Related Manuals for Metrotech 880B
Summary of Contents for Metrotech 880B
- Page 1 880B ™ OPERATIONS MANUAL MAGNETIC LOCATOR SERVICE CENTER, SALES AND TECHNICAL SUPPORT INFORMATION Corporate Headquarters Metrotech Eastern U.S. Service Center Metrotech European Service Center 3251 Olcott Street 1824 Murfreesboro Road, Ste. 104 Seba KMT Santa Clara, CA 95054 Nashville, TN 37217 Dr.
- Page 2 ISO 9001:2000 CERTIFIED Metrotech has received ISO 9001:2001 Quality Management System Certification. Metrotech adheres to the quality standard guidelines of ISO 9001:2001 and ensures quality in its design/development, production, installation, and servicing disciplines. © Metrotech Corporation 2008 Metrotech Corporation 3251 Olcott Street, Santa Clara, CA 95054 Tel: 1.800.446.3392;...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Introduction…………………………………………………………… Model 880 Equipment………………………………………………… Standard Equipment……………………………………………. Technical Specifications……………………………………….. 880B: Controls & Indicators…………………………………... Checkout Procedure………………………………………………….. Operation……………………………………………………………… “Signatures” of Different Targets……………………………… Typical Signatures and Operating Hints……………………….. Maintenance…………………………………………………………... 5.1 Battery Replacement……………………………………………….. 5.2 Service Center Information………………………………………… Copyright Notice……………………………………………………………… Warranty………………………………………………………………………... - Page 4 4-6 Large Target, Not Strongly Magnetized………………….. 10 4-7 Narrow, Vertical Target, Not Strongly Magnetized……... 10 4-8 Narrow, Vertical Target, Strongly Magnetized………….. 4-9 Sloping, Narrow Target, Not Strongly Magnetized……… 11 4-10 Sloping, Narrow Target, Strongly Magnetized………….. 11 5-1 Replacing the 880B Receiver Batteries …………………… 11...
-
Page 5: Introduction

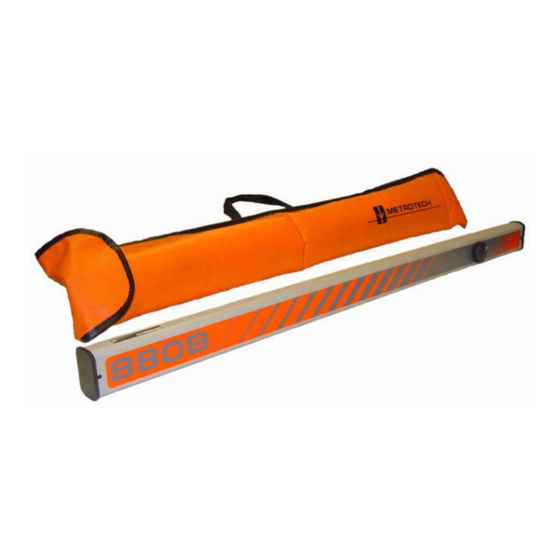

The Metrotech Model 880B Locator is a highly sensitive and discriminating instrument designed to locate only buried magnetic (iron and steel) objects, rejecting those objects that are not magnetic, i.e. aluminum cans, bottle caps, etc. The “fine tuned” sensitivity of the 880B makes it possible to locate magnetic objects at greater depths. -
Page 6: 880B: Controls & Indicators
ON/OFF/SENSITIVITY KNOB Turns instrument on and off. Adjusts the sensitivity of the 880B to the magnetic field coming from a magnetic object. Set as low as possible to avoid picking up other magnetic fields from nearby objects. -
Page 7: Checkout Procedure
ON/OFF/SENSITIVITY knob to “12 o’clock” position. The unit should display full meter deflection. 2) If neither the 880B meter nor speaker respond, replace the batteries. See Section 5.1 for battery replacement instructions. This unit has no other serviceable parts. Return to the factory for evaluation and repairs if the unit will not perform. -
Page 8: Signatures" Of Different Targets
See Figure 4-1 on page 6. If there is no indication of a signal, increase the sensitivity and search the area again. Note: For the most accurate readings we recommend that you operate the 880B within the range of 40 to 80 on the meter. “Signatures” of Different Targets The following figures illustrate typical 880B responses to common targets. -
Page 9: Typical Signatures And Operating Hints
You can develop a good sense of target depth by taking two readings from a target – one with the instrument tip at the ground surface, and one with the end of the 880B four to twelve inches above the ground. - Page 10 Figure 4-6: Large Target, Not Strongly Magnetized Figure 4-7: Narrow, Vertical Target, Not Strongly Magnetized Figure 4-8: Narrow, Vertical, Strongly Magnetized...
- Page 11 Figure 4-9: Sloping , Narrow Target, Not Strongly Magnetized Figure 4-10: Sloping, Narrow, Target Strongly Magnetized Figure 5-1: Replacing the 880B Receiver Batteries...
-
Page 12: Maintenance
The 880B is designed for rugged, outdoor use, but rough handling should be avoided. Keep the equipment dry, clean and free of grit. Store the 880B (in its carrying case) in a cool, dry place. Do not expose to excessive temperatures. -
Page 13: Copyright Notice
Metrotech warrants its equipment to be free from defects in workmanship and material under normal and proper use and service for one year from date of purchase by original user. Metrotech assumes no obligation to repair or replace equipment which has been altered or repaired by other than a Metrotech-approved procedure, been subject to misuse, misapplication, improper maintenance, negligence, or accident;...
