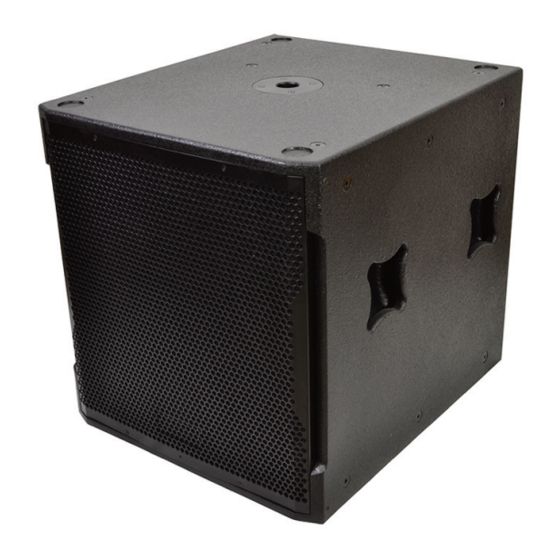

Kira K18 Active
Subwoofer
Kira K18 Instruction Manual
CAUTION - ATTENTION - VORSICHT
RISK OF ELECTRIC SHOCK- DO NOT OPEN
RISQUE D'ELECTROCUTION - NE PAS OUVRIR
STROMSCHLAGGEFAHR - NICHT OFFNEN
In Compliance with the following directives: RoHS Directive (2002/95/EU) and
WEEE directive (2002/96/EU)
If this product is no longer functional or reached the end of its usable life, please
take it to an approved recycling plant.
Advertisement
Table of Contents
Summary of Contents for Atomic Pro Kira K18
- Page 1 Kira K18 Active Subwoofer Kira K18 Instruction Manual CAUTION - ATTENTION - VORSICHT RISK OF ELECTRIC SHOCK- DO NOT OPEN RISQUE D’ELECTROCUTION - NE PAS OUVRIR STROMSCHLAGGEFAHR - NICHT OFFNEN In Compliance with the following directives: RoHS Directive (2002/95/EU) and...
- Page 2 For your safety and to ensure you make full use of all the features, please make sure you read this manual in full. Product Description: A very powerful active subwoofer delivering a massive 1800 watts of RMS power. The Kira K18 has a bespoke 18” driver and inbuilt 1800-watt Class D amplifier. The internal electronic crossover and a phase reverse switch, make this a completely selfcontained subwoofer cabinet.
- Page 3 Before beginning your initial setup check the unit has not been damaged in transit. In the event there is damage to the housing, cable or internal components contact your dealer immediately. • Kira K18 Active Subwoofer • User Manual • Power Lead...
- Page 4 ❻ ❺ ❼ ❹ ❽ ❸ ❷ ❶ ❾ ❿ ⓫ Functions Back Panel 1 Power LED: This lights when there is power to the cabinet and the speaker is turned on. 2 Signal LED: This lights when a signal is detected into inputs 1 and 2. 3 Limiter LED: This lights up if distortion is detected.
- Page 5 Input Connections Always use a good quality screened cable. Make sure soldering has been done correctly, bad solder joints can cause damage or intermittent faults to occur. Try to always use a balanced connection, if this is not possible try to keep unbalanced cables as short as possible. See the connector wiring chart below when wiring connectors.
- Page 6 Wiring Examples/Mounting Options 1: Use this arrangement for big front of house or Event PA. Set the buttons and connect the speakers as indicated, connect both sides in the same way and link off to the mixer. Set DSP: Release For Line 80 Hz Set DSP: 80 Hz...
- Page 7 Wiring Examples/Mounting Options 2: Use this arrangement for front of house in large halls or event areas. Set the buttons and connect the speakers as indicated, connect both sides in the same way and link off to the mixer. Set DSP: Release For Line 80 Hz Push For Mix...
