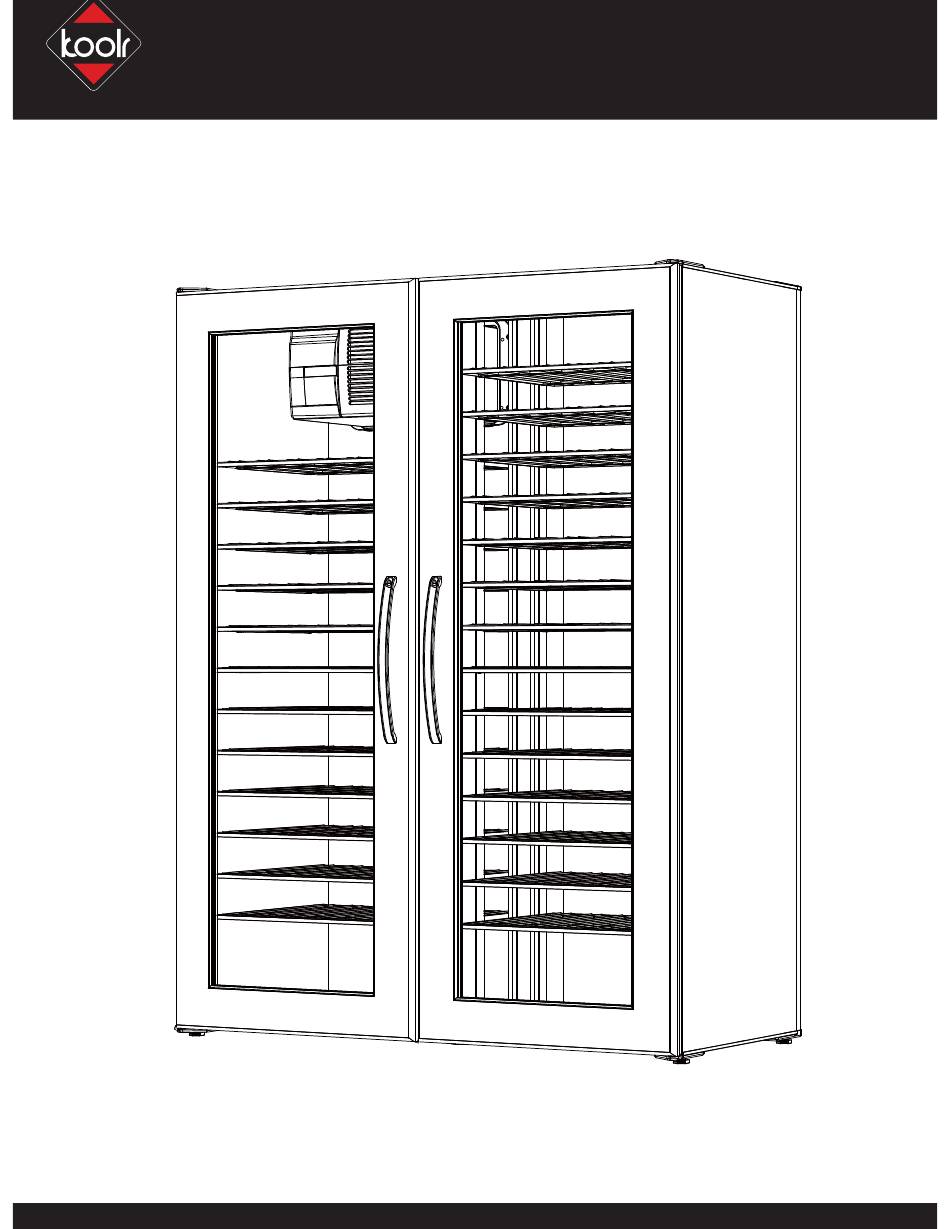

  • Page 1 WineKoolR 250 500...
  • Page 2 READ THE "USE AND CARE GUIDE" BEFORE YOU START LOCATING YOUR WINE CELLAR Provide 2 Never locate your wine cellar outdoors or in an area with extremes of temperature and humidity. These units humid (above 50%R.H.). Outlet power must be a DEDICATED separately fused, grounded, 15 Amp 110 - 120 V line or 7.5 Amp - for 240 V models (CHECK BOX OR SERIAL NUMBER LABEL ON UNIT FOR YOUR LINE VOLTAGE REQUIREMENTS).

  • Page 3: Connector Plates

    HARDWARE HINGES VENT CONNECTOR PLATES Allen Cooling Unit Bolts in cooling unit box Hinge Washer Legs in cooling unit box Model 250 only ! Screws x 2 Wall Ties x 2 Anchors x 2 Hooks Power supply Wrench Brace Handle and Lock Spacer Shelves x 26...
  • Page 4 INSERT CORNER (LEFT ONLY)
  • Page 6 TO TAB LIFT PUSH OR TAP AT BOTTOM SPACER...
  • Page 7 INSTALL BOTTOM 2. REST BOTTOM ON SPACERS 4. PULL OUT SPACERS...
  • Page 8 INSTALL BOTTOM CONNECTOR PLATES WARNING! Connector plates can be removed ONLY as described on page 19. HAND PRESS IN ALL CONNECTOR PLATES IN BOTTOM TAP IN CONNECTORS TIGHTLY (NO GAP) WITH CLOSED HAND OR RUBBER MALLET SCREW IN ALL LEGS NO GAP! LEAVE 1/4”...
  • Page 9 INSTALL TOP A: INSERT TOP VENT CHECK ORIENTATION VENT OUTSIDE PRESS FOR FIRM LOCK (OPPOSITE SIDE)

  • Page 10: Repeat Step

    INSTALL TOP REPEAT STEP ON PAGE 7 FOR TOP DO NOT INSTALL HINGES YET! WARNING! HINGES can be removed ONLY as described on page 19. INSTALL TOP CONNECTOR PLATES NO HINGE NO HINGE...
  • Page 11 INSTALL CENTER POSTS...
  • Page 12 PLACE WASHERS FIRST INSTALL TOP HINGES WASHER ON BOTTOM HINGES ONLY NOTE: DOOR GASKET WILL RELAX IN A FEW DAYS ASSURING A GOOD SEAL Door is made of very tough PLEXIGLAS, but it can be scratched. Handle and clean with care!
  • Page 13 INSTALL BRACES 5 AND 6  (HELPER NEEDED TO HOLD CABINET STEADY) ALIGN TO TABS, PUSH DOWN BRACES 5 (× 2) AND 6 RU  (× 2)

  • Page 14: Install Shelves

    INSTALL SHELVES TAB REFERENCE SHORTER FRONT LONGER START AT MIDDLE PRESS IN SIDES CLICK SHELF OVER TABS SHELF C E L L A R B O T T O...
  • Page 15 PLACE COOLING UNIT IN CABINET LEVEL TO OPENING CLEAR OPENING STRAIGHTEN AND PUSH THROUGH GET HELPER TO PULL FROM INSIDE AND LIFT UNIT LEVEL DURING MUST COOLING UNIT SEAL ! FASTENING CHECK AFTER TIGHTENING !!! VENT IN COOLING TIGHT! UNIT BOX.
  • Page 16 Connect the power to the power supply(F) Stick the power supply to the top panel Connect the low voltage plug to the voltage Door latch: DOWN (Hinge on Left) UP (Hinge on Right)
  • Page 17 LEVEL CELLAR LEVEL DOORS ADJUST OUTER LEGS TO LEVEL DOORS HINGES ARE PRE-SET ADJUSTMENTS SHOULD NOT BE REQUIRED...
  • Page 18 BRACE TO WALL - for 250 models ONLY RISK OF INJURY ! IF CABINET IS NOT FULLY LOADED IN THE BOTTOM IT CAN BE TOP HEAVY. TO AVOID INJURY OR DAMAGE ALWAYS BRACE TO WALL ! WALL MATERIALS VARY, USE APPROPRIATE ANCHORS FOR YOUR APPLICATION. DO NOT PRESS IN FULLY DRILL USING 1/4”...

  • Page 19: Connector Plate

    REMOVE COOLING UNIT AND SHELVES LAY CELLAR DOWN FULLY TIGHTEN LEGS PRY OFF ALL CONNECTOR PLATES WITH FLAT SCREWDRIVER REUSE LEG FOR TOP HINGE AND CENTER REAR ! " # # " " % # & '( ) !* + TIGHTEN LEGS PRY OFF FULLY...

  • Page 20: Controller Operation

    (wait one minute) KEYS Calibration option of the temperature sensor. Display of actual temperature by request. Digital temperature sensor. Settings are stored in memory for power failures. delay of 1 minute the fan will start, followed by the compressor within the next minute. The unit will cycle ON/OFF based on the temperature reading.

  • Page 21: Important Note

    MAXIMUM CAPACITIES AND LOADING TIPS Maximum capacities and sample loading arrangements for WineKoolR wine cellars are illustrated below. Standard Burgundy and Bordeaux bottles are best arranged with necks facing out; some taller bottles may need to be arranged neck to neck. Never stack bottles more than two rows high on a shelf; all shelves must be installed as directed. Avoid placing bottles directly in front of the cooling unit’s circulating fan for more uniform temperature in cabinet.
  • Page 22 Although each WineKoolR cooling unit has been carefully tested at every stage of manufacture, occasional problems arise, the majority of which are due to rough or careless handling during shipping or installation. Other issues may occur due to improper cabinet assembly, power interruption or surge, low line voltage (less than your unit rating of 105V or 240V), or failure to clean the unit regularly (see illustration below).

  • Page 23: What The Warranty Does Not Cover

    For detailed information consult the Warranty section of the "USE and CARE" guide! If your WineKoolR™ cooling unit or cabinet fails to perform as designed within one year of the date of purchase, KoolR Products™ warrants that, upon your request, it will be repaired or replaced, at our option, during the one year warranty period. WineKoolR™...
  • Page 24 WineKoolR 250 500...
