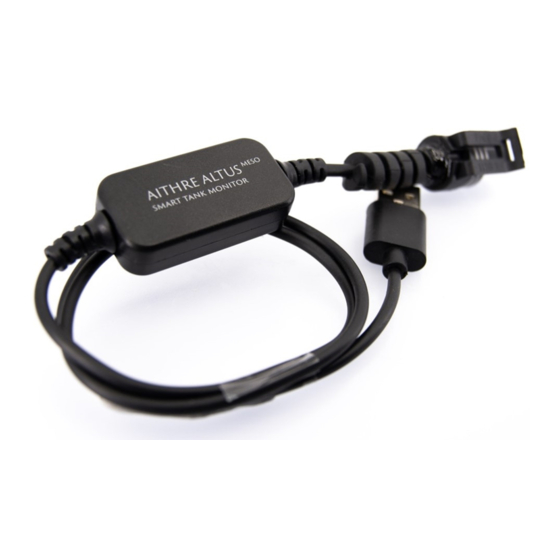

Thank you for purchasing the Aithre Altus Meso, wireless portable oxygen tank pressure monitor. Please
follow the following instructions to safely install your Altus Meso and begin monitoring tank pressure on
your iOS device.
WARNINGS
1. DO NOT USE ANY FITTINGS FROM THE LOCAL HARDWARE STORE OR THAT ARE NOT RATED FOR
LESS THAN 5000 PSI AS THEY COULD FRACTURE OR EXPLODE UNDER THE HIGH PRESSURE OF
YOUR OXYGEN TANK. BRASS RETAIL FITTINGS ARE TYPICALLY ONLY ABLE TO WITHSTAND 100-
300 PSI.
2. REMOVAL OF YOUR PRESSURE GAUGE DURING INSTALLATION REQUIRES YOUR TANK TO BE
EMPTY AND UNDER NO PRESSURE PER THE INSTRUCTIONS.
3. Some tanks may require an extension M-F 1/8 NPT fitting in order for the Aithre tee fitting to clear
the tank during installation. Contact Aithre to purchase a high pressure extension.
4. Pressure rating of the Aithre Altus is 0-2500 PSI with a transient rating of up to 5000 PSI.
5. Use oxygen grade thread tape during installation as instructed.
INSTALLATION
6. EMPTY YOUR OXYGEN TANK OR YOUR GAUGE WILL BE A PROJECTILE THAT COULD CAUSE SEVERE
INJURY OR DEATH.
7. Unscrew your existing pressure gauge to expose a hole.
ALTUS MESO INSTALLATION MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aithre ALTUS MESO
Summary of Contents for Aithre ALTUS MESO
- Page 1 EMPTY AND UNDER NO PRESSURE PER THE INSTRUCTIONS. 3. Some tanks may require an extension M-F 1/8 NPT fitting in order for the Aithre tee fitting to clear the tank during installation. Contact Aithre to purchase a high pressure extension.
- Page 2 DO NOT LEAVE YOUR EXISTING PRESSURE GAUGE OFF OF THE TEE FITTING AS THE TEE FITTING MUST BE CLOSED ON ALL PORTS. 10. Screw the Altus Meso pressure gauge onto the tee fitting using oxygen grade thread tape.
- Page 3 Test fill with oxygen and check for slow leak using soapy water. 12. Connect the Altus Meso USB wire to the Altus Meso pressure gauge. THE QUICK RELEASE CONNECTION OF THE USB WIRE TO THE ALTUS PRESSURE GAUGE CAN SAFELY BE REMOVED UNDER PRESSURE AS IT IS MERELY AN ELECTRICAL COUPLING.
- Page 4 16. If using the Aithre Shield EX 3 for wireless Oxgyen PSI on your Dynon, G3x, Advanced, or MGL avionics, keep the Aithre Connect App running in the foreground or background to reinforce the wireless signal between the Altus and the EX 3.
- Page 5 By using this product (e.g. oxygen tank pressure monitor) you agree that you have read, understood and accepted these installation instructions. This is not a life saving device and should not be used as your sole means of monitoring tank pressure. Always use the manual gauge for backup. The ALTUS does not allow you to regulate oxygen flow.
- Page 6 Additional Product Information Additional User Manual Information Contains Transmitter Module This equipment has been tested and found to comply FCC ID: A8TBM71S2 with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Contains FCC ID: A8TBM71S2 interference in a residential installation.
