ELECTRIC MIXER R6121-1

EAN CODE : 3276000620518

Traduction de la version originale du mode d'emploi / Traducción de las Instrucciones originales / Tradução das Instruções Originais / Traduzione delle istruzioni originali / Μετάφραση

τωνπρωτότυπωνοδηγιών / Tłumaczenie instrukcji oryginalnej /

/ Traducerea instruc iunilor originale / Original Instructions

Table of Contents

Need help?

Do you have a question about the R6121-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADEO Services R6121-1

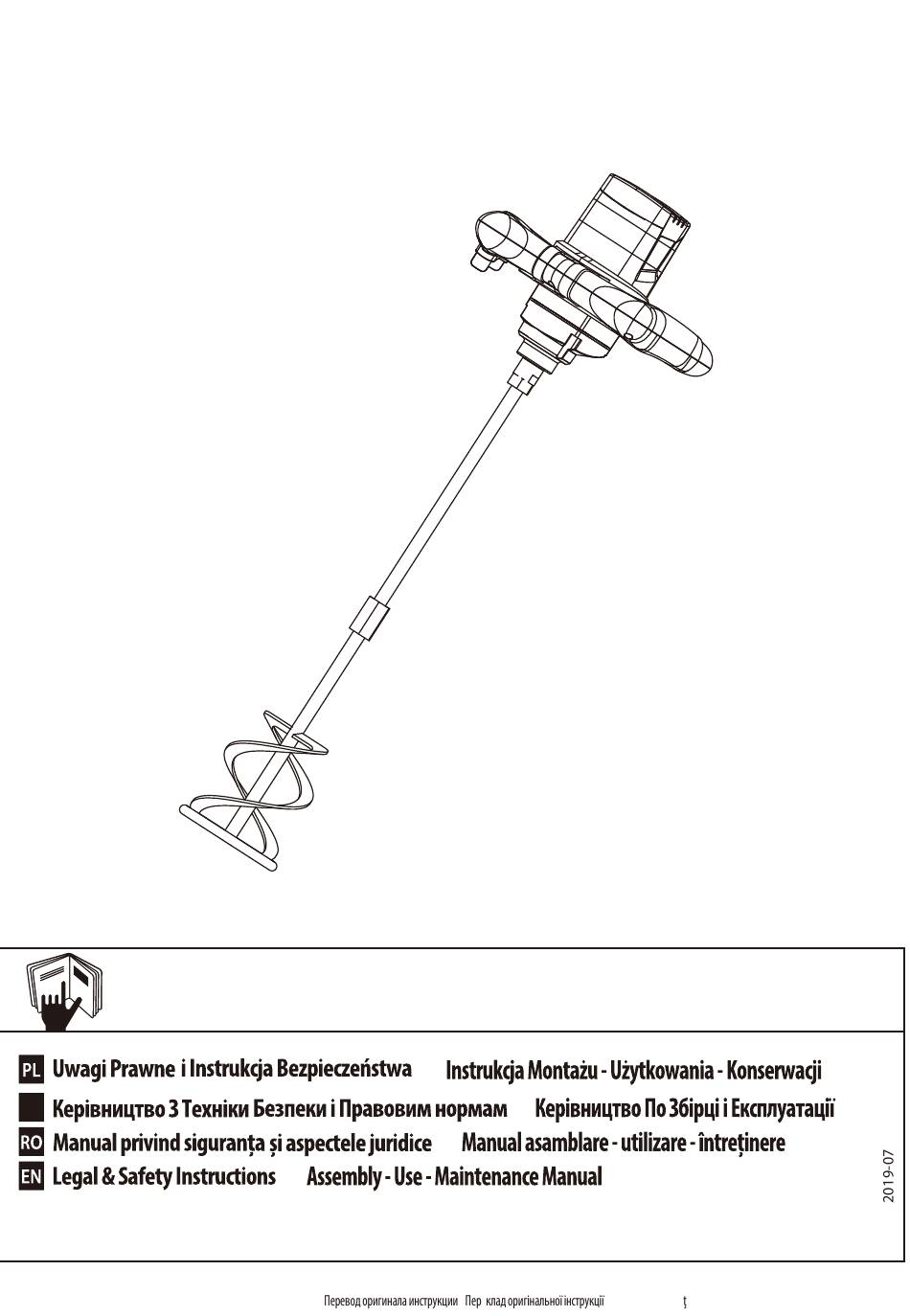

Page 1 ELECTRIC MIXER R6121-1 EAN CODE : 3276000620518 Traduction de la version originale du mode d’emploi / Traducción de las Instrucciones originales / Tradução das Instruções Originais / Traduzione delle istruzioni originali / Μετάφραση τωνπρωτότυπωνοδηγιών / Tłumaczenie instrukcji oryginalnej / / Traducerea instruc iunilor originale / Original Instructions...
Page 2 A x1 B x1 C x1 D x2...
Page 3 Attention danger / Atención: Peligro / Atenção perigo / Attenzione pericolo / Προσοχή κίνδυνο / Uwaga niebezpieczeństwo / ! / Aten ie, pericol / Caution danger Observez / Atención / Aviso / Osservare / Προσέξτε / Przestrzegać / / Respecta i / Observe Raccordé...
Page 4 Montage Montaje Montagem Montaggio Συναρ ολόγηση Montaż Ansamblu Assembly...
Page 5 Utilisation Utilización Utilização χρήση użytkowania utilizare...
Page 6: Mantenimiento
Entretien Mantenimiento Serviço Manutenzione Συντήρηση Konserwacja Între inere Maintenance...
Page 7 Hivernage Durante el invierno Preparação para o inverno Rimessaggio Przechowywanie Αποθήκευση το χει ώνα Păstrare pe perioada iernii Winter storage...
Page 8: Intended Use
SYMBOLS WARNING - To reduce the risk of injury, user must read instruction manual. Use these operating instructions to familiarize yourself with the product, the proper use and the safety instructions. Keep these operating instructions in a safe place for future uses. For safety reasons, children and young people under the age of 16, as well as people not familiar with these operating instructions, may not use this product.
Page 9: Safety Instructions
SAFETY INSTRUCTIONS General power tool safety warnings WARNING Read all safety warnings instructions, illustrations and speci cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"in the warnings refers to your mains-operated(corded)power tool or battery-operated ( cordless)power tool.
Page 10: Personal Safety
SAFETY INSTRUCTIONS 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the in uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
Page 11 MIXER SAFETY INSTRUCTION e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a ect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
Page 12: Technical Data
DESCRIPTION Switch Handle Back cover Gear housing Shaft Mixing paddle Wrench TECHNICAL DATA Model R6121-1 Power Input 1200W Voltage 220-240V~50Hz Number of Gears No-Load-Speed 0-680min Protection/ Class of Protection Classe II Thread for xing the Shaft Mixing Paddle (φ max.) 120mm :92dB(A);...
Page 13: Before Use
TECHNICAL DATA NOTE: -The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test method and may be used for comparing one tool with another; -The declared vibration total value and the declared noise emission values may also be used in a preliminary assessment of exposure.
Page 14: Operation
BEFORE USE Stirrer •Lock the welded nut of the paddle with one mounting spanner and loosen the stirrer anticlockwise with another mounting spanner gripping the welded nut. •Loosen the welded nut anticlockwise and remove the stirrer from the paddle. •Attach a new paddle/stirrer as required. Speed dial •Rotate the product speed dial to change the speed of operation.
Page 15: Maintenance
OPERATION •The stirrer will come to a stop during operation if the material is too thicker! Switch the product o , lift the stirrer out of the material and inspect the material before using the product again! A blocked stirrer may cause overheating of the motor. Hold the product rmly during operation. •Do not let the stirrer touch the bucket! This can cause damage to the stirrer and bucket! MAINTENANCE DANGER! Risk of injury due to electric shock.
Page 16: Troubleshooting
TROUBLE SHOOTING DANGER! Risk of injury due to electric shock. Warning! Before any trouble shooting, switch o the tool and remove the plug from the socket. Problems Probable causes Corrective actions Not connected to power supply Connect to power supply Product does not Power cord or plug is defective Connect to power supply...
Page 17: Disposal And Recycling
DISPOSAL AND RECYCLING CAUTION! This product has been marked with a symbol relating to removing electric and electronic waste. This means that this product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European WEEE Directive.
Page 19 Dexcription Qty No. Dexcription screw paper washer back cover needle bearing brush set circlp carbon brush 627 bearing brush cover secondary gear set housing big gear bearing 607 bearing palte circlp screw circlp capacitance 6002 bearing stator gear housing screw screw rotor insulation oil seal...
Page 20: Ec Declaration Of Conformity
IEC 62321-7-2:2017 IEC 62321-8:2017 Serial No.:2076780005041901280703 Last two numbers of CE printing: 19 Richie PERMAL Supplier Quality Leader Authorized representative of Julien Ledin, ADEO Quality Leader 31/07/19 ADEO Services 135 Rue Sadi Carnot - CS 00001 59790 RONCHIN – France...
Page 21 ADEO Services - 135 Rue Sadi Carnot - CS 00001 59790 RONCHIN - France RUS 000 , 141031, , .1, , KZ қ., қ, 1, 141031, « », 17 , . 04201, Made in P.R.C. 2019 Warranty: 2 years...
